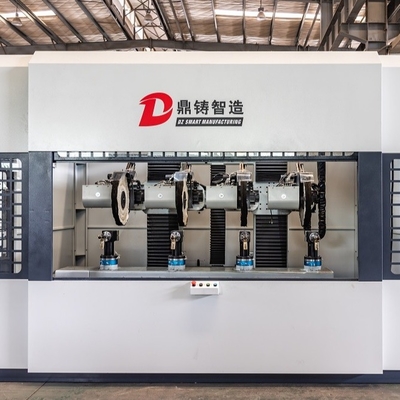

High Output 2 Stations Automatic Polishing Machine for Robotic Surface Polishing
| Brand Name: | DZ |
| Model Number: | NC-62 |
| MOQ: | 1 set |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |
2 Stations Automatic Polishing Machine
,Robotic Surface Automatic Polishing Machine
,16.5KW CNC Polishing Machine
High Output Two Stations Automatic Polishing Machine
Product Description:
The CNC Polishing Machine is a state-of-the-art surface polishing machine that offers robotic polishing capabilities, computerized precision and smooth surface finish. It is designed for polishing and finishing a variety of surfaces and materials. With the CNC Polishing Machine, you can achieve a highly precise, smooth, and uniform surface finish, ideal for a wide range of applications, including industrial, automotive, aircraft, and marine. It is perfect for large scale production and can significantly reduce the time and costs associated with polishing and finishing.
Features:
- Product Name: CNC Polishing Machine
- Motor Power: 16.5KW
- Weight: 4000Kg
- Special Features: Robotic Surface Polishing Machine
Technical Parameters:
| Code | Item | Specifications |
| 1 | Dimensions (L*W*H) | 3000*3100*2900 |
| 2 | Machine Power | 16.5KW |
| 3 | Rated Voltage | 380V |

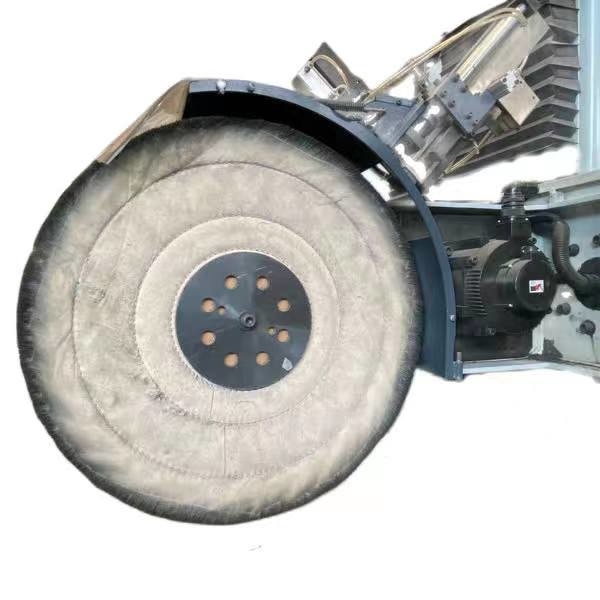

| 4 | Max. Diameter of polishing wheel | 600mm |
| 5 | Min. Diameter of polishing wheel | 400mm |
| 6 | X-Axis travel (mm) | 1000mm |
| 7 | Y-Axis travel (mm) | 900mm |
| 8 | Z-Axis travel (mm) | 700mm |
| 9 | U-Axis travel (mm) | +90°~-60° |
| 10 | V-Axis travel (mm) | ±360° |
| 11 | W-Axis travel (mm) | ±360° |
| 12 | Max.speed X axis | 20m/min |
| 13 | Max.speed Y axis | 20m/min |
| 14 | Max.speed Z axis | 20m/min |
| 15 | Max.speed U axis | 30°/sec. |
| 16 | Max.speed V axis | 30°/sec. |
| 17 | Max.speed W axis | 30°/sec. |
Applications:
The CNC Polishing Machine is a high-precision polishing machine that is perfect for a variety of industries. It is a fully automated machine that is capable of polishing materials such as metals, plastics, and ceramics with high accuracy. It is powered by a 380V/50Hz power supply and features a polishing pad with a diameter of 200mm and a polishing thickness of 0-50mm. This high-precision polishing machine is perfect for industries such as automotive, aerospace, and medical, as it can deliver consistent and accurate results.
Customization:
Support and Services:
CNC Polishing Machine technical support and services include:
- Providing technical advice and guidance on the use of the machine.
- Developing and providing software upgrades for the machine.
- Providing preventive maintenance services.
- Repairing and/or replacing defective parts.
- Providing on-site customer service.
- Providing technical training.
- Providing product documentation.
