Brand Name: | DZ |
Model Number: | HZ-360 |
MOQ: | 1 set |
Packaging Details: | wood |
Payment Terms: | L/C, T/T, Western Union |

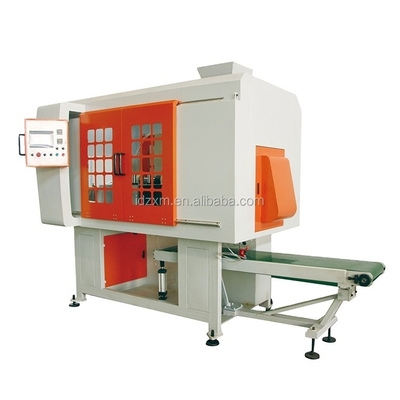

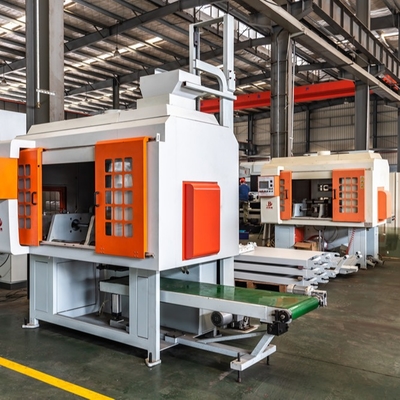

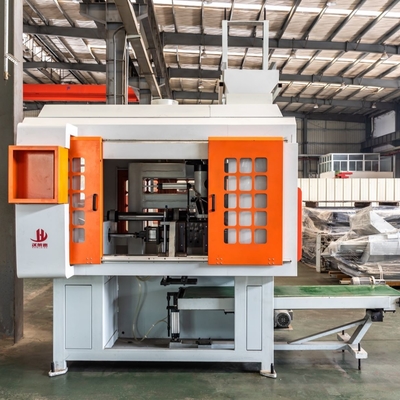

Industry Sand Core Shooting Machine For Metal Casting Production
Excellent Quality Foundry Industry Sand Core Shooting Machine For Metal Casting Production
Ⅰ CHARACTERISTIC

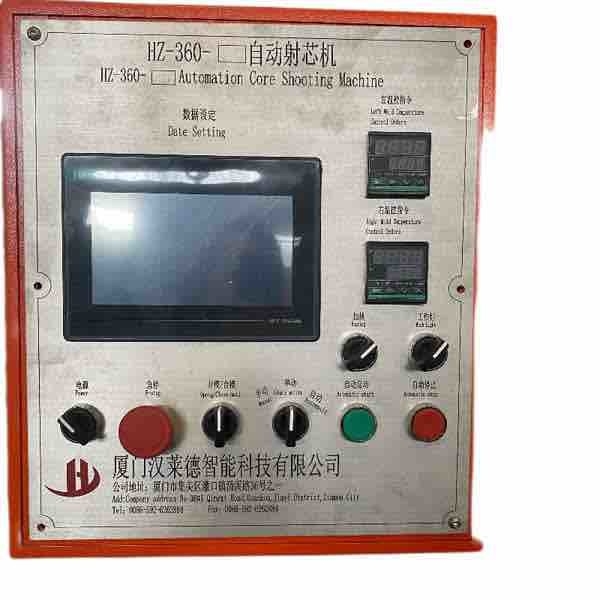

1. Manual, semi-automatic and fully automatic.
2. The core pulling function allowing for the special requirements of the die.
3. The shooting port is 70 degrees to the sand, away from the high temperature area, so that the perforation is easy to clean manually.
4. Mould cleaning function.

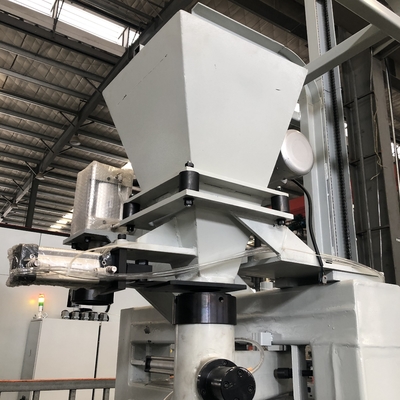

5. Automatic sand feeding.
6. Automatic unloading.
7. Flexible mould installation.
Ⅱ TECHNICAL PARAMETERS
Code | Item | Specification |
1 | Max. Weight of Sand Core | 8kg |
2 | Max. Size of Core Box ( L x W x H) | (450*330*220)mm |
3 | Heating Plate ( L x W) | (400*300)mm |
4 | Heating Power | 9.6kw |
5 | Downward Stroke of Ejection Head | ≤30mm |
6 | Stroke of Mold Opening | ≤300mm |
7 | Max. Stroke of Core Remove | 150mm |
8 | Conveyor ( L x W x H) | (2200*450*100)mm |
9 | Total Power | 13.2kw |
10 | Rising Angle of Conveyor | 2°~4° |
11 | Speed of Transportation | 72mm/s |
12 | Machine Size ( L x W x H) | (3500*1480*3400)mm |
13 | Speed of Lift (Single Time) | 35s |
14 | Weight of Lift ( Single Time) | 10kg |
15 | Total Weight | 2000kg |
16 | Hydraulic pressure | 50Kg/cm² |
Q: could you please arrange the installation and commissioning ?
A: Yes , we could and the buyer pay the charge
Q: could you arrange the production education?
A: Yes , we could and the buyer pay the charge
Q:How long the guarantee?
A: one year and charge for repair the whole life.
Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.
