Customized Automatic Stainless Steel Brass Handle Metal Belt Polishing Machine Buffing Equipment
| Brand Name: | DZ |
| Model Number: | HLD-50E |
| MOQ: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C,T/T,Western Union |
Detail Information
Place of Origin:
China
Certification:
CE
Weight:
4000KG
Voltage:
380V/50Hz
Condition:
New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation
Use:
Machining, Deburring, Grinding, Polishing
Type:
Angle Polisher
Warranty:
1 Year
Function:
Machining, Deburring, Grinding, Polishing
Delivery Time:
30 days
Supply Ability:
30sets / month
Highlight:
Metal Automatic CNC Polishing Machine
,Brass Handle CNC Polishing Machine
,380v Metal Polishing Machine
Product Description

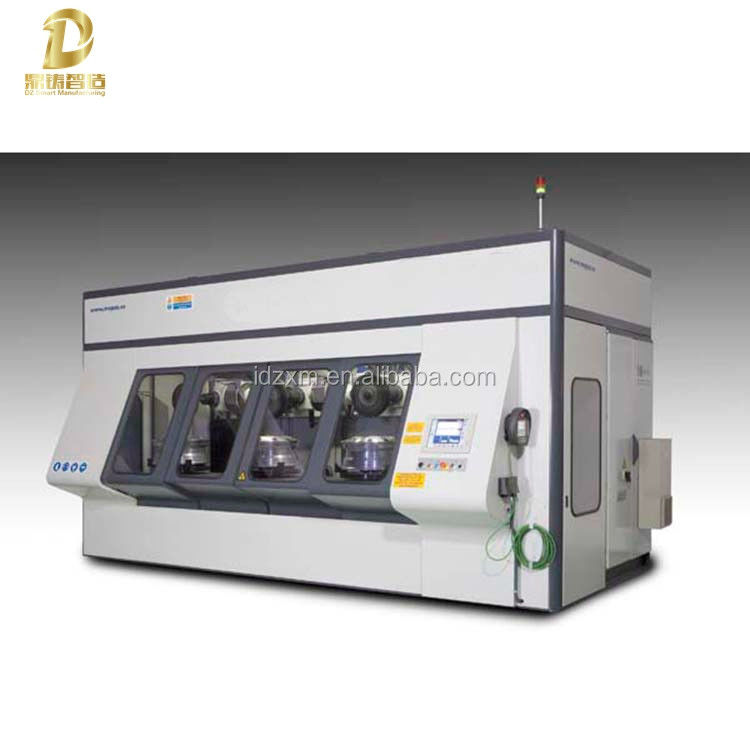

Customized Automatic Stainless Steel Brass Handle Metal Belt Polishing Machine
This advanced buffing equipment delivers precision polishing for stainless steel, brass, and metal handle components with automated efficiency and customizable operation.
Machine Characteristics
- Exclusive polishing system with 4 manipulators featuring 6-axis rotary systems
- Multiple stations enable simultaneous operations for high flexibility and production efficiency
- PROMAX motion control technology from Italy ensures stable performance and high control accuracy
- Teaching programming with portable handheld device for manual mode simulation and automatic operation
- Automatic polishing pressure and wear compensation control
- Linear speed compensation when cloth wheel diameter reduces
- Programmable wax application with choice of solid or liquid compound
- Fully digital control with capacity for 50 program storage
- Touch panel with CN/EN language display for easy parameter setting and troubleshooting
Four-Station Automatic Polishing Advantages
- Precision polishing with uniform quality and no part deformation
- High production capacity - four stations work simultaneously
- One-time programming completes polishing for four workpieces
- Fully automatic waxing system
- Quick fixture and polishing mop replacement
- Reduced fixture requirements and consumable consumption
- Temperature-controlled polishing system
- Interactive teach system for easy programming
- Complete polishing in any angle and position
- High profitability - single operator can handle multiple machines
Technical Specifications
| Code | Item | Specifications |
|---|---|---|
| 1 | Dimensions (L*W*H) | 4400*3400*2900 |
| 2 | Machine Power | 35KW |
| 3 | Rated Voltage | 380V |
| 4 | Max. Diameter of polishing wheel | 600mm |
| 5 | Min. Diameter of polishing wheel | 400mm |
| 6 | X-Axis travel (mm) | 1100 |
| 7 | Y-Axis travel (mm) | 900 |
| 8 | Z-Axis travel (mm) | 700 |
| 9 | U-Axis travel (mm) | ±90° |
| 10 | V-Axis travel (mm) | ±360° |
| 11 | W-Axis travel (mm) | ±360° |
| 12 | Max.speed X axis | 20m/min |
| 13 | Max.speed Y axis | 20m/min |
| 14 | Max.speed Z axis | 20m/min |
| 15 | Max.speed U axis | 30°/sec. |
| 16 | Max.speed V axis | 30°/sec. |
| 17 | Max.speed W axis | 30°/sec. |
Product Gallery
Frequently Asked Questions
Can you arrange installation and commissioning?
Yes, we can arrange installation and commissioning at the buyer's expense.
Can you arrange production education?
Yes, we can arrange production education at the buyer's expense.
How long is the guarantee?
One year guarantee with lifetime repair service (charged after warranty period).
What is the lead time and delivery time?
Large cargo: 15-25 working days depending on quantity, delivered according to agreed schedule.
