Bathroom Hardware Automatic CNC Polishing Machine for Metal Surface Polishing

Product Details:
Place of Origin: China
Brand Name: DZ
Certification: CE
Model Number: NC-64
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wood
Delivery Time: 2week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30sets / month

Detail Information

Condition: New Warranty: 1 Year
After-sales Service: Engineers Available To Service Machinery Overseas Usage: Metal Surface Polishing
Polishing Wheel Size: 400mm-600mm
High Light:

Hardware Automatic CNC Polishing Machine

,

Bathroom CNC Polishing Machine

,

CNC Metal Surface Polishing Machine

Product Description

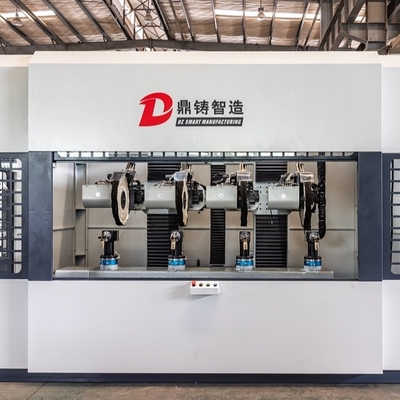

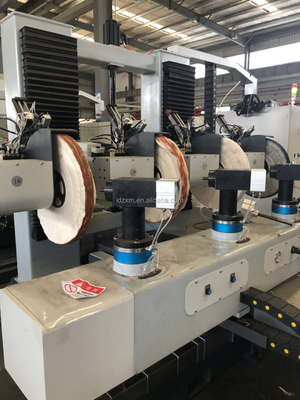

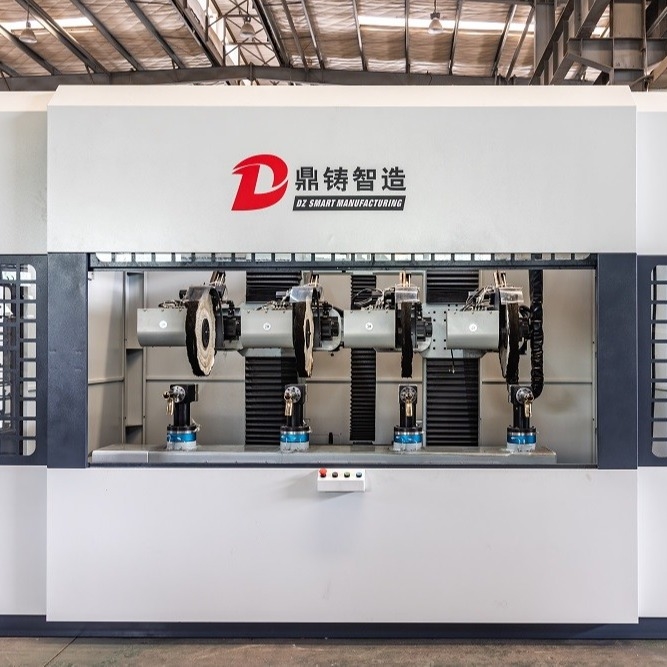

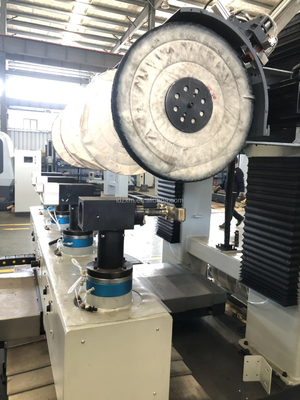

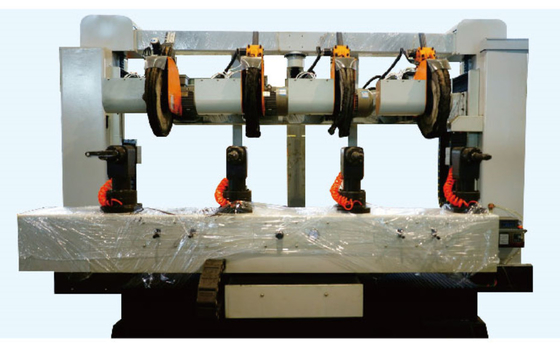

Bathroom/Hardware Automatic CNC Polishing Machine for Metal Surface Polishing



ⅠCHARACTERISTIC OF AUTOMATIC POLISHING MACHINE

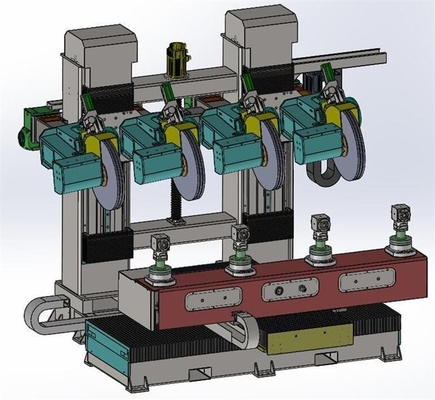

1. The automatic polishing machine is an exclusive polishing system consisting of 4 manipulators with 6 Axis rotary systems; Multiple stations' simultaneous operations ensure high flexibility and high production efficiency.



2. The control system adopts PROMAX motion control technology from Italy, with stable performance and high control accuracy.



3. Programming method: teaching programming, with the portable handed device, contains manual mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-set parameters program.



4. Polishing pressure and wear compensation control performance: When the polishing cloth wheel is worn out, the system can detect that the torque has become smaller and automatically the compensation in all directions.



5. Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed and compensation;



6. Program setting of add polishing wax: free setting of wax spraying time and frequency according to the characteristics of the product. choice of a slid compound or liquid compound.



7. Fully digital control, it can store 50 programs. Programs can be saved and recalled at any time.



8. CN/EN language display on Touch Panel. It is to set all parameters for an easy operation; fault codes display and alarm pages for quick troubles shooting and repair.



Ⅱ ADVANTAGES OF FOUR-STATIONS AUTOMATIC POLISHING MACHINE



Precision polishing.

-Uniform polishing quality without deformation of the processed parts.



-High production. Four working stations work simultaneously, and with one-time programming, the machine can finish the polishing and buffing jobs of four workpieces at one time.



-Full auto, waxing system;



-Quick replacement of the fixtures.



-Quick replacement of the polishing mops.



-Cost-reduction in the number of fixtures.



-Important reduction in mops and polishing compounds consumption.



-Polishing system avoiding excessive temperature of the parts during the working process.



-Quick and easy programming. Interactive Teach System.



-Finish the polishing/buffing jobs in any angle and position;



-High profitability and amortization. One single operator can handle several machines by synchronizing the working cycles.



Ⅲ TECHNICAL PARAMETERS



Code Item Specifications
1 Dimensions (L*W*H) 4400*3400*2900
2 Machine Power 35KW
3 Rated Voltage 380V
4 Max. Diameter of polishing wheel 600mm
5 Min. Diameter of polishing wheel 400mm
6 X-Axis travel (mm) 1100
7 Y-Axis travel (mm) 900
8 Z-Axis travel (mm) 700
9 U-Axis travel (mm) ±90°
10 V-Axis travel (mm) ±360°
11 W-Axis travel (mm) ±360°
12 Max.speed X axis 20m/min
13 Max.speed Y axis 20m/min
14 Max.speed Z axis 20m/min
15 Max.speed U axis 30°/sec.
16 Max.speed V axis 30°/sec.
17 Max.speed W axis 30°/sec.

















































Bathroom Hardware Automatic CNC Polishing Machine for Metal Surface Polishing 0Bathroom Hardware Automatic CNC Polishing Machine for Metal Surface Polishing 1Bathroom Hardware Automatic CNC Polishing Machine for Metal Surface Polishing 2Bathroom Hardware Automatic CNC Polishing Machine for Metal Surface Polishing 3Bathroom Hardware Automatic CNC Polishing Machine for Metal Surface Polishing 4Bathroom Hardware Automatic CNC Polishing Machine for Metal Surface Polishing 5Bathroom Hardware Automatic CNC Polishing Machine for Metal Surface Polishing 6

Bathroom Hardware Automatic CNC Polishing Machine for Metal Surface Polishing 7Bathroom Hardware Automatic CNC Polishing Machine for Metal Surface Polishing 8Bathroom Hardware Automatic CNC Polishing Machine for Metal Surface Polishing 9Bathroom Hardware Automatic CNC Polishing Machine for Metal Surface Polishing 10

FAQ

Q: could you please arrange the installation and commissioning ?
A: Yes , we could and the buyer pay the charge



Q: could you arrange the production education?
A: Yes , we could and the buyer pay the charge



Q:How long the guarantee?
A: one year and charge for repair the whole life.



Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.
