DZ Gravity Casting Machine 5.5KW For Brass Ferrous Alloy

Product Details:
Place of Origin: China
Brand Name: DZ
Certification: CE
Model Number: HZ-450
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wood
Delivery Time: 30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30sets/per munth

Detail Information

Net Weight: 1750KG Total Power: 5.5KW
Hydraulic Oil: 163L Machine Dimension: 2250*2160*1560mm
Condition: New
High Light:

Ferrous Alloy Gravity Casting Machine

,

Brass Gravity Casting Machine

,

Gravity Die Casting Machine 5.5KW

Product Description

DZ Gravity Casting Machine for Brass/Ferrous Alloy Storing The Die Casting Operation Programs



CHARACTERISTIC



1) the circuit is controlled by PLC, the data is set by touch screen and all hydraulic components are imported.



2) It is suitable for gravity die casting of brass and ferrous alloy.



3) It can be frontal casting, side casting, twice casting and mixed casting.



4) The cooling time of the mold can be adjusted separately.



5) It facilitates the decomposition, combination and cleaning of dies.



6) It has two functions manual and automatic circulation, the counter can be preset, to record the output of each shift.



7) There is a die adjustment space to facilitate the application of different dies, and reduce the requirements for the die size.



8) The machine can store the die casting operation programs and set the password accordingly.



Ⅱ TECHNICAL PARAMETERS




1 MAX MOULD SIZE 450mm
2 Max Mould Weight 130KG
3 Longest Merger Distance ≤250mm
4 Hydraulic Pressure 40-60KPa
5 Side Casting Angie 0º-90º
6 Frontal Casting Angle 0º-110º
7 Hydraulic Oil 163L
8 Total Power 5.5KW
9 Installing Top Core Device 20mm travel

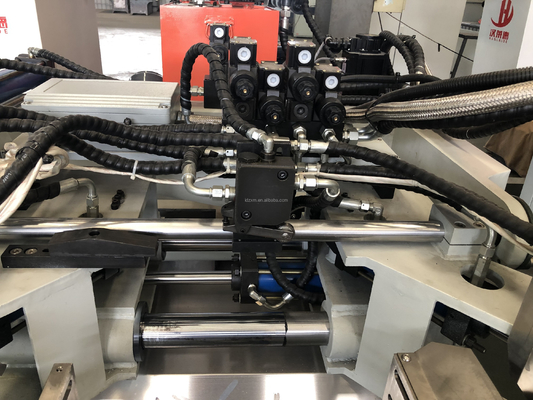

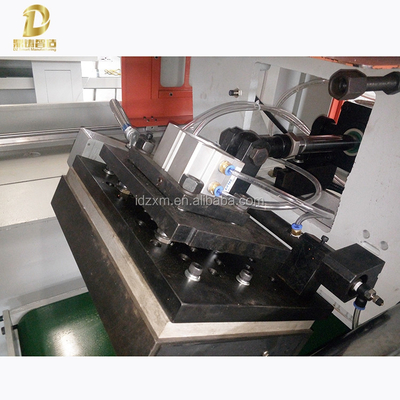

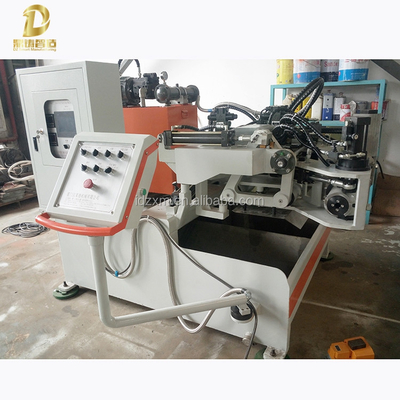

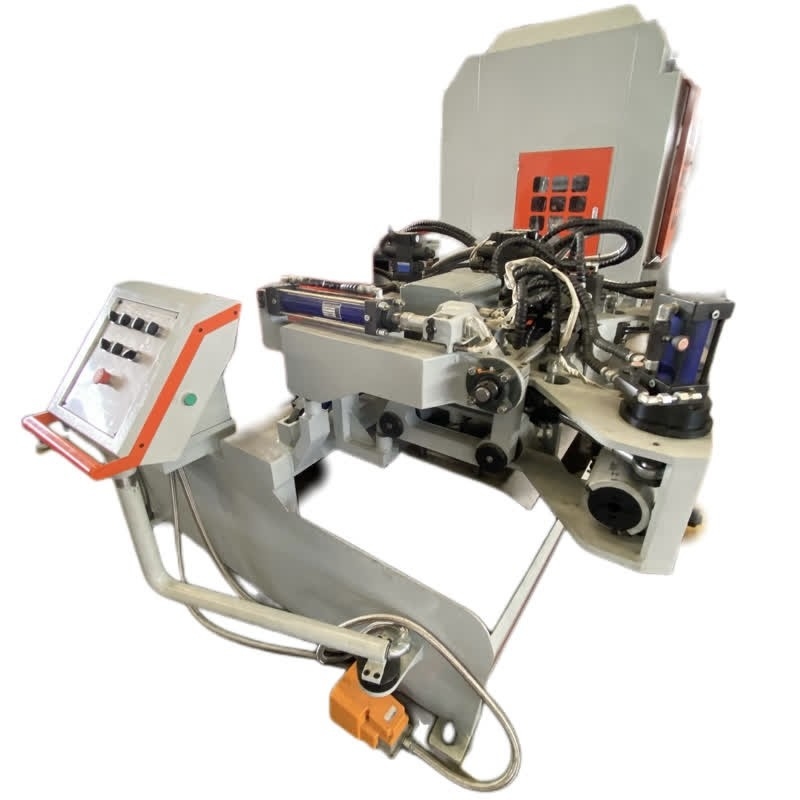

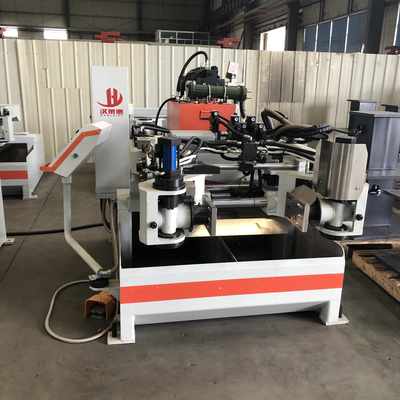

DZ Gravity Casting Machine 5.5KW For Brass Ferrous Alloy 0DZ Gravity Casting Machine 5.5KW For Brass Ferrous Alloy 1DZ Gravity Casting Machine 5.5KW For Brass Ferrous Alloy 2DZ Gravity Casting Machine 5.5KW For Brass Ferrous Alloy 3DZ Gravity Casting Machine 5.5KW For Brass Ferrous Alloy 4DZ Gravity Casting Machine 5.5KW For Brass Ferrous Alloy 5DZ Gravity Casting Machine 5.5KW For Brass Ferrous Alloy 6

DZ Gravity Casting Machine 5.5KW For Brass Ferrous Alloy 7DZ Gravity Casting Machine 5.5KW For Brass Ferrous Alloy 8DZ Gravity Casting Machine 5.5KW For Brass Ferrous Alloy 9DZ Gravity Casting Machine 5.5KW For Brass Ferrous Alloy 10DZ Gravity Casting Machine 5.5KW For Brass Ferrous Alloy 11



FAQ

Q: Could you please arrange the installation and commissioning?
A: Yes, we could and the buyer paid the charge.



Q: Could you arrange the production education?
A: Yes, we could and the buyer paid the charge.



Q: How long is the guarantee?
A: One year and charge for repair the whole life.



Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.
