Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | DZ |
| Certification: | CE |
| Model Number: | HZ-450 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wood |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Net Weight: | 1750KG | Total Power: | 5.5KW |
|---|---|---|---|
| Hydraulic Oil: | 163L | Machine Dimension: | 2250*2160*1560mm |
| Condition: | 100%New | Warranty: | 1 Year |
| High Light: | Automatic Circulation Die Casting Machine,Ferrous Gravity Die Casting Machine,Die Casting Machine For Brass |
||
Product Description

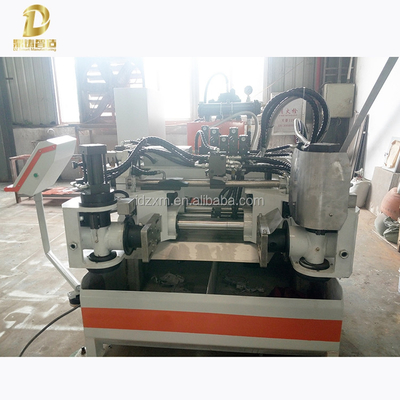

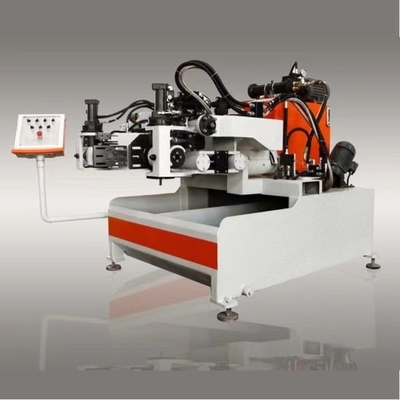

Manual and Automatic Circulation Gravity Die Casting Machine For Brass And Ferrous Alloy
Ⅰ CHARACTERISTIC

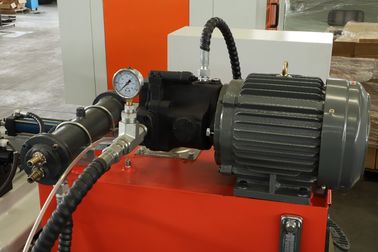

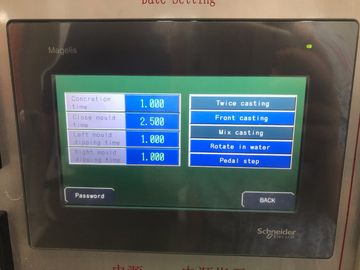

1) the circuit is controlled by PLC, the data is set by touch screen and all hydraulic components are imported.
2) It is suitable for gravity die casting of brass and ferrous alloy.
3) It can be frontal casting, side casting, twice casting and mixed casting.
4) The cooling time of the mold can be adjusted separately.
5) It facilitates the decomposition, combination and cleaning of dies.
6) It has two functions manual and automatic circulation, the counter can be preset, to record the output of each shift.
7) There is a die adjustment space to facilitate the application of different dies, and reduce the requirements for the die size.
8) The machine can store the die casting operation programs and set the password accordingly.
Ⅱ TECHNICAL PARAMETERS
| 1 | MAX MOULD SIZE | 450mm |
| 2 | Max Mould Weight | 130KG |
| 3 | Longest Merger Distance | ≤250mm |
| 4 | Hydraulic Pressure | 40-60KPa |
| 5 | Side Casting Angie | 0º-90º |
| 6 | Frontal Casting Angle | 0º-110º |
| 7 | Hydraulic Oil | 163L |
| 8 | Total Power | 5.5KW |
| 9 | Installing Top Core Device | 20mm travel |
Q: Could you please arrange the installation and commissioning?
A: Yes, we could and the buyer paid the charge.
Q: Could you arrange the production education?
A: Yes, we could and the buyer paid the charge.
Q: How long is the guarantee?
A: One year and charge for repair the whole life.
Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.
