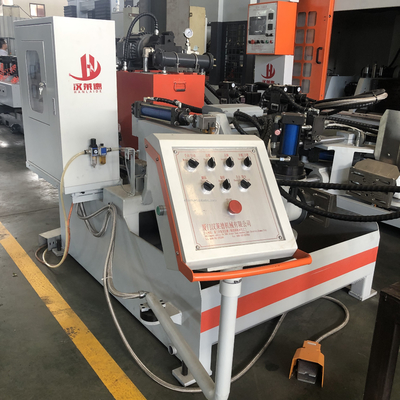

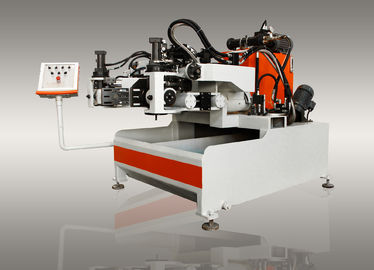

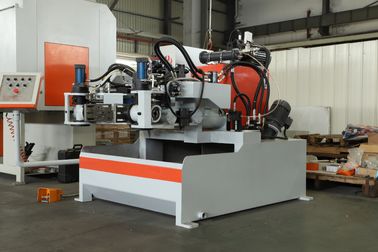

High Efficiency Gravity Die Casting Machine For Sanitary

Product Details:
Place of Origin: China
Brand Name: DZ
Certification: CE
Model Number: HZ-450
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wood
Delivery Time: 2week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets per Month

Detail Information

Condition: New Warranty: 1 Year
Name: Brass Die Casting Machine Raw Material: Brass Copper Zinc Aluminum Steel Iron Alloy
Machine Dimension: 2250*2160*1560mm
High Light:

Sanitary Gravity Die Casting Machine

,

Copper Gravity Die Casting Machine

,

40kpa Brass Die Casting Machine

Product Description

Low Requirements For The Die Size And High Efficiency Gravity Die Casting Machine For Sanitary



CHARACTERISTIC



1) the circuit is controlled by PLC, the data is set by touch screen and all hydraulic components are imported.



2) It is suitable for gravity die casting of brass and ferrous alloy.



3) It can be frontal casting, side casting, twice casting and mixed casting.



4) The cooling time of the mold can be adjusted separately.



5) It facilitates the decomposition, combination and cleaning of dies.



6) It has two functions manual and automatic circulation, the counter can be preset, to record the output of each shift.



7) There is a die adjustment space to facilitate the application of different dies, and reduce the requirements for the die size.



8) The machine can store the die casting operation programs and set the password accordingly.



Ⅱ TECHNICAL PARAMETERS




1 MAX MOULD SIZE 450mm
2 Max Mould Weight 130KG
3 Longest Merger Distance ≤250mm
4 Hydraulic Pressure 40-60KPa
5 Side Casting Angie 0º-90º
6 Frontal Casting Angle 0º-110º
7 Hydraulic Oil 163L
8 Total Power 5.5KW
9 Installing Top Core Device 20mm travel


High Efficiency Gravity Die Casting Machine For Sanitary 0High Efficiency Gravity Die Casting Machine For Sanitary 1High Efficiency Gravity Die Casting Machine For Sanitary 2High Efficiency Gravity Die Casting Machine For Sanitary 3High Efficiency Gravity Die Casting Machine For Sanitary 4High Efficiency Gravity Die Casting Machine For Sanitary 5

Ergonomic Brass Faucet Body Low Pressure Die Casting Machine 125KWErgonomic Brass Faucet Body Low Pressure Die Casting Machine 125KWErgonomic Brass Faucet Body Low Pressure Die Casting Machine 125KW

FAQ

Q: Could you please arrange the installation and commissioning?
A: Yes, we could and the buyer paid the charge.



Q: Could you arrange the production education?
A: Yes, we could and the buyer paid the charge.



Q: How long is the guarantee?
A: One year and charge for repair the whole life.



Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.
