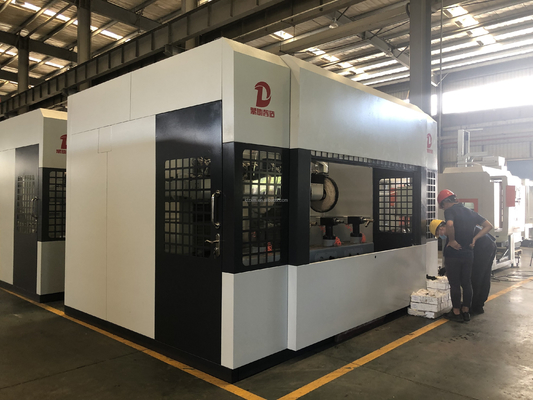

PROMAX Controlled Four Stations Automatic Polishing Machine For Brass Handles Faucet

Product Description

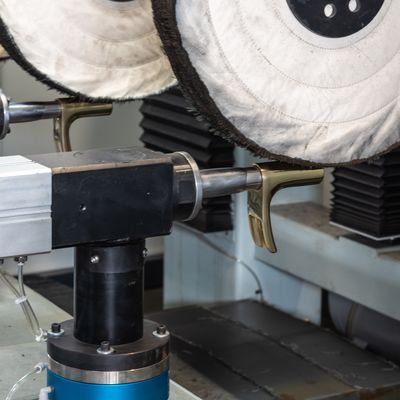

PROMAX Controlled Four-stations Automatic Polishing Machine For Brass Handles/ Faucet





ⅠCHARACTERISTIC OF AUTOMATIC POLISHING MACHINE

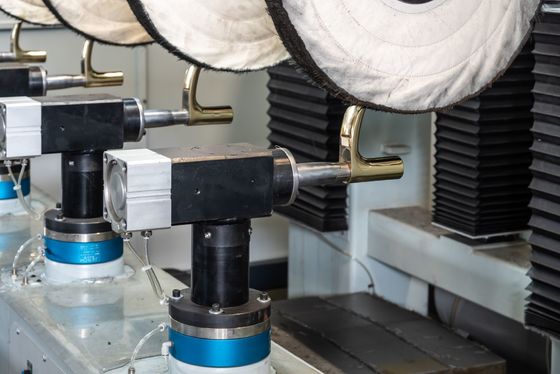

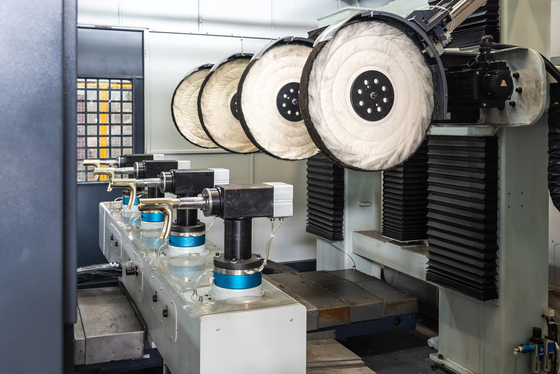

1. The automatic polishing machine is an exclusive polishing system consisting of 4 manipulators with 6 Axis rotary systems; Multiple stations' simultaneous operations ensure high flexibility and high production efficiency.



2. The control system adopts PROMAX motion control technology from Italy, with stable performance and high control accuracy.



3. Programming method: teaching programming, with the portable handed device, contains manual mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-set parameters program.



4. Polishing pressure and wear compensation control performance: When the polishing cloth wheel is worn out, the system can detect that the torque has become smaller and automatically the compensation in all directions.



5. Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed and compensation;



6. Program setting of add polishing wax: free setting of wax spraying time and frequency according to the characteristics of the product. choice of a slid compound or liquid compound.



7. Fully digital control, it can store 50 programs. Programs can be saved and recalled at any time.



8. CN/EN language display on Touch Panel. It is to set all parameters for an easy operation; fault codes display and alarm pages for quick troubles shooting and repair.



Ⅱ ADVANTAGES OF FOUR-STATIONS AUTOMATIC POLISHING MACHINE



Precision polishing.

-Uniform polishing quality without deformation of the processed parts.

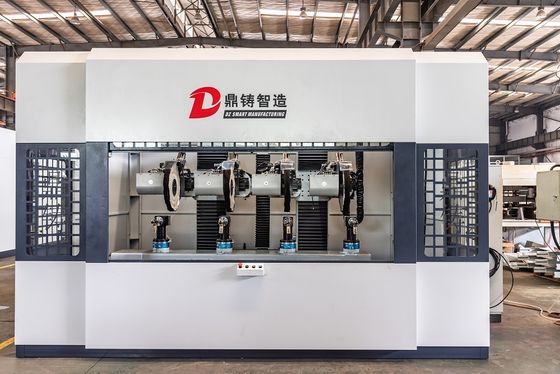

-High production. Four working stations work simultaneously, and with one-time programming, the machine can finish the polishing and buffing jobs of four workpieces at one time.



-Full auto, waxing system;



-Quick replacement of the fixtures.



-Quick replacement of the polishing mops.



-Cost-reduction in the number of fixtures.



-Important reduction in mops and polishing compounds consumption.



-Polishing system avoiding excessive temperature of the parts during the working process.



-Quick and easy programming. Interactive Teach System.



-Finish the polishing/buffing jobs in any angle and position;



-High profitability and amortization. One single operator can handle several machines by synchronizing the working cycles.



Ⅲ  TECHNICAL PARAMETERS



Code	Item	Specifications
1	Dimensions (L*W*H)	4400*3400*2900
2	Machine Power	35KW
3	Rated Voltage	380V
4	Max. Diameter of polishing wheel	600mm
5	Min. Diameter of polishing wheel	400mm
6	X-Axis travel (mm)	1100
7	Y-Axis travel (mm)	900
8	Z-Axis travel (mm)	700
9	U-Axis travel (mm)	±90°
10	V-Axis travel (mm)	±360°
11	W-Axis travel (mm)	±360°
12	Max.speed X axis	20m/min
13	Max.speed Y axis	20m/min
14	Max.speed Z axis	20m/min
15	Max.speed U axis	30°/sec.
16	Max.speed V axis	30°/sec.
17	Max.speed W axis	30°/sec.
