Name: Sanitary Fittings Gravity Die Casting Machine With Imported Hydraulic Components
Brand: Xiamen DingZhu Intelligent Equipment Co.,Ltd
SKU: HZ-450
Availability: InStock

Brand Name:	DZ
Model Number:	HZ-450
MOQ:	1 set
Packaging Details:	wood
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Condition:

New

Warranty:

1 Year

Net Weight:

1750KG

Machine Dimension:

2250*2160*1560mm

Technology:

Gravity Die Casting Technology

Usage:

Foundry Pieces Production

Supply Ability:

30sets/per month

Highlight:

CE Sanitary Fittings Die Casting Machine

450mm Mould Die Casting Machine

Product Description

Gravity Die Casting Machine With Imported Hydraulic Components For Sanitary Fittings

Ⅰ CHARACTERISTIC

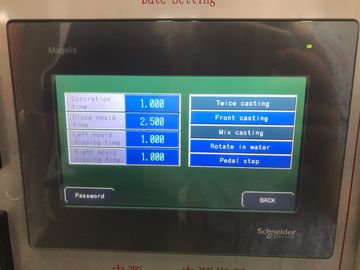

1) the circuit is controlled by PLC, the data is set by touch screen and all hydraulic components are imported.

2) It is suitable for gravity die casting of brass and ferrous alloy.

3) It can be frontal casting, side casting, twice casting and mixed casting.

4) The cooling time of the mold can be adjusted separately.

5) It facilitates the decomposition, combination and cleaning of dies.

6) It has two functions manual and automatic circulation, the counter can be preset, to record the output of each shift.

7) There is a die adjustment space to facilitate the application of different dies, and reduce the requirements for the die size.

8) The machine can store the die casting operation programs and set the password accordingly.

Ⅱ TECHNICAL PARAMETERS


1	MAX MOULD SIZE	450mm
2	Max Mould Weight	130KG
3	Longest Merger Distance	≤250mm
4	Hydraulic Pressure	40-60KPa
5	Side Casting Angie	0º-90º
6	Frontal Casting Angle	0º-110º
7	Hydraulic Oil	163L
8	Total Power	5.5KW
9	Installing Top Core Device	20mm travel

Sanitary Fittings Gravity Die Casting Machine With Imported Hydraulic Components 0

Sanitary Fittings Gravity Die Casting Machine With Imported Hydraulic Components 6

Sanitary Fittings Gravity Die Casting Machine With Imported Hydraulic Components 7

FAQ

Q: Could you please arrange the installation and commissioning?
A: Yes, we could and the buyer paid the charge.

Q: Could you arrange the production education?
A: Yes, we could and the buyer paid the charge.

Q: How long is the guarantee?
A: One year and charge for repair the whole life.

Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.
