Easy Operation Robotic Buffing Machine With 1.5KW Stepper Motor
| Brand Name: | DZ |
| Model Number: | HLD-50E |
| MOQ: | 1 |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |
Robotic Buffing Machine 1.5KW
,Stepper Motor Robotic Buffing Machine
,380V Auto Buffing Machine

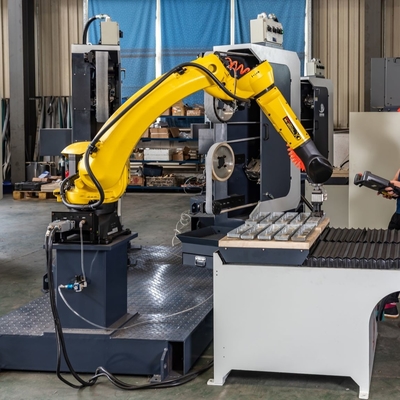

Robotic cell for Grinding Faucets

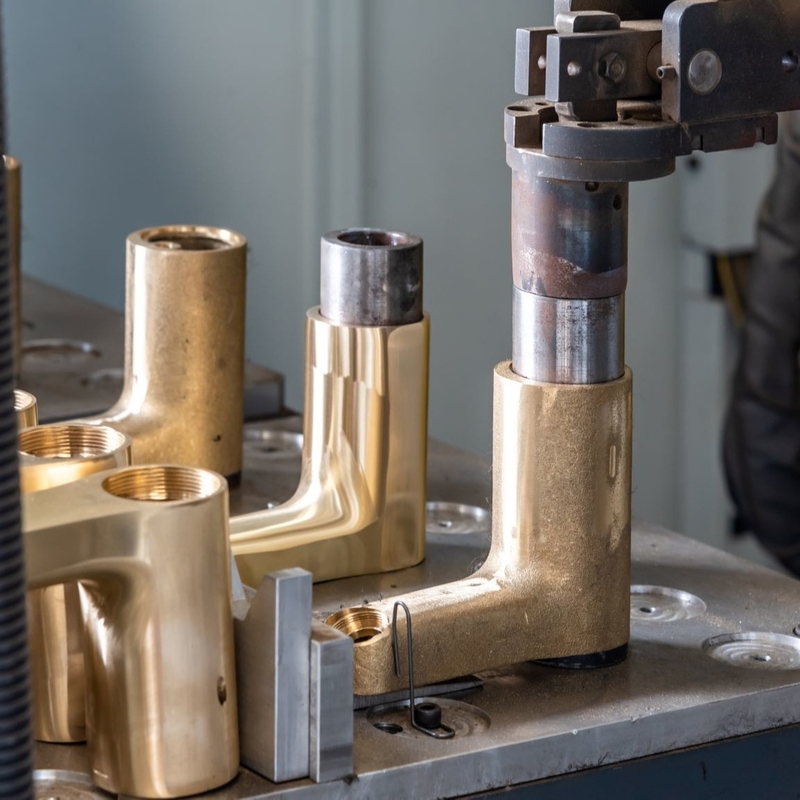

Typical products to process: Brass casted faucets, zamak
levers, zamak faucets, shower heads and any sanitary ware
Compact cell, reduced space required for installation
Customizable Layout: Various robot brand Integration
Multiple applications possible: Machining, Deburring, Grinding
Polishing, Satin
Customized HMI: Easy Adjustment
High Adaptability: Multiple part geometry processing
Calibration System: High Process Repeatability
Complex geometries processing
Up to 100% Surface Grinding Processing
II.CHARACTERISTIC
1 FUNAC robotic M-20Ia/35M
2 Program modular, programming easiness with self-learning system.
3 Programming method:demonstrator programming ,with protable handed device, contains manually mode to simulate the workmanship grinding and record the track; automatically operating model is available with pre-settled parameters program.
4 Full digital control, the program can be saved and called at any time.

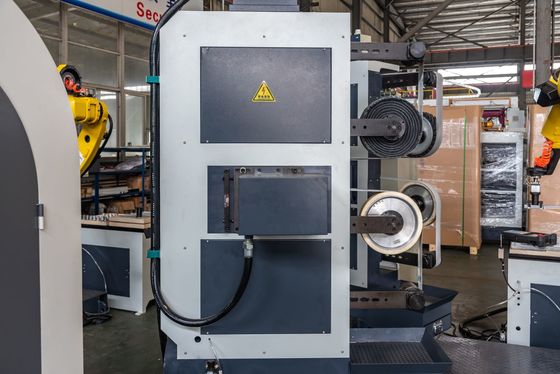

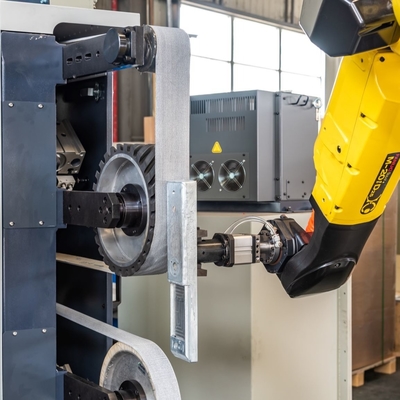

5 Rotary sand belt machine and multi - grade sandpaper grinding process can be completed at one time.
6 High precision, high efficiency.
LOCA SHOW
- Automatic deflection fixtures
- Polishing process in 3 dimensions
- Automatic two way workpiece panel, Alternate using workpiece panel.
- One person can operate several machines,Reduce the labor costs
- Humanistic control system,Humanistic design human-machine interface,Handhold teach controller,With more simple,Convenient and fast space mouse programming.
- Imported grinding contact wheel.
| # | Item | 12G | 20G | 35G-I | 35G-II | 50G | 210G |
| 1 | Robot Cell | FUNAC | FUNAC | FUNAC | FUNAC | FUNAC | FUNAC |
| 2 | Model | M-10iD/12 | M-20iA | M-20iA/35M | M-20iA/35M | M-70iC/50E | R-2000iC_210F |
| 3 | Voltage | 380V | 380V | 380V | 380V | 380V | 380V |
| 4 | Power | 9KW | 9KW | 13KW | 19KW | 20.5KW | 20.5KW |
| 5 | Grinding Machine Qty. | 2 | 2 | 2 | 3 | 3 | 3 |
| 6 | Sand Belt Qty. | 4 | 4 | 4 | 6 | 6 | 6 |
| 7 | Sand belt Dimensions | 3000mm | 3000mm | 3600mm/4000mm | 3600mm/4000mm | 3600mm/4000mm | 3600mm/4000mm |
| 8 | Feed Table | 1 | 1 | 1 | 1 | 1 | 1 |
Q: could you please arrange the installation and commissioning ?
A: Yes , we could and the buyer pay the charge
Q: could you arrange the production education?
A: Yes , we could and the buyer pay the charge
Q:How long the guarantee?
A: one year and charge for repair the whole life.
Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.
