Easy Operation Robotic Buffing Polishing Grinding Machine Easy Adjustment

Product Details:
Place of Origin: China
Brand Name: DZ
Certification: CE
Model Number: HLD-50E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wood
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30sets / month

Detail Information

Weight: 4000KG Voltage: 380V/50Hz
Condition: 100%New After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation
Use: Machining, Deburring, Grinding, Polishing Type: Angle Polisher
Warranty: 1 Year Name: Grinding Robotic
Function: Machining, Deburring, Grinding, Polishing
High Light:

Robotic Buffing Polishing Grinding Machine

,

380V Polishing Grinding Machine

,

Robotic CNC Polishing Machine

Product Description

Easy Operation Robotic Buffing/Polishing/Grinding Machine Easy Adjustment

I. Features

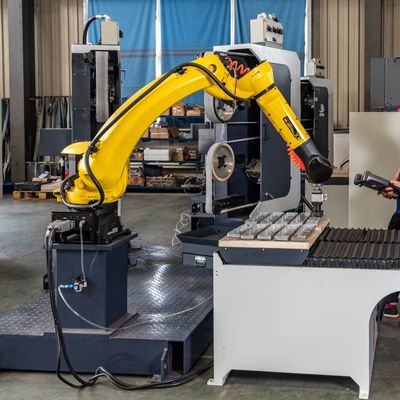

Robotic cell for Grinding Faucets

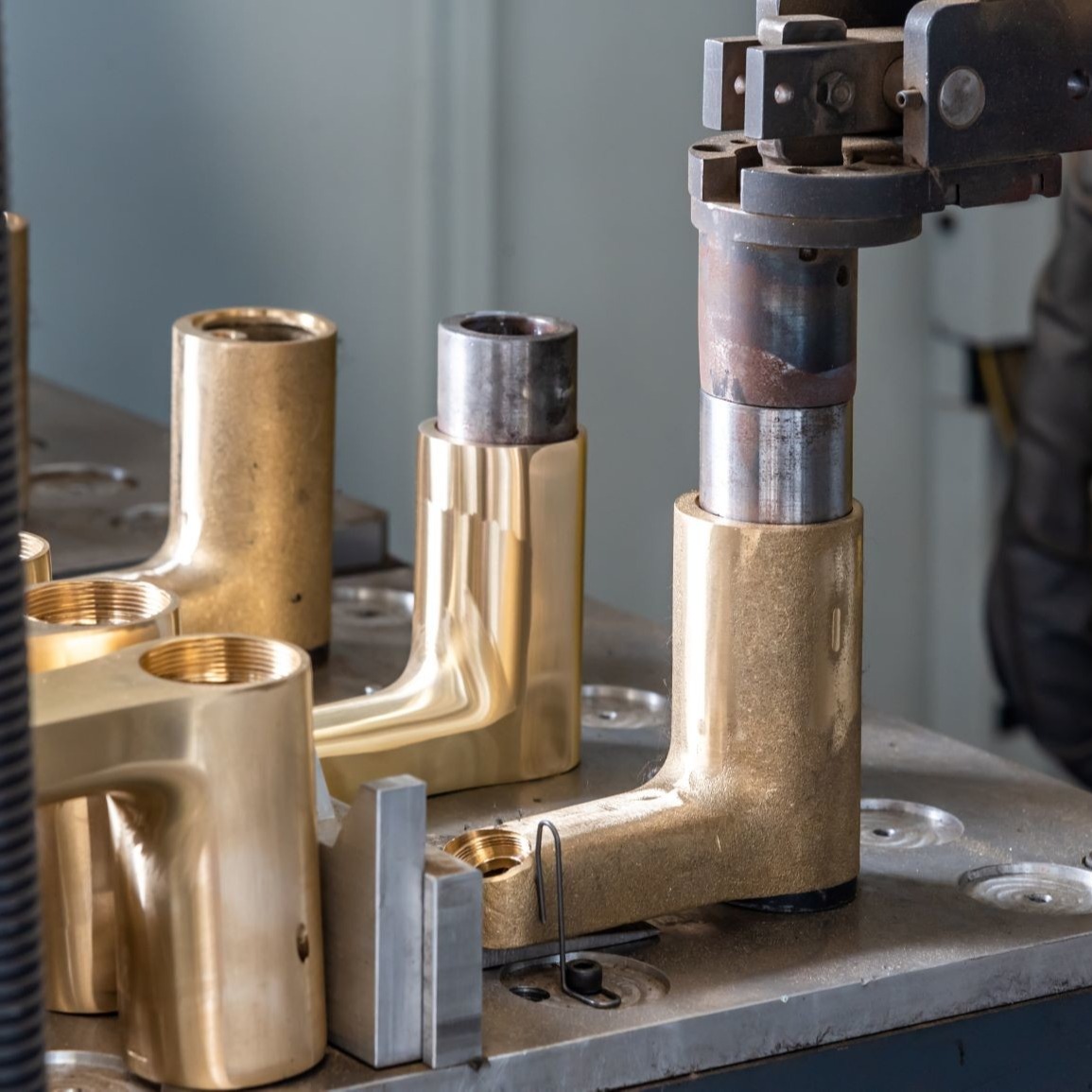

Typical products to process: Brass casted faucets, zamak
levers, zamak faucets, shower heads and any sanitary ware
Compact cell, reduced space required for installation
Customizable Layout: Various robot brand Integration
Multiple applications possible: Machining, Deburring, Grinding
Polishing, Satin
Customized HMI: Easy Adjustment
High Adaptability: Multiple part geometry processing
Calibration System: High Process Repeatability
Complex geometries processing
Up to 100% Surface Grinding Processing


II. CHARACTERISTIC

  • The grinding robot machine is automatically controlled by a industrial robot,can be reprogrammed,and to achieving various kinds of grinding jobs in 3D space;
  • FUNAC robotic arm
  • The grinding machine has several grinding touch wheels,and in the process of grinding,the robot can control the rotating speed of the grinding machine,automatically adjust the tension of the sand belt,and choose the current available touch wheels.
  • The machine has function of automatic position compensation.In the process of grinding,the machine detect the position of the wheels and automatically adjust the position of the wheels to compensate the position deviation of the wheels.
  • The machine has the warning function of the breakage of sand belt,Effectively get rid of the danger and waste of the idle running of the robot when the sand belt breaks.
  • Offline program software for automatic grinding.
  • We have professional programmer for grinding technical,To ensure fully technical support.And help you resolve the difficulty of grinding/polishing task,Reducing the production time.
  • Professional team to design the fixtures and professional fixtures design can increase the grinding/polishing effect dramatically.



Working area 1800*2500mm
Feed height 200mm
Transmission X/Y rack and pinion, Z ball screw
Table structure T slot with clamp
Spindle power 4.5KW*2
Spindle speed 24000r/min
Travelling speed 25m/min
Working speed 20m/min
Working Delicacy 0.005mm
Repositioning Accuracy 0.05mm
Driving Motor Stepper
Control System DSP/Ncstudio Control System
Command Code G Code*.u00*.mmg*.plt
Power(without spindle) 1500W
Voltage AC380/50HZ
Running Environment Temperature:0 degree~45 degree
Software Artcam/Type3,other CAD/CAM

Easy Operation Robotic Buffing Polishing Grinding Machine Easy Adjustment 0Easy Operation Robotic Buffing Polishing Grinding Machine Easy Adjustment 1


Product categories

Easy Operation Robotic Buffing Polishing Grinding Machine Easy Adjustment 2

Company Profile

Automatic Robot Grinding Machine Polishing For Surface Polish Treatment Of Brass Faucet / Door HandleAutomatic Robot Grinding Machine Polishing For Surface Polish Treatment Of Brass Faucet / Door Handle

Certifications

Automatic Robot Grinding Machine Polishing For Surface Polish Treatment Of Brass Faucet / Door HandleAutomatic Robot Grinding Machine Polishing For Surface Polish Treatment Of Brass Faucet / Door HandleAutomatic Robot Grinding Machine Polishing For Surface Polish Treatment Of Brass Faucet / Door Handle

FAQ

Q: could you please arrange the installation and commissioning ?
A: Yes , we could and the buyer pay the charge



Q: could you arrange the production education?
A: Yes , we could and the buyer pay the charge



Q:How long the guarantee?
A: one year and charge for repair the whole life.



Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.
