China CNC Polishing Machine manufacturer

Four Stations Automatic Polishing Machine For Brass Water Tap

Product Details:
Place of Origin: China
Brand Name: DZ
Certification: CE
Model Number: HLD-50E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wood
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30sets / month

Detail Information

Weight: 4000KG Voltage: 380V/50Hz
Condition: 100%New After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation
Use: Machining, Deburring, Grinding, Polishing Type: Angle Polisher
Warranty: 1 Year Name: Grinding Robotic
Function: Machining, Deburring, Grinding, Polishing
High Light:

Four Stations Automatic Polishing Machine

,

Brass Water Tap Automatic Polishing Machine

,

Angle CNC Polishing Machine

Product Description

Four-stations Automatic Polishing Machine For Brass Water Tap



I. CHARACTERISTIC



Precision polishing


- Uniform polishing quality, no deformation of the workpiece;


- High output, four stations work synchronously, one programming, one time to complete four workpiece clearing operation;


- Automatic waxing system;


- Quick replacement of fixture.


- Quick replacement of polishing materials.


- Reduce the number of fixtures.


- Reduce polishing material consumption.


- Polishing system, avoid workpiece in the process of machining temperature is too high.


- Fast and easy programming.


- Finish any Angle polishing work;


- One operator can operate multiple machines.



II.TECHNICAL PARAMETERS



Code序号 Item项目

Specifications参数

1 Dimensions (L*W*H) 尺寸 4400*3400*2900
2 Machine Power 功率 35KW
3 Rated Voltage 额定电压 380V
4 Max. Diameter of polishing wheel 抛光轮最大尺寸

600mm

5 Min. Diameter of polishing wheel抛光轮最小尺寸

400mm

6 X-Axis travel (mm) X轴行程 1100
7 Y-Axis travel (mm) Y轴行程 900
8 Z-Axis travel (mm) Z轴行程 700
9 U-Axis travel (mm) U轴行程 ±90°
10 V-Axis travel (mm) V轴行程 ±360°
11 W-Axis travel (mm) W轴行程 ±360°
12 Max.speed X axis X轴最大速度 20m/min
13 Max.speed Y axis Y轴最大速度 20m/min
14 Max.speed Z axis Z轴最大速度 20m/min
15 Max.speed U axis U轴最大速度 30°/sec.
16 Max.speed V axis V轴最大速度 30°/sec.
17 Max.speed W axis W轴最大速度 30°/sec.

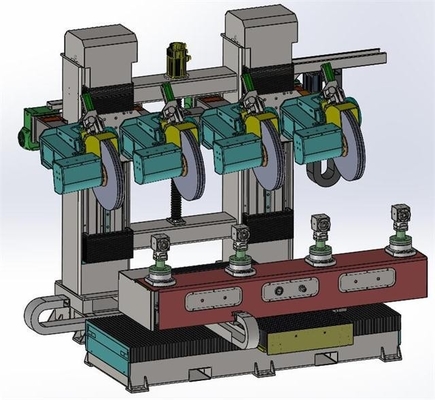

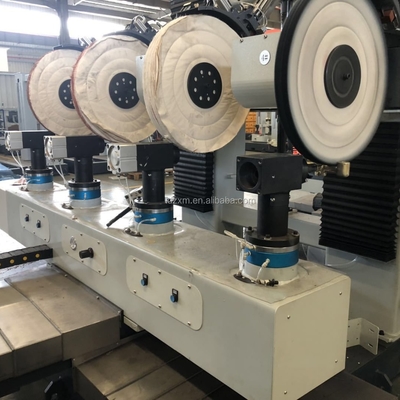

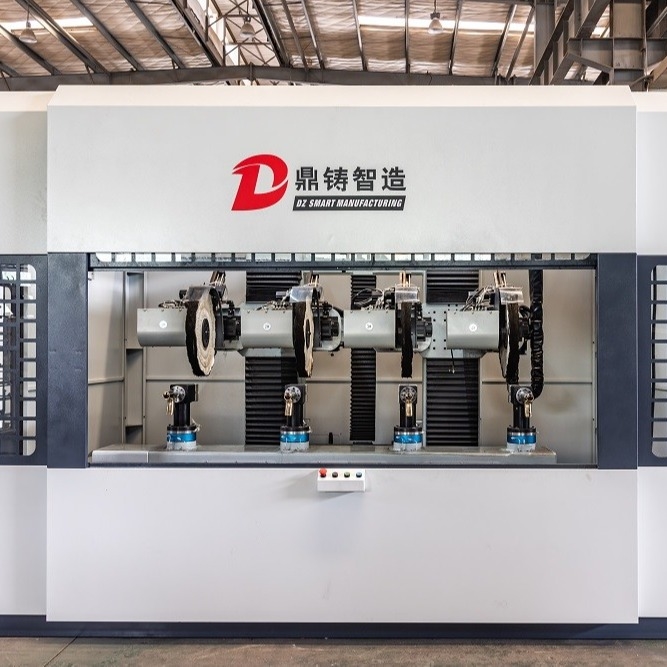

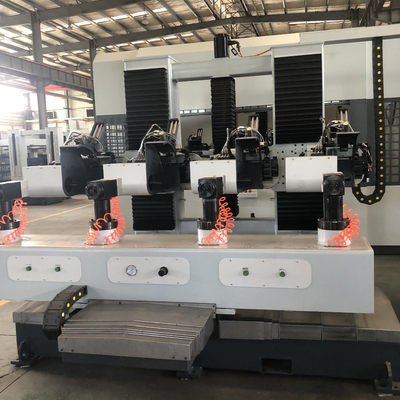

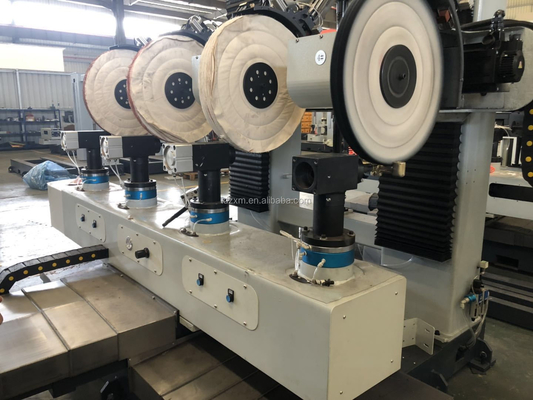

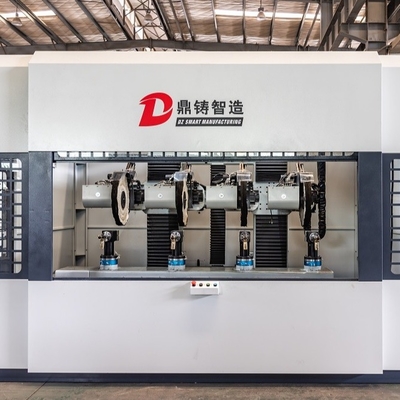

Four Stations Automatic Polishing Machine For Brass Water Tap 0Four Stations Automatic Polishing Machine For Brass Water Tap 1Four Stations Automatic Polishing Machine For Brass Water Tap 2

FAQ

Q1. Where is your factory located ? How can I visit it ?
A : Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up.


Q2. Are you produce polishing machine's specific parameters according to the samples?
A: Yes, we produce the machine you want by your samples or technical drawings. Usually one machine have different molds and fixtures like metal polishing machine,die casting machine.


Q3. What is your sample service?
A: We can supply the sample testing which client want to produce if we have ready machine in stock, but the customers have to pay the sample shipping cost.


Q4. What is your MOQ of your machine?
A: Normally our MOQ is 1 set.


Q5. Do you test all your machine before delivery?
A: Yes, we have 100% test before delivery.


Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
