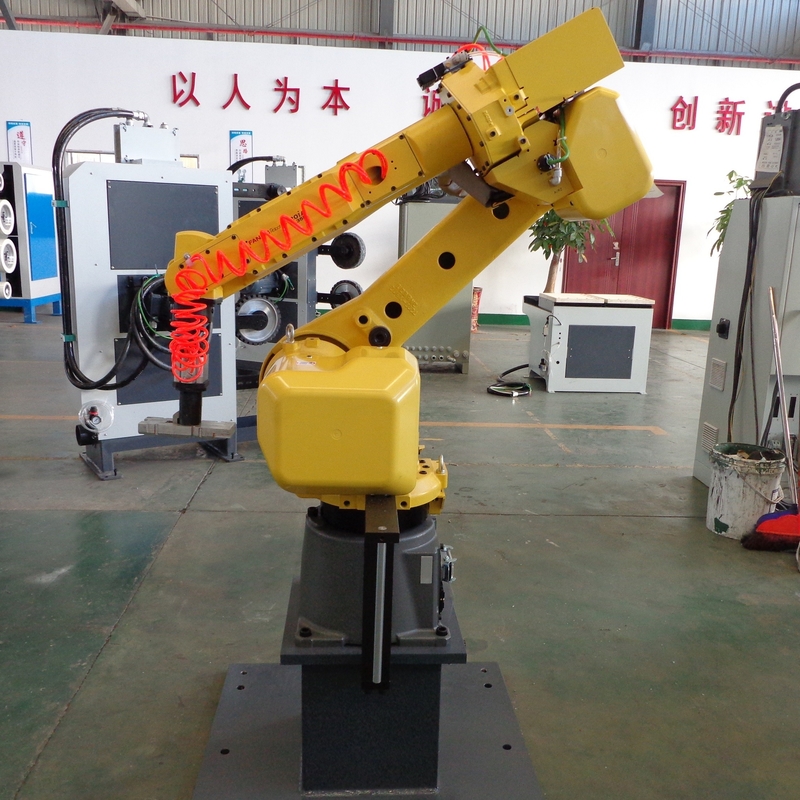

Easy Operation Faucets Robotic Buffing Machine With 1.5KW Stepper Motor
| Brand Name: | DZ |
| Model Number: | HLD-50E |
| MOQ: | 1 |
| Packaging Details: | wood |
| Payment Terms: | L/C,T/T,Western Union |
Detail Information
Place of Origin:
China
Certification:
CE
Weight:
4000KG
Voltage:
380V/50Hz
Condition:
100%New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation
Use:
Machining, Deburring, Grinding, Polishing
Type:
Angle Polisher
Warranty:
1 Year
Name:
Grinding Robotic
Function:
Machining, Deburring, Grinding, Polishing
Delivery Time:
30 days
Supply Ability:
30sets / month
Highlight:
1.5KW Motor Robotic Buffing Machine
,Faucets Grinding Robotic Buffing Machine
,380V CNC Polishing Machine
Product Description
Easy Operation Faucets Robotic Buffing Machine With 1.5KW Stepper Motor
Easy Operation Robotic Buffing Machine For Faucets With 1.5KW Stepper Motor
Key Features

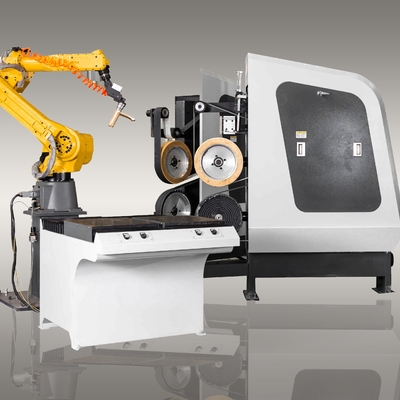

- Robotic cell for grinding faucets and sanitary ware
- Processes brass casted faucets, zamak levers, zamak faucets, shower heads
- Compact design with reduced installation space requirements
- Customizable layout with various robot brand integration
- Multiple applications: machining, deburring, grinding, polishing, satin finishing
- Customized HMI for easy adjustment
- High adaptability for multiple part geometry processing
- Calibration system for high process repeatability
- Complex geometries processing capability
- Up to 100% surface grinding processing
Technical Characteristics
- FANUC robotic M-20Ia/35M
- Modular programming with self-learning system
- Demonstrator programming with portable handheld device
- Manual mode for simulating workmanship grinding and recording tracks
- Automatic operating mode with pre-set parameters
- Full digital control with program save and recall capability
- Rotary sand belt machine and multi-grade sandpaper grinding in one operation
- High precision and high efficiency performance
Technical Specifications
| Parameter | Specification |
|---|---|
| Working area | 1800×2500mm |
| Feed height | 200mm |
| Transmission | X/Y rack and pinion, Z ball screw |
| Table structure | T slot with clamp |
| Spindle power | 4.5KW×2 |
| Spindle speed | 24000r/min |
| Travelling speed | 25m/min |
| Working speed | 20m/min |
| Working delicacy | 0.005mm |
| Repositioning accuracy | 0.05mm |
| Driving motor | Stepper |
| Control system | DSP/Ncstudio Control System |
| Command code | G Code*.u00*.mmg*.plt |
| Power (without spindle) | 1500W |
| Voltage | AC380/50HZ |
| Running environment | Temperature: 0°C~45°C |
| Software | Artcam/Type3, other CAD/CAM |
Frequently Asked Questions
Q: Could you please arrange the installation and commissioning?
A: Yes, we can arrange installation and commissioning at the buyer's expense.
Q: Could you arrange the production education?
A: Yes, we can arrange production education at the buyer's expense.
Q: How long is the guarantee?
A: One year guarantee with lifetime repair service (charges apply after warranty period).
Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on quantity, delivered according to agreed schedule.
