Product Details:
|
|
| Place of Origin: | China(Mainland) |
|---|---|
| Brand Name: | DZ |
| Certification: | CE |
| Model Number: | HZ-450 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | woodhttps://www.maoyt.com/index.php?r=product/edit&pid=29492408&action=copy#label_name |
| Delivery Time: | 2week |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Warranty: | 1year |
|---|---|---|---|

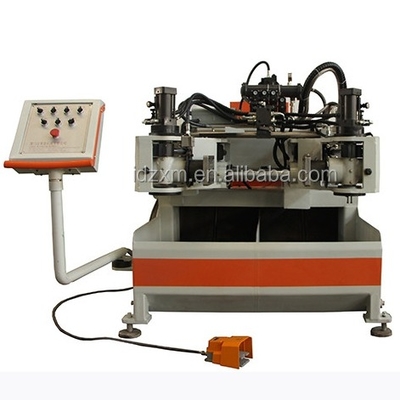

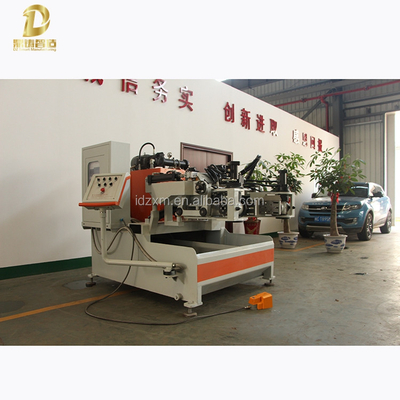

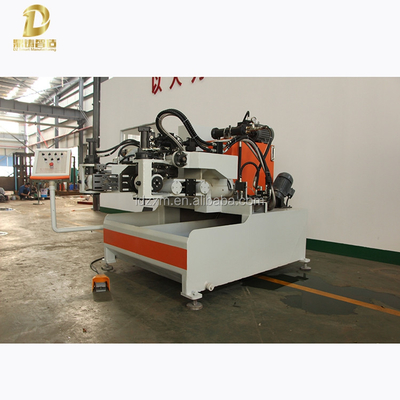

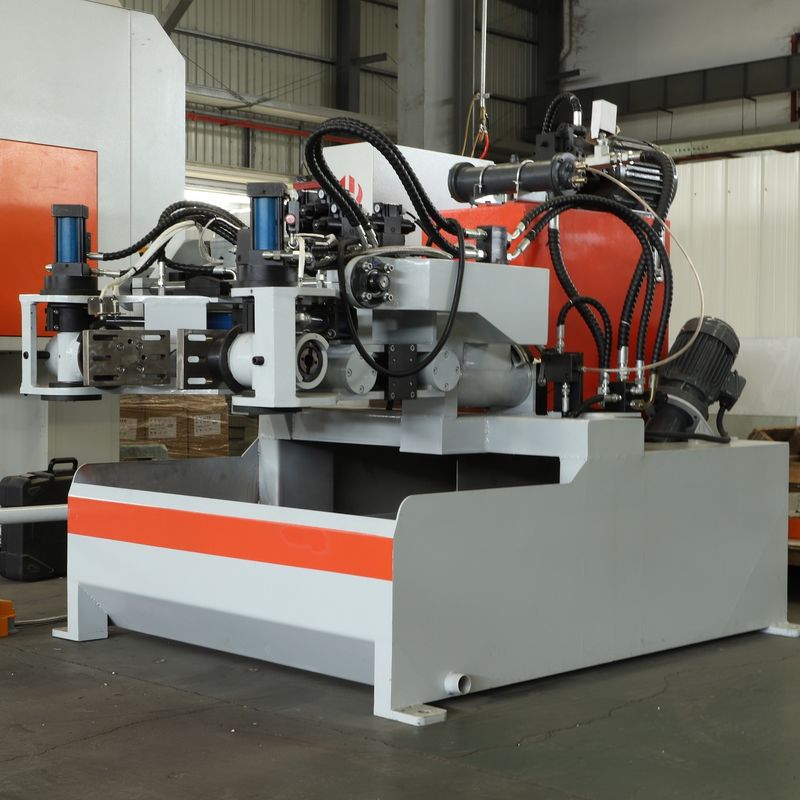

| Name: | Brass Die Casting Machine | Technology: | Gravity Die Casting Technology |
| Usage: | Foundry Pieces Production | Raw Material: | Brass Copper Zinc Aluminum Steel Iron Alloy |
| High Light: | Pipe Fittings Gravity Die Casting Machine,5.5KW Hardware Gravity Die Casting Machine,60KPa Brass Die Casting Machine |
||
Product Description
TECHNICAL PARAMETERS
| 1 | MAX MOULD SIZE 模具最大尺寸 | 450mm |
| 2 | Max Mould Weight模具最大重量 | 130KG |
| 3 | Longest Merger Distance最大合并距离 | ≤250mm |
| 4 | Hydraulic Pressure油压压力 | 40-60KPa |
| 5 | Side Casting Angie测浇角度 | 0º-90º |
| 6 | Frontal Casting Angle正浇角度 | 0º-110º |
| 7 | Hydraulic Oil 液压油 | 163L |
| 8 | Total Power 总功率 | 5.5KW |
| 9 | Installing Top Core Device 可加装顶芯装置 | 20mm travel |
| 10 | Net Weight 净重 | 1750KG |
| 11 | Machine Dimension 机器外形尺寸 | 2250*2160*1560mm |
CHARACTERISTIC
1. The circuit is controlled by PLC, the data is set by touch screen and all hydraulic components are imported.
2. It is suitable for gravity die casting of brass and ferrous alloy.
3. It can be frontal casting, side casting, twice casting and mixed casting.
4. It is possible to individually adjust the cooling time of the die.
5. It facilitates the decomposition, combination and cleaning of dies.
6. It has two functions of manual and automatic circulation, the counter can be preset, to record the output of each shift.
7. There is a die adjustment space to facilitate the application of different dies, and reduce the requirements for the die size.
8. The machine can store the die casting operation programs and set the password accordingly.
Q: Could you please arrange the installation and commissioning?
A: Yes, we could and the buyer paid the charge.
Q: Could you arrange the production education?
A: Yes, we could and the buyer paid the charge.
Q: How long is the guarantee?
A: One year and charge for repair the whole life.
Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.
