Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | DZ |
| Certification: | CE |
| Model Number: | HLD-50E |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Packaging Details: | wood |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30sets / month |
|
Detail Information |
|||
| Weight: | 4000KG | Voltage: | 380V/50Hz |
|---|---|---|---|
| Condition: | 100%New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation |
| Use: | Machining, Deburring, Grinding, Polishing | Type: | Angle Polisher |
| Warranty: | 1 Year | Name: | Grinding Robotic |
| Function: | Machining, Deburring, Grinding, Polishing | ||
| High Light: | Brass Accessories Robot Grinding Machine,1.5KW CNC Robotic Buffing Machine,380V CNC Robotic Buffing Machine |
||
Product Description
II.CHARACTERISTIC

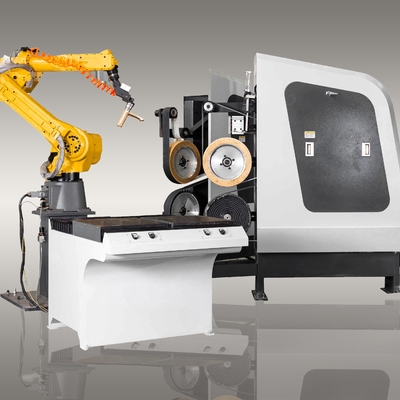

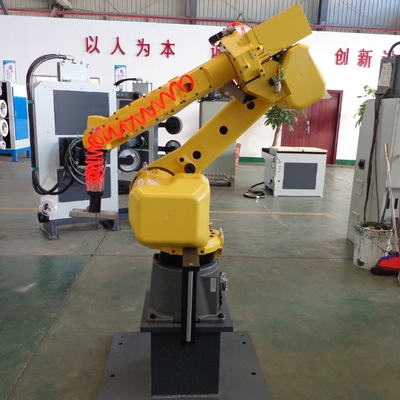

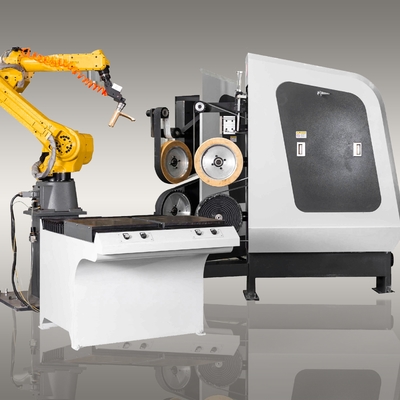

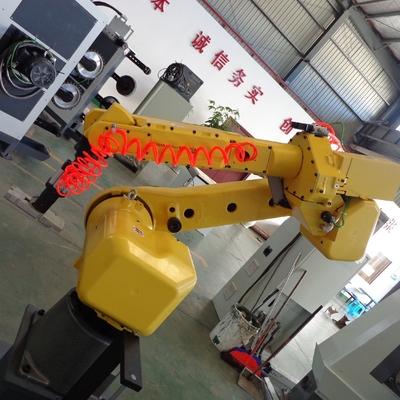

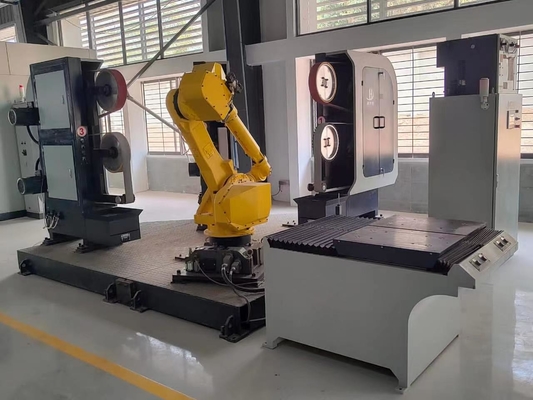

3.1 FUNAC robotic M-20Ia/35M
3.2 Program modular, programming easiness with self-learning system.
3.3 Programming method:demonstrator programming ,with protable handed device, contains manually mode to simulate the workmanship grinding and record the track; automatically operating model is available with pre-settled parameters program.
3.4 Full digital control, the program can be saved and called at any time.

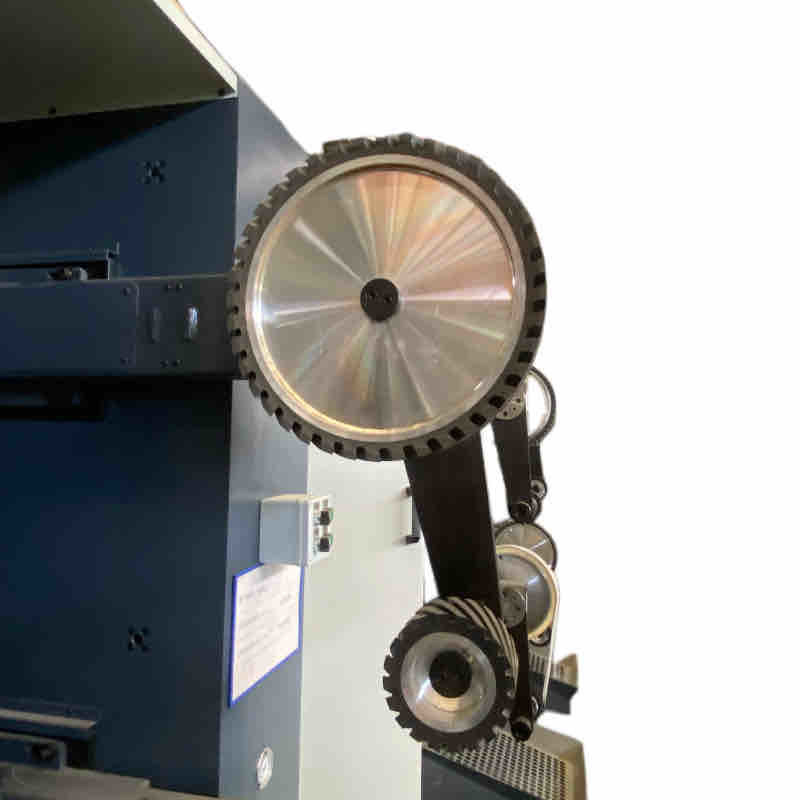

3.5 Rotary sand belt machine and multi - grade sandpaper grinding process can be completed at one time.
3.6 High precision, high efficiency.
Standard Components
G. Fully enclosed machine cabinet; Adopting soundproof and fireproof material to eliminate dust pollution
| Working area | 1800*2500mm |
| Feed height | 200mm |
| Transmission | X/Y rack and pinion, Z ball screw |
| Table structure | T slot with clamp |
| Spindle power | 4.5KW*2 |
| Spindle speed | 24000r/min |
| Travelling speed | 25m/min |
| Working speed | 20m/min |
| Working Delicacy | 0.005mm |
| Repositioning Accuracy | 0.05mm |
| Driving Motor | Stepper |
| Control System | DSP/Ncstudio Control System |
| Command Code | G Code*.u00*.mmg*.plt |
| Power(without spindle) | 1500W |
| Voltage | AC380/50HZ |
| Running Environment | Temperature:0 degree~45 degree |
| Software | Artcam/Type3,other CAD/CAM |
FAQ
Q1. Where is your factory located ? How can I visit it ?
A : Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up.
Q2. Are you produce polishing machine's specific parameters according to the samples?
A: Yes, we produce the machine you want by your samples or technical drawings. Usually one machine have different molds and fixtures like metal polishing machine,die casting machine.
Q3. What is your sample service?
A: We can supply the sample testing which client want to produce if we have ready machine in stock, but the customers have to pay the sample shipping cost.
Q4. What is your MOQ of your machine?
A: Normally our MOQ is 1 set.
Q5. Do you test all your machine before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
