PLC Controlled Digital Die Cutting Gravity Die Casting Machine For Brass Ferroalloy
| Brand Name: | DZ |
| Model Number: | HZ-450 |
| MOQ: | 1set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |
Detail Information
Place of Origin:
China(Mainland)
Certification:
CE
Condition:
New
Warranty:
1year
Name:
Brass Die Casting Machine
Technology:
Gravity Die Casting Technology
Usage:
Foundry Pieces Production
Raw Material:
Brass Copper Zinc Aluminum Steel Iron Alloy
Delivery Time:
2week
Supply Ability:
30 Set/Sets per Month
Highlight:
Ferroalloy Gravity Die Casting Machines
,Gravity Casting Machine PLC Controlled
,Foundry Pieces Gravity Die Casting Machine
Product Description

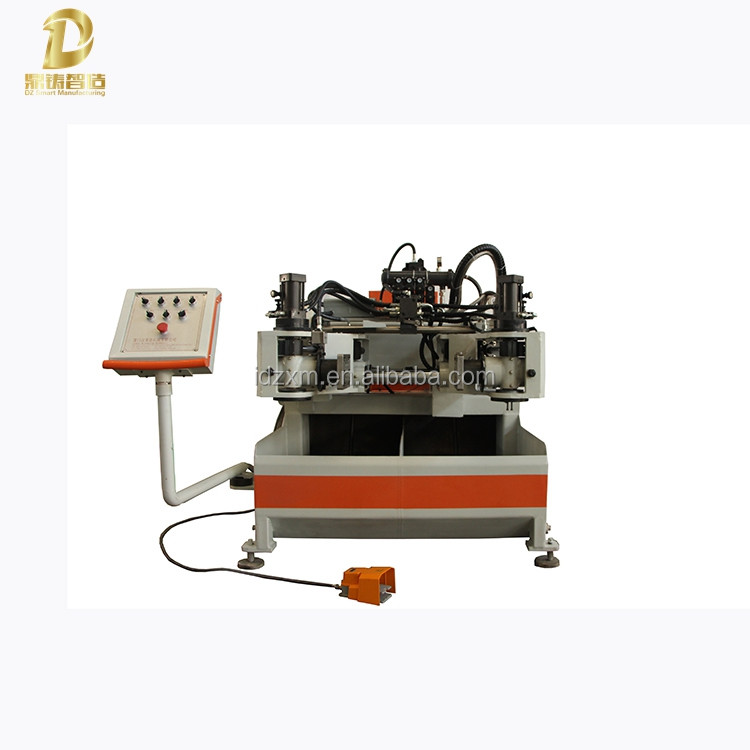

Gravity Die Casting Machine For Brass And Ferroalloy
Gravity Die Casting Machine With Convenient Control
Machine features:
- The circuit is controlled by PLC, the data is set by touch screen and all hydraulic components are imported.
- It is suitable for gravity die casting of brass and ferrous alloy.
- It can be frontal casting, side casting, twice casting and mixed casting.
- It is possible to individually adjust the cooling time of the die.
- It facilitates the decomposition, combination and cleaning of dies.
- It has two functions of manual and automatic circulation, the counter can be preset, to record the output of each shift.
- There is a die adjustment space to facilitate the application of different dies, and reduce the requirements for the die size.
- The machine can store the die casting operation programs and set the password accordingly.
Main Technical Specifications
| # | Name | Specification |
| 1 | Max. Die size | Φ450mm |
| 2 | Max. Die working distance | 450mm |
| 3 | Max. Die Weight | 130kg |
| 4 | Max. Clamping distance | ≦250mm |
| 5 | Hydraulic Motor | 5Hp,6 degree |
| 6 | Hydraulic Pressure | 4～6Kpa |
| 7 | Side Casting Angle | 0°～90° |
| 8 | Direct Casting Angle | 0°～110° |
| 9 | Stirring motor | 0.75kw,6 degree ×2 |
| 10 | Cooling tank | 850kg |
| 11 | Hydraulic oil volume | 163L |
| 12 | Machine Power | 5.5kw |
| 13 | Machine Weight | 1750kg |
| 14 | Dimension(LXWXH) | 2250mm×2160mm×1560mm |
Sample pictures
