Well Known Brand Gravity Die Casting Machine PLC Control For Faucet Production

Product Details:
Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE
Model Number: HZ-450
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wood
Delivery Time: 2week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Set/Sets per Month

Detail Information

Condition: New Warranty: 1year
Name: Brass Die Casting Machine Technology: Gravity Die Casting Technology
Usage: Foundry Pieces Production Raw Material: Brass Copper Zinc Aluminum Steel Iron Alloy
High Light:

Faucet Production Gravity Die Casting Machine

,

PLC Control Gravity Casting Machine

,

Brass Die Casting Machine PLC Control

Product Description

Gravity Die Casting Machine With Convenient Control

Machine features:



  • The circuit is controlled by PLC, the data is set by touch screen and all hydraulic components are imported.
  • It is suitable for gravity die casting of brass and ferrous alloy.
  • It can be frontal casting, side casting, twice casting and mixed casting.
  • It is possible to individually adjust the cooling time of the die.
  • It facilitates the decomposition, combination and cleaning of dies.
  • It has two functions of manual and automatic circulation, the counter can be preset, to record the output of each shift.
  • There is a die adjustment space to facilitate the application of different dies, and reduce the requirements for the die size.
  • The machine can store the die casting operation programs and set the password accordingly.







Main Technical Specifications

# Name Specification
1 Max. Die size Φ450mm
2 Max. Die working distance 450mm
3 Max. Die Weight 130kg
4 Max. Clamping distance ≦250mm
5 Hydraulic Motor 5Hp,6 degree
6 Hydraulic Pressure 4~6Kpa
7 Side Casting Angle 0°~90°
8 Direct Casting Angle 0°~110°
9 Stirring motor 0.75kw,6 degree ×2
10 Cooling tank 850kg
11 Hydraulic oil volume 163L
12 Machine Power 5.5kw
13 Machine Weight 1750kg
14 Dimension(LXWXH) 2250mm×2160mm×1560mm

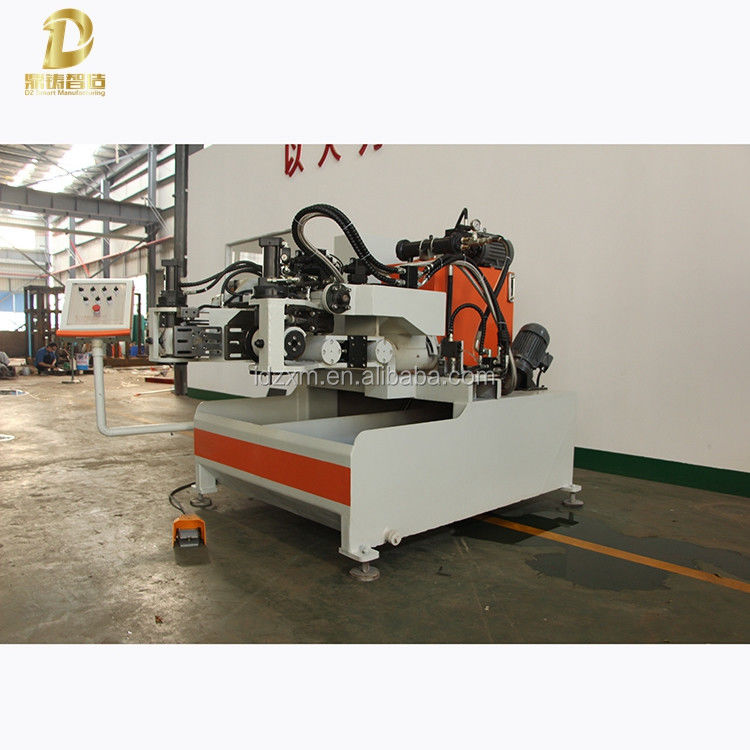

Well Known Brand Gravity Die Casting Machine PLC Control For Faucet Production 0



Sample pictures



Well Known Brand Gravity Die Casting Machine PLC Control For Faucet Production 1





Click the link to view video:

https://www.youtube.com/watch?v=wfANIO7Hw-w&list=UUMEJdKjNOuRhrF8Kyh8fX_A&index=14
