|Place of Origin:||CHINA|
Payment & Shipping Terms:
|Minimum Order Quantity:||1set|
|Payment Terms:||L/C, T/T, Western Union|
|Condition:||100%New||After-sales Service Provided:||Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation|
|Application:||Machining, Deburring, Grinding, Polishing||Control System:||PLC|
|Warranty:||1 Year||Function:||Finishing ,buffing|

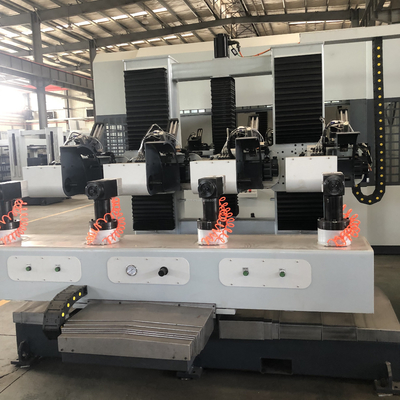

17KW Aluminum Drum Polish Machine,
PLC Control Metal Polishing Machine
It can effectively improve the following aspects
1. Efficiency; It can be produced in 24 hours.
2. Quality: realize polishing standardization.
3. Save labor cost; The related expenses and management of personnel are controllable.
4. Safety and environmental protection, closed polishing production, equipped with dust suction interface,
5. The cost is controllable, the patented solid wax mechanism, and the cost of consumables is low.
6. Polishing versatility, applicable to various shapes of zinc aluminum copper stainless steel materials.
DingZhu polishing machine product characteristics
1. Automatic compensation function of polishing wheel: when the polishing cloth wheel is lost, the system can detect that the torque becomes smaller and realize automatic compensation in all directions.
2. Linear speed compensation: when the outer diameter of the cloth wheel decreases, the system automatically increases the speed compensation linear speed.
3. Solid wax addition: the original solid wax addition can freely set the wax addition time and frequency according to the characteristics of the product, and the polishing wax is not wasted.
4. Full digital control, the program can be saved and called at any time.
5. There are few fixtures, which can be replaced quickly and flexible universal, so as to reduce the loss of polishing cloth wheel.
6. The whole is polished evenly, and the quality of polished parts is consistent without deformation.
Surface Grind Polish Drum Machine To Aluminum Stainless Steel
Rotary Drug Automatic Machine For Metal Products Of Complex Shapes Some Product Polishing Wheel Can'T Polish
Stainless Steel Copper Faucet Hand Grinding Polishing Machine
Mirror Polishing Machine For Faucet Bodies /Door Handle / Door Plate
LED sapphire Quartz wafer silicon wafer high precision horizontal thinning machine tool
ceramic wafer Tungsten steel metal high precision horizontal thinning machine tool
superhard material high precision horizontal thinning machine grinding machine
silicon wafer Quartz wafer Precise Thinning machinery Equipment
Superhard Material Product high Precise Thinning machine tool
silicon wafer high precise thinning machine tool for CPU chip
Sapphire Pieces High Speed Precision Thinning Machine lapping machine
Wafer Thinning equipment lapping system machine tool
FD-400A vertical ceramics lapping machine ceramic chip thinning machine tool
Standard size 610 Large-scale Precision flat surface Lapping System machine tool surface lapping machine
Standard size 910 Large-scale Precision flat surface grinding System surface grinding machine tool
Standard size 1600 Large-scale Precision flat surface Lapping System machine tool 1600 surface lapping machine
Standard size 9B 13B 16B Double Sided high Precision flat surface grinding System surface grinding machine tool
|4||Max. Diameter of polishing wheel||600mm|
|5||Min. Diameter of polishing wheel||400mm|

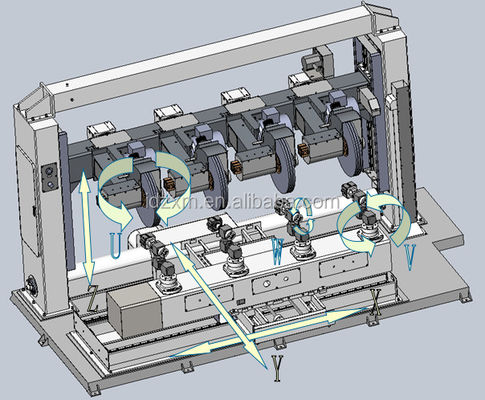

|6||X-Axis travel (mm)||1100|
|7||Y-Axis travel (mm)||900|
|8||Z-Axis travel (mm)||700|
|9||U-Axis travel (mm)||±60°|
|10||V-Axis travel (mm)||±360°|
|11||W-Axis travel (mm)||±360°|
|12||Max.speed X axis||20m/min|
|13||Max.speed Y axis||20m/min|
|14||Max.speed Z axis||20m/min|
|15||Max.speed U axis||30°/sec.|
|16||Max.speed V axis||30°/sec.|
|17||Max.speed W axis||30°/sec.|

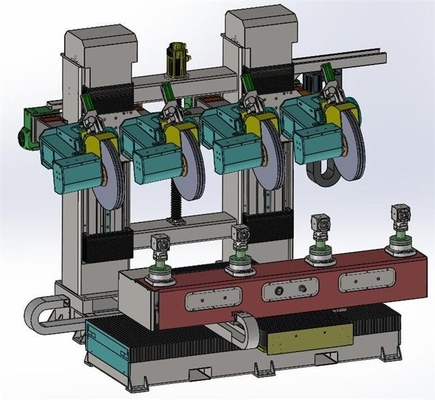

1. The automatic polishing machine is an exclusive polishing system consisting 4 manipulators with of 6 Axis rotary system; Multiple stations simultaneous operation ensures high flexibility and high product efficiency.
2. The control system adopts PROMAX motion control technology from Italy, with stable performance and high control accuracy.
3. Programming method: teaching programming ,with portable handed device, contains manually mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-set parameters program.
4. Polishing pressure and wear compensation control performance: When the polishing cloth wheel is worn out, the system can detect that the torque has become smaller and automatically the compensation in all directions.
5. Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed and compensation;
6. Program setting of add polishing wax:free setting of wax spraying time and frequency according to the characteristics of product.choice of slid compound or liquid compound.
7. Fully digital control, it can store 50 programs. Programs can be saved and recalled at any time.
8. CN/EN language display on Touch Panel. It is to set all parameters for an easy operation; fault codes display and alarm pages for quick troubles shooting and repair.
