| Brand Name: | DZ |
| Model Number: | NC-64 |
| MOQ: | 1set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |

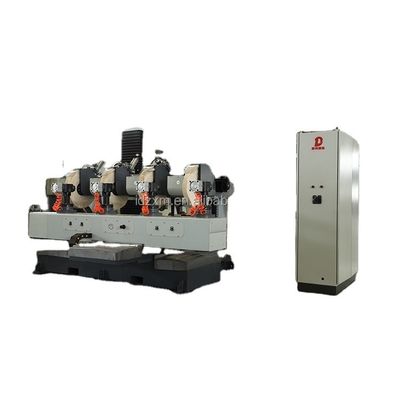

DingZhu polishing machine product characteristics
1. Automatic compensation function of polishing wheel: when the polishing cloth wheel is lost, the system can detect that the torque becomes smaller and realize automatic compensation in all directions.
2. Linear speed compensation: when the outer diameter of the cloth wheel decreases, the system automatically increases the speed compensation linear speed.
3. Solid wax addition: the original solid wax addition can freely set the wax addition time and frequency according to the characteristics of the product, and the polishing wax is not wasted.
4. Full digital control, the program can be saved and called at any time.
5. There are few fixtures, which can be replaced quickly and flexible universal, so as to reduce the loss of polishing cloth wheel.
6. The whole is polished evenly, and the quality of polished parts is consistent without deformation.
1. The automatic polishing machine is an exclusive polishing system consisting 4 manipulators with of 6 axises rotary; high flexibility and high product efficiency.
2. Automatic double open fixture, 360 degree freely rotating fixture,polish without any blind side.
3. Two Synchronous polishing positions, four positions, no loading and unloading time, increase the polishing efficiency.
4. China Easy Operation CNC Polishing Machine Gray White For Hardware Sanitary Ware distributor.
| II:Main technical parameters | |||
| # | Item | Parameter | Remarks |
| 1 | Size | 3000×3160×2772(L×W×H) | |
| 2 | Power | 16.25KW | |
| 3 | Rated Voltage | 380V 50Hz | |
| 4 | Max. Polishing Mop Diameter | 600mm | |
| 5 | Min. Polishing Mop Diameter | 400mm | |
| 6 | X Axis Travel | 1100 | |
| 7 | Y Axis Travel | 900 | |
| 8 | Z Axis Travel | 700 | |
| 9 | U Axis Travel | ±60° | |
| 10 | V Axis Travel | ±360° | |
| 11 | Operating Voltage | 380V | |
| Table Size (LxW) | 2740*375mm | ||
| Height from Ground (without fixture) | 880mm | ||
| Jig Rotating Speed | 20RPM | ||
| Station Size/Working Dia (max) | 350mm | ||
| Station Rotational speed Motor | 1500rpm | ||
| III | BASIC EQUIPMENT | ||
| # | Item | Brand | Remark |
| 1 | Motion control system | PROMAX Italy | |
| 2 | Servo motor | PROMAX Italy | |
| 3 | Variable frequency compensation system+Control card | AELTA | |
| 4 | Cloth wheel motor spindle | SIEMENS | |
| 5 | Main low voltage electrical | SCHNEIDER | |
| 6 | Linear guide rail and screw | HIWIN | |
| 7 | Reduction box | Rossi Italy | |
| 8 | Bearing | NSK | |
| 9 | Steering gear of fixture | TAIWAN | |
| 10 | Components clamping | Penumatic | |
| 11 | Table Type | Movable - table moving by the screw rod/ball screw. Driven by servo motor | |
Sample showing
|
|
