PLC Controlled Gravity Die Casting Machine For Brass And Ferroalloy
PLC Controlled Gravity Die Casting Machine For Brass And Ferroalloy
PLC Controlled Gravity Die Casting Machine For Brass And Ferroalloy PLC Controlled Gravity Die Casting Machine For Brass And Ferroalloy PLC Controlled Gravity Die Casting Machine For Brass And Ferroalloy PLC Controlled Gravity Die Casting Machine For Brass And Ferroalloy PLC Controlled Gravity Die Casting Machine For Brass And Ferroalloy

PLC Controlled Gravity Die Casting Machine For Brass And Ferroalloy

Product Details:
Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE
Model Number: HZ-450
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wood
Delivery Time: 2week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Set/Sets per Month
Contact Now

Detail Information
Condition: New Warranty: 1year
Name: Brass Die Casting Machine Technology: Gravity Die Casting Technology
Usage: Foundry Pieces Production Raw Material: Brass Copper Zinc Aluminum Steel Iron Alloy
High Light:

Brass Gravity Die Casting Machinery

,

Ferroalloy Gravity Die Casting Machine

,

PLC Gravity Die Casting Machines

Product Description

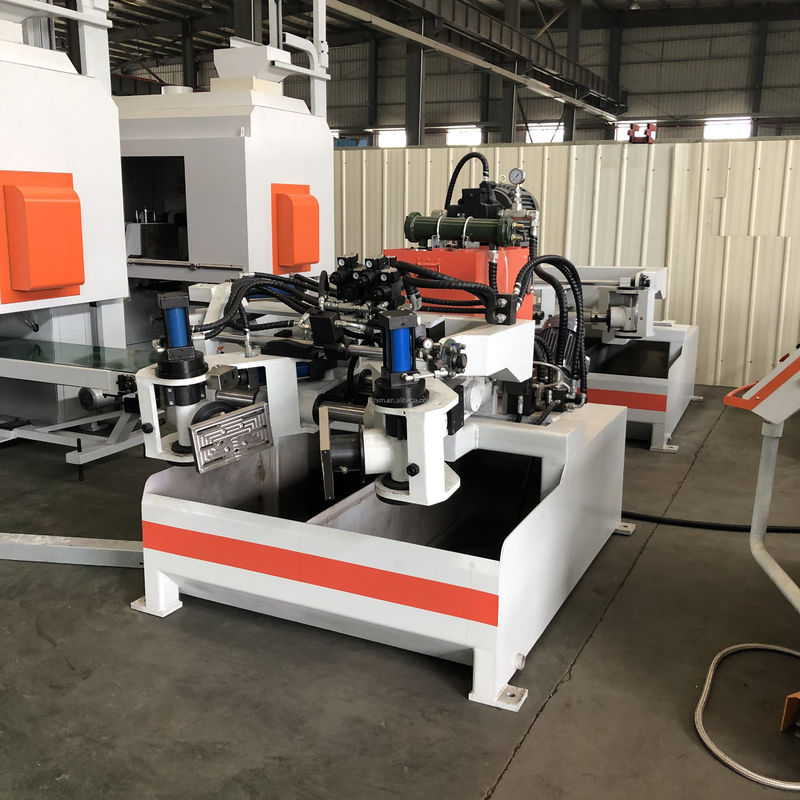

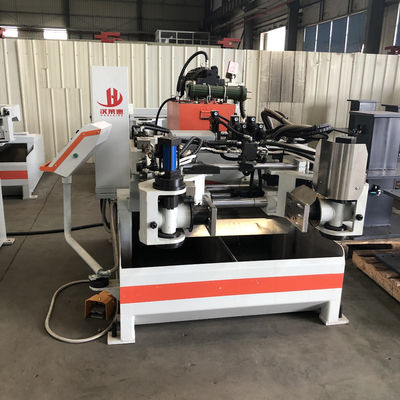

Gravity Die Casting Machine For Brass And Ferroalloy

Gravity Die Casting Machine With Convenient Control

Machine features:

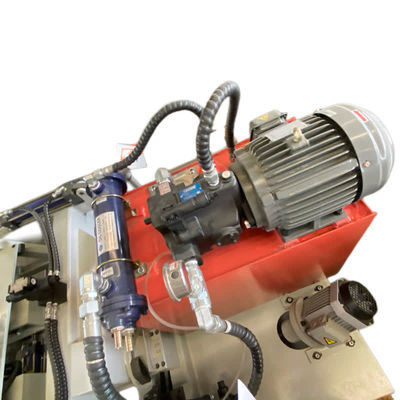

  • The circuit is controlled by PLC, the data is set by touch screen and all hydraulic components are imported.
  • It is suitable for gravity die casting of brass and ferrous alloy.
  • It can be frontal casting, side casting, twice casting and mixed casting.
  • It is possible to individually adjust the cooling time of the die.
  • It facilitates the decomposition, combination and cleaning of dies.
  • It has two functions of manual and automatic circulation, the counter can be preset, to record the output of each shift.
  • There is a die adjustment space to facilitate the application of different dies, and reduce the requirements for the die size.
  • The machine can store the die casting operation programs and set the password accordingly.







Main Technical Specifications

# Name Specification
1 Max. Die size Φ450mm
2 Max. Die working distance 450mm
3 Max. Die Weight 130kg
4 Max. Clamping distance ≦250mm
5 Hydraulic Motor 5Hp,6 degree
6 Hydraulic Pressure 4～6Kpa
7 Side Casting Angle 0°～90°
8 Direct Casting Angle 0°～110°
9 Stirring motor 0.75kw,6 degree ×2
10 Cooling tank 850kg
11 Hydraulic oil volume 163L
12 Machine Power 5.5kw
13 Machine Weight 1750kg
14 Dimension(LXWXH) 2250mm×2160mm×1560mm





PLC Controlled Gravity Die Casting Machine For Brass And Ferroalloy 0PLC Controlled Gravity Die Casting Machine For Brass And Ferroalloy 1PLC Controlled Gravity Die Casting Machine For Brass And Ferroalloy 2PLC Controlled Gravity Die Casting Machine For Brass And Ferroalloy 3PLC Controlled Gravity Die Casting Machine For Brass And Ferroalloy 4



Sample pictures



PLC Controlled Gravity Die Casting Machine For Brass And Ferroalloy 5PLC Controlled Gravity Die Casting Machine For Brass And Ferroalloy 6





Click the link to view video:

https://www.youtube.com/watch?v=wfANIO7Hw-w&list=UUMEJdKjNOuRhrF8Kyh8fX_A&index=14

Tag:

copper die casting machine

brass die casting machine

automatic die casting machine
