Manual Brass Faucet Making Machine Gravity Die Casting Machine High Proformance

Product Details:
Place of Origin: China
Brand Name: DZ
Certification: CE
Model Number: HZ-450
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wood
Delivery Time: 2week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Set/Sets per Month

Detail Information

Condition: New Warranty: 1 Year
Weight: 1750KG Machine Dimension: 2250*2160*1560mm
Total Power: 5.5KW Max Mould Size: 450mm
High Light:

CE Brass Faucet Making Machine

,

Faucet Making Gravity Die Casting Machine

,

Brass Faucet Gravity Die Casting Machine

Product Description

Gravity Die Casting Machine Used For The Casting Of Brass And Other Copper Alloys Poured By Gravity Into The Die

This machine is used for the casting of brass and other coppe ralloys poured by gravity into the die, to obtain medium/large size pieces or small size piecesby using multi-cavity dies.
The machine, being a new generation gravity casting machine, is designed taking into consideration operatorsafety and ergonomics.
The main characteristics of this newconcept machine are as follows:
Mechanical structure,which is far morerobust,with all vital parts mounted inaccessible and protected positions.

The dipping tank is an independent unit and can be easily removed ifnecessary. Furthermore during operation they are protected fromsand, grease and oil accidentally falling into them.
The machine is supplied with avariable displacementpump, allowingto extend the life of the pump and tobe much more silent.
Hydraulic and electric components,cylinders, and valves are also standardfor easy replacement.

Machine features:

  • Frontal and side pouring
  • Independent dipping tanks
  • Presetting of dipping angle
  • Frontal positioning of dies forassembling and cleaning
  • Bench tilting and die closingadjustable for different die types
  • Die rotation in dipping tanks whisubmerged
  • Emergency pushbutton for dieopening
  • Safety valves on cylinder for benchtilting
  • Static limit switch no mechanicalcontact
  • Mechanical movements on conicalbearing
  • Adjustable flow rate pump
  • Led on hydraulic valves
  • Led on limit switches
  • Counter for pouring count



Main Technical Specifications

# Name Specification
1 Max. Die size Φ450mm
2 Max. Die working distance 450mm
3 Max. Die Weight 130kg
4 Max. Clamping distance ≦250mm
5 Hydraulic Motor 5Hp,6 degree
6 Hydraulic Pressure 4~6Kpa
7 Side Casting Angle 0°~90°
8 Direct Casting Angle 0°~110°
9 Stirring motor 0.75kw,6 degree ×2
10 Cooling tank 850kg
11 Hydraulic oil volume 163L
12 Machine Power 5.5kw
13 Machine Weight 1750kg
14 Dimension(LXWXH) 2250mm×2160mm×1560mm

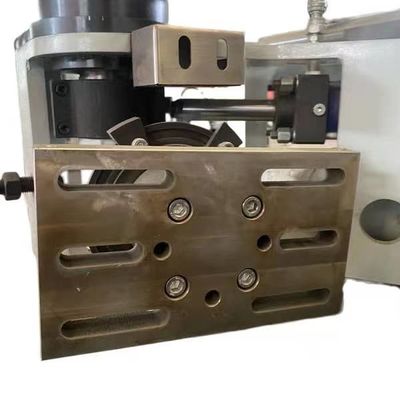

Poured Gravity Die Casting Machine Used For Brass Mechanical 0Poured Gravity Die Casting Machine Used For Brass Mechanical 1

Sample pictures


Poured Gravity Die Casting Machine Used For Brass Mechanical 2
Poured Gravity Die Casting Machine Used For Brass Mechanical 3
