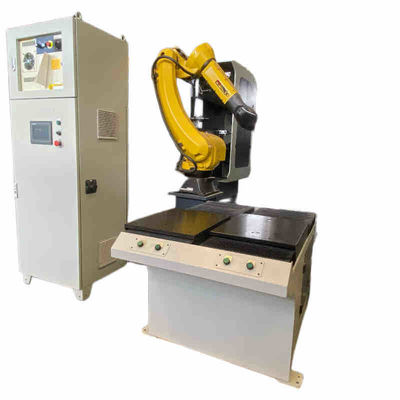

FUNAC Robot Grinding And Polishing Machine For Bath Mixer / Water Tap / Faucets / Handles

Product Details:
Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE ISO
Model Number: NC-62
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: wood
Delivery Time: 30work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100set/sets per month

Detail Information

Dimensions (L*W*H): 3000*3100*2900mm Machine Power: 16.5KW
Rated Voltage: 380V Max. Diameter Of Polishing Wheel: 600mm
Min. Diameter Of Polishing Wheel: 400mm X-Axis Travel (mm): 1200
Y-Axis Travel (mm): 1100 Z-Axis Travel (mm): 700
U-Axis Travel (mm): ±90° V-Axis Travel (mm): ±360°
W-Axis Travel (mm): ±360° Name: Robotic Polishing Machine
High Light:

Water Tap Grinding And Polishing Machine


Faucets Robot Grinding Polishing Machine


Water Tap Robot Grinding Machines

Product Description



FUNAC Robot Grinding And Polishing Machine For Bath Mixer / Water Tap / Faucets / Handles 0


2.1.The grinding robot machine is automatically controlled by a industrial robot,can be and to
reporgrammed,achieving various kinds of grinding jobs in 3D space;
2.2.FUNAC robotic arm
2.3.The grinding machine has several grinding touch wheels,and in the process of grinding,the robot
can control the rotating speed of the grinding machine,automatically adjust the tension of the sand
belt,and choose the current available touch wheels.
2.4.The machine has function of automatic position compensation.In the process of grinding,the
machine detect the position of the wheels and automatically adjust the position of the wheels to
compensate the position deviation of the wheels.
2.5.The machine has the warning function of the brokage of sand belt,Effectively get rid of the danger
and waste of the idle running of the robot when the sand belt breaks.
2.6.Offline program software for automatic grinding.
2.7.We have professional programmer for grinding technical,To ensure fully technical support.And help
you resolve the difficulty of grinding/polishing task,Reducing the production time.
2.8.Professional team to design the fixtures and more professional fixtures design can increase the
grinding/polishing effect dramatically.



A.FANUC Intelligent robot(1set)
B.Robot Control Cabinet
C.Electric control System
D.Sand Belt Polishing Mchine (2sets)
E.Double Station Feed Table (1set)
E.Discharge Tray(Two sets for each product,customized according to the sample)
F.Fully enclosed machine conver; Adopting soundproof and fireproof material to eliminate dust
