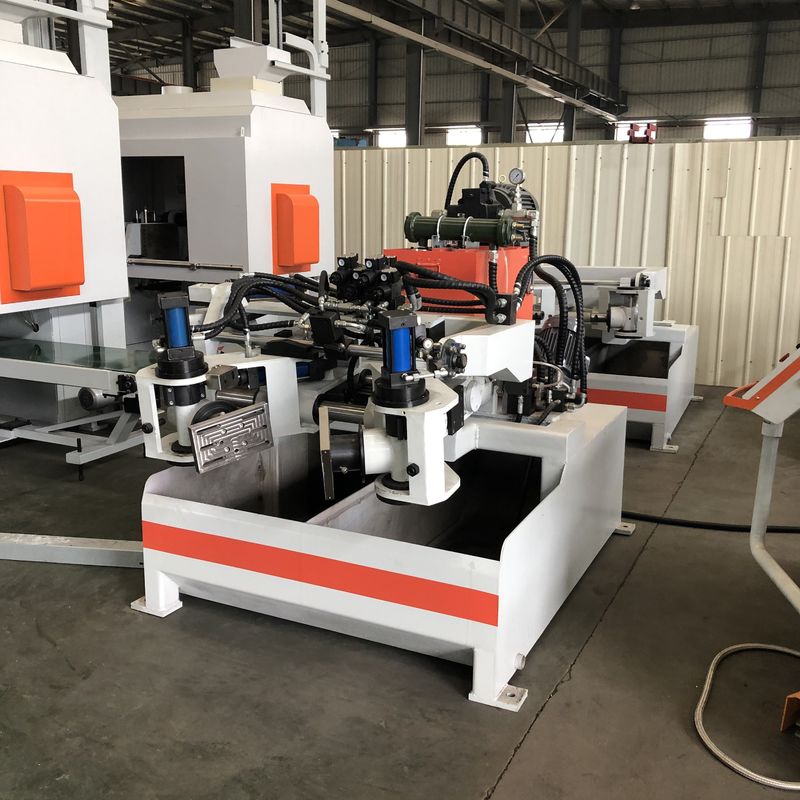

Hydraulic Mechanical Brass Gravity Die Casting Machine
Hydraulic Mechanical Brass Gravity Die Casting Machine
Hydraulic Mechanical Brass Gravity Die Casting Machine Hydraulic Mechanical Brass Gravity Die Casting Machine Hydraulic Mechanical Brass Gravity Die Casting Machine

Hydraulic Mechanical Brass Gravity Die Casting Machine

Product Details:
Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE
Model Number: HZ-450
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wood
Delivery Time: 2week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Set/Sets per Month
Contact Now

Detail Information
Condition: New Warranty: 1year
Name: Brass Die Casting Machine Technology: Gravity Die Casting Technology
Usage: Foundry Pieces Production Raw Material: Brass Copper Zinc Aluminum Steel Iron Alloy
High Light:

Mechanical Gravity Die Casting Machine

,

Hydraulic Brass Gravity Die Casting Machine

,

Hydraulic Brass Die Casting Machine

Product Description

Hydraulic Metal Brass Gravity Die Casting Machine Mechanical



Gravity Die Casting Machine Used For The Casting Of Brass And Other Copper Alloys Poured By Gravity Into The Die

Machine features:

  • Frontal and side pouring
  • Independent dipping tanks
  • Presetting of dipping angle
  • Frontal positioning of dies forassembling and cleaning
  • Bench tilting and die closingadjustable for different die types
  • Die rotation in dipping tanks whisubmerged
  • Emergency pushbutton for dieopening
  • Safety valves on cylinder for benchtilting
  • Static limit switch no mechanicalcontact
  • Mechanical movements on conicalbearing
  • Adjustable flow rate pump
  • Led on hydraulic valves
  • Led on limit switches
  • Counter for pouring count




Main Technical Specifications

# Name Specification
1 Max. Die size Φ450mm
2 Max. Die working distance 450mm
3 Max. Die Weight 130kg
4 Max. Clamping distance ≦250mm
5 Hydraulic Motor 5Hp,6 degree
6 Hydraulic Pressure 4～6Kpa
7 Side Casting Angle 0°～90°
8 Direct Casting Angle 0°～110°
9 Stirring motor 0.75kw,6 degree ×2
10 Cooling tank 850kg
11 Hydraulic oil volume 163L
12 Machine Power 5.5kw
13 Machine Weight 1750kg
14 Dimension(LXWXH) 2250mm×2160mm×1560mm




Hydraulic Mechanical Brass Gravity Die Casting Machine 0Hydraulic Mechanical Brass Gravity Die Casting Machine 1Hydraulic Mechanical Brass Gravity Die Casting Machine 2Hydraulic Mechanical Brass Gravity Die Casting Machine 3Hydraulic Mechanical Brass Gravity Die Casting Machine 4Hydraulic Mechanical Brass Gravity Die Casting Machine 5

Sample pictures


Hydraulic Mechanical Brass Gravity Die Casting Machine 6
Hydraulic Mechanical Brass Gravity Die Casting Machine 7

Click the link to view video:
https://www.youtube.com/watch?v=wfANIO7Hw-w&list=UUMEJdKjNOuRhrF8Kyh8fX_A&index=14

Tag:

copper die casting machine

brass die casting machine

automatic die casting machine
