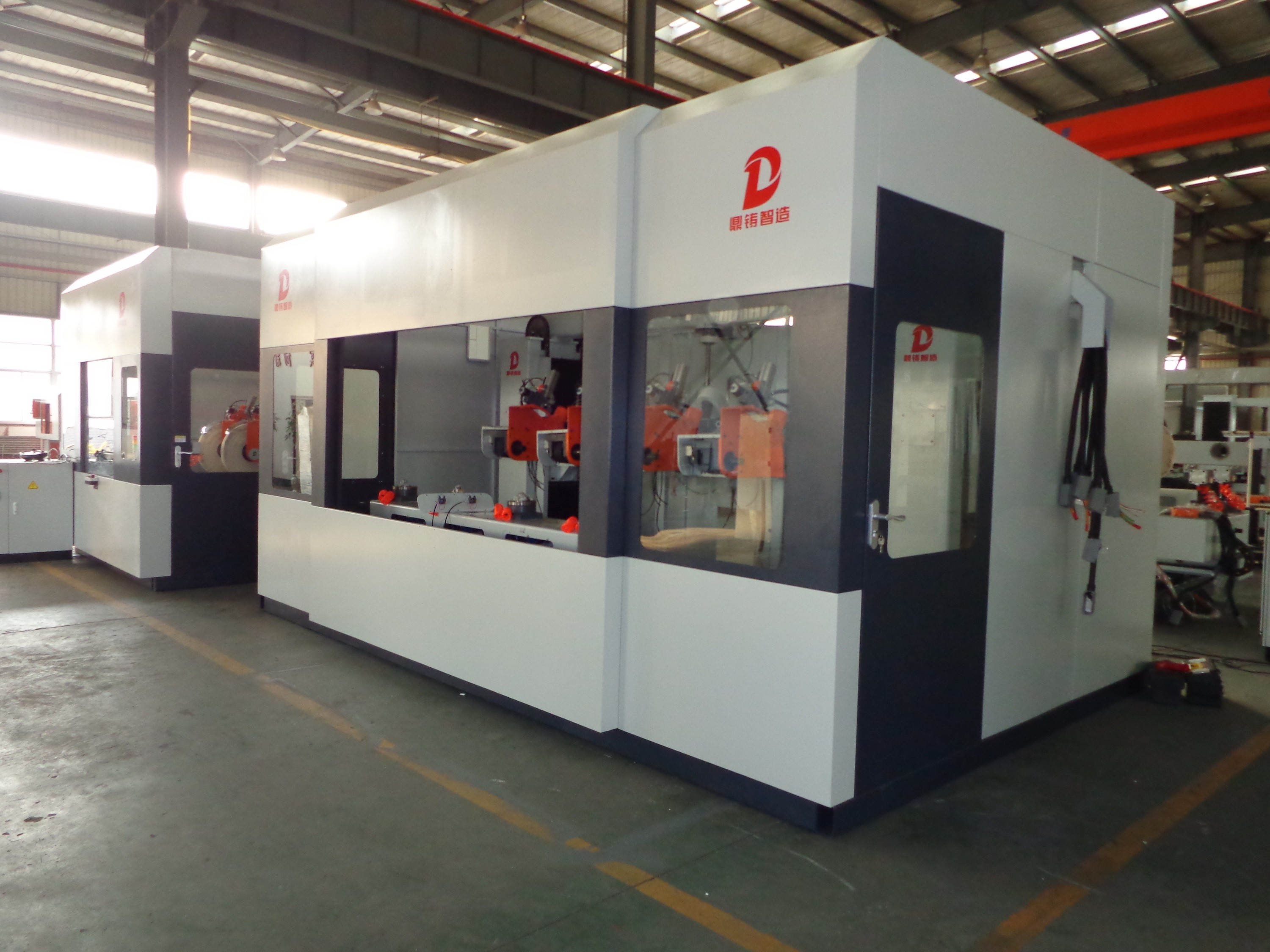

Stainless Steel PLC Control Copper Faucet Grinding Machine Automatic

Product Details:
Place of Origin: CHINA
Brand Name: DZ
Certification: CE
Model Number: NC-62
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: wood
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30sets

Detail Information

Weight: 6000KG Voltage: 380V/50Hz
Condition: 100%New After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation
Application: Machining, Deburring, Grinding, Polishing Control System: PLC
Warranty: 1 Year Function: Finishing ,buffing
High Light:

PLC Control Faucet Grinding Machine

,

Faucet Grinding Machine Stainless Steel

,

Copper Faucet Grinding Machine

Product Description

Rotary Drug Automatic Machine For Metal Products Of Complex Shapes Some Product Polishing Wheel Can'T Polish

Stainless Steel Copper Faucet Hand Grinding Polishing Machine

Mirror Polishing Machine For Faucet Bodies /Door Handle / Door Plate





Product Description



LED sapphire Quartz wafer silicon wafer high precision horizontal thinning machine tool
ceramic wafer Tungsten steel metal high precision horizontal thinning machine tool
superhard material high precision horizontal thinning machine grinding machine

silicon wafer Quartz wafer Precise Thinning machinery Equipment
Superhard Material Product high Precise Thinning machine tool
silicon wafer high precise thinning machine tool for CPU chip
Sapphire Pieces High Speed Precision Thinning Machine lapping machine
Wafer Thinning equipment lapping system machine tool
FD-400A vertical ceramics lapping machine ceramic chip thinning machine tool

Standard size 610 Large-scale Precision flat surface Lapping System machine tool surface lapping machine

Standard size 910 Large-scale Precision flat surface grinding System surface grinding machine tool

Standard size 1600 Large-scale Precision flat surface Lapping System machine tool 1600 surface lapping machine

Standard size 9B 13B 16B Double Sided high Precision flat surface grinding System surface grinding machine tool





PRODUCT  PARAMETERS



No Items Specifications
1 Dimensions (L*W*H) 3000*3100*2900mm
2 Machine Power 17KW
3 Rated Voltage 380V
4 Max. Diameter of polishing wheel 600mm
5 Min. Diameter of polishing wheel 400mm
6 X-Axis travel (mm) 1100
7 Y-Axis travel (mm) 900
8 Z-Axis travel (mm) 700
9 U-Axis travel (mm) ±60°
10 V-Axis travel (mm) ±360°
11 W-Axis travel (mm) ±360°
12 Max.speed X axis 20m/min
13 Max.speed Y axis 20m/min
14 Max.speed Z axis 20m/min
15 Max.speed U axis 30°/sec.
16 Max.speed V axis 30°/sec.
17 Max.speed W axis 30°/sec.

Stainless Steel PLC Control Copper Faucet Grinding Machine Automatic 0Stainless Steel PLC Control Copper Faucet Grinding Machine Automatic 1Stainless Steel PLC Control Copper Faucet Grinding Machine Automatic 2Stainless Steel PLC Control Copper Faucet Grinding Machine Automatic 3Stainless Steel PLC Control Copper Faucet Grinding Machine Automatic 4Stainless Steel PLC Control Copper Faucet Grinding Machine Automatic 5Stainless Steel PLC Control Copper Faucet Grinding Machine Automatic 6Stainless Steel PLC Control Copper Faucet Grinding Machine Automatic 7Stainless Steel PLC Control Copper Faucet Grinding Machine Automatic 8



Feature



1.The automatic polishing machine is an exclusive polishing system consisting 4 manipulators with of 6 Axis rotary system; Multiple stations simultaneous operation ensures high flexibility and high product efficiency.



2. The control system adopts PROMAX motion control technology from Italy, with stable performance and high control accuracy.



3. Programming method: teaching programming ,with portable handed device, contains manually mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-set parameters program.



4.Polishing pressure and wear compensation control performance: When the polishing cloth wheel is worn out, the system can detect that the torque has become smaller and automatically the compensation in all directions.



5.Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed and compensation;



6. Program setting of add polishing wax:free setting of wax spraying time and frequency according to the characteristics of product.choice of slid compound or liquid compound.



7.Fully digital control, it can store 50 programs. Programs can be saved and recalled at any time.



8.CN/EN language display on Touch Panel. It is to set all parameters for an easy operation; fault codes display and alarm pages for quick troubles shooting and repair.
