Brass 5HP Hydraulic Motor Pouring Casting Machine For Faucet
| Brand Name: | DZ |
| Model Number: | HZ-450 |
| MOQ: | 1set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C,T/T,Western Union |

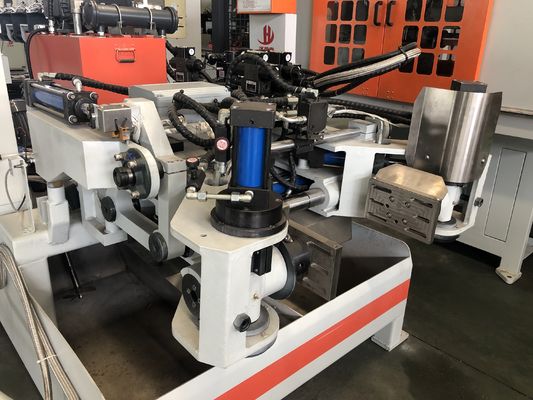

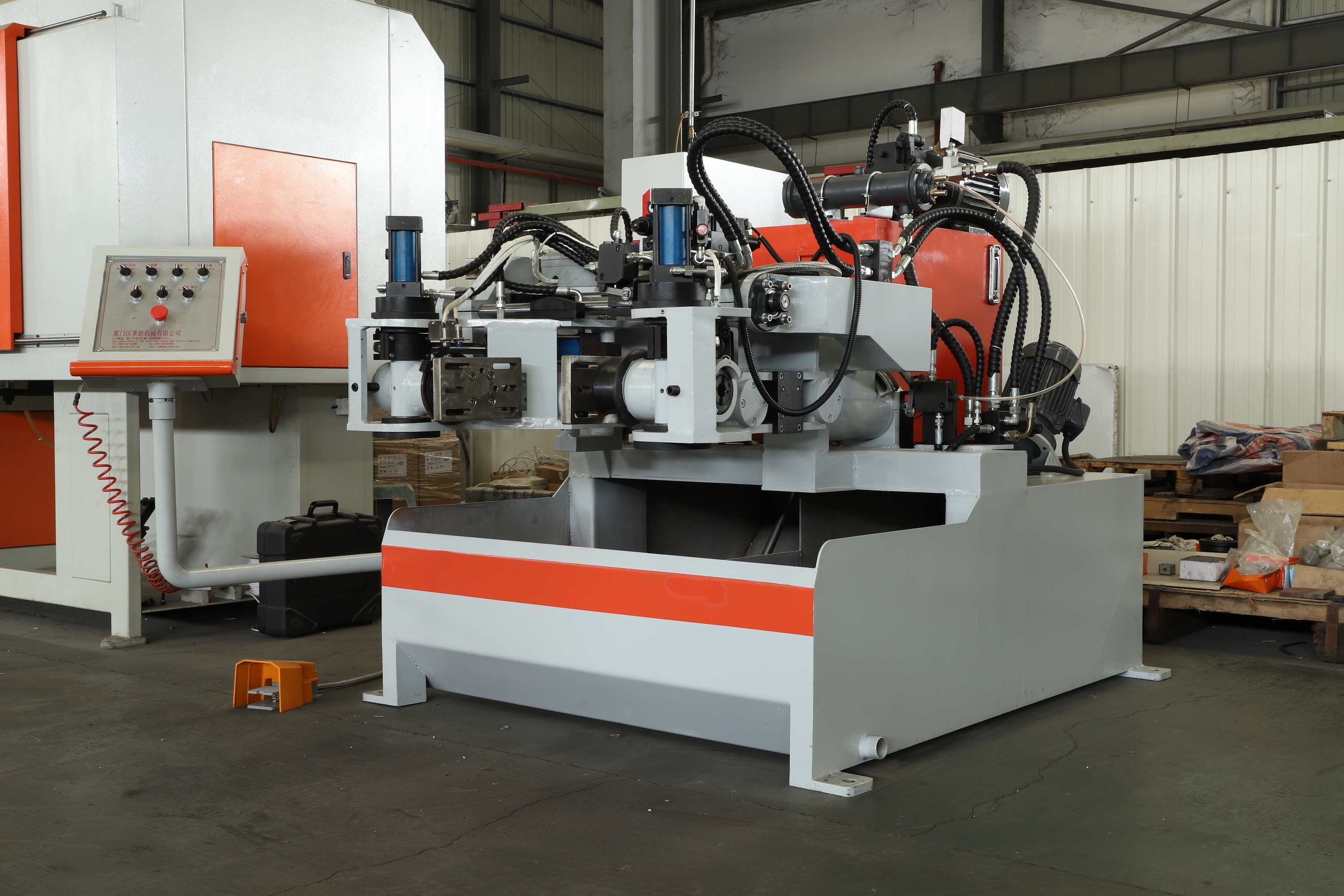

5HP Hydraulic Motor Pouring Casting Machine
,Faucet Brass Die Casting Machine
This machine is used for the casting of brass and other copper alloys poured by gravity into the die, to obtain medium/large size pieces or small size pieces by using multi-cavity dies.
The machine, being a new generation gravity casting machine, is designed taking into consideration operator safety and ergonomics.
The main characteristics of this new concept machine are as follows:
Mechanical structure, which is far more robust, with all vital parts mounted in accessible and protected positions.
The dipping tank is an independent unit and can be easily removed if necessary. Furthermore during operation they are protected from sand, grease and oil accidentally falling into them.
The machine is supplied with a variable displacement pump, allowing to extend the life of the pump and to be much more silent.
Hydraulic and electric components, cylinders, and valves are also standard for easy replacement.
| # | Name | Specification |
|---|---|---|
| 1 | Max. Die size | Φ450mm |
| 2 | Max. Die working distance | 450mm |
| 3 | Max. Die Weight | 130kg |
| 4 | Max. Clamping distance | ≦250mm |
| 5 | Hydraulic Motor | 5Hp,6 degree |
| 6 | Hydraulic Pressure | 4～6Kpa |
| 7 | Side Casting Angle | 0°～90° |
| 8 | Direct Casting Angle | 0°～110° |
| 9 | Stirring motor | 0.75kw,6 degree ×2 |
| 10 | Cooling tank | 850kg |
| 11 | Hydraulic oil volume | 163L |
| 12 | Machine Power | 5.5kw |
| 13 | Machine Weight | 1750kg |
| 14 | Dimension(LXWXH) | 2250mm×2160mm×1560mm |
