| Brand Name: | DZ |
| Model Number: | NC-64 |
| MOQ: | 1unit |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |
Faucet Abrasive Belt Grinders Hand Grinding And Polishing Machine Sand Belt Buffing Polishing Machine For Metal Parts

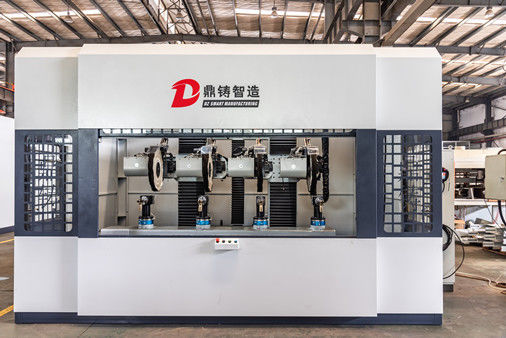

Automatic Polishing Machine CNC 6 Axis Faucet Polishing Machine
Precision polishing.
-Uniform polishing quality without deformation of the processed parts.
-High production. Four working stations work simultaneously,and with one time programming,the machine can finish the polishing and buffing jobs of four work pieces one time.
-Full auto,waxing system;
-Quick replacement of the fixtures.
-Quick replacement of the polishing mops.
-Cost-reduction in the amount of fixtures.
-Important reduction in mops and polishing compounds consumption.
-Polishing system avoiding excessive temperature of the parts during the working process.
-Quick and easy programming. Interactive Teach System.
-Finish the polishing/buffing jobs in any angle and position;
-High profitability and amortisation. One single operator can handle several machines by synchronizing the working cycles.
TECHNICAL PARAMETERS
| No | Items | Specifications |
| 1 | Dimensions (L*W*H) | 3000*3100*2900mm |
| 2 | Machine Power | 17KW |
| 3 | Rated Voltage | 380V |
| 4 | Max. Diameter of polishing wheel | 600mm |
| 5 | Min. Diameter of polishing wheel | 400mm |
| 6 | X-Axis travel (mm) | 1100 |
| 7 | Y-Axis travel (mm) | 900 |
| 8 | Z-Axis travel (mm) | 700 |
| 9 | U-Axis travel (mm) | ±60° |
| 10 | V-Axis travel (mm) | ±360° |
| 11 | W-Axis travel (mm) | ±360° |
| 12 | Max.speed X axis | 20m/min |
| 13 | Max.speed Y axis | 20m/min |
| 14 | Max.speed Z axis | 20m/min |
| 15 | Max.speed U axis | 30°/sec. |
| 16 | Max.speed V axis | 30°/sec. |
| 17 | Max.speed W axis | 30°/sec. |
|
