Multi Cavity PLC Controlled Gravity Die Casting Machine For Ferrous Alloy

Brand Name: DZ
Model Number: HZ-450
MOQ: 1set
Price: Negotiable
Packaging Details: wood
Payment Terms: L/C, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China(Mainland)
Certification:
CE
Condition:
New
Warranty:
1year
Name:
Brass Die Casting Machine
Technology:
Gravity Die Casting Technology
Usage:
Foundry Pieces Production
Raw Material:
Brass Copper Zinc Aluminum Steel Iron Alloy
Supply Ability:
30 Set/Sets per Month
Highlight:

Ferrous Alloy Gravity Die Casting Machine

,

Multi Cavity Gravity Die Casting Machine

,

PLC controlled Gravity Die Casting Machine

Product Description

Gravity Die Casting Machine For Gravity Die Casting Of Brass And Ferrous Alloy

This machine is used for the casting of brass and other coppe ralloys poured by gravity into the die, to obtain medium/large size pieces or small size piecesby using multi-cavity dies.
The machine, being a new generation gravity casting machine, is designed taking into consideration operatorsafety and ergonomics.
The main characteristics of this newconcept machine are as follows:
Mechanical structure,which is far morerobust,with all vital parts mounted inaccessible and protected positions.

The dipping tank is an independent unit and can be easily removed ifnecessary. Furthermore during operation they are protected fromsand, grease and oil accidentally falling into them.
The machine is supplied with avariable displacementpump, allowingto extend the life of the pump and tobe much more silent.
Hydraulic and electric components,cylinders, and valves are also standardfor easy replacement.


Machine features:



  • The circuit is controlled by PLC, the data is set by touch screen and all hydraulic components are imported.
  • It is suitable for gravity die casting of brass and ferrous alloy.
  • It can be frontal casting, side casting, twice casting and mixed casting.
  • It is possible to individually adjust the cooling time of the die.
  • It facilitates the decomposition, combination and cleaning of dies.
  • It has two functions of manual and automatic circulation, the counter can be preset, to record the output of each shift.
  • There is a die adjustment space to facilitate the application of different dies, and reduce the requirements for the die size.
  • The machine can store the die casting operation programs and set the password accordingly.







Main Technical Specifications

# Name Specification
1 Max. Die size Φ450mm
2 Max. Die working distance 450mm
3 Max. Die Weight 130kg
4 Max. Clamping distance ≦250mm
5 Hydraulic Motor 5Hp,6 degree
6 Hydraulic Pressure 4～6Kpa
7 Side Casting Angle 0°～90°
8 Direct Casting Angle 0°～110°
9 Stirring motor 0.75kw,6 degree ×2
10 Cooling tank 850kg
11 Hydraulic oil volume 163L
12 Machine Power 5.5kw
13 Machine Weight 1750kg
14 Dimension(LXWXH) 2250mm×2160mm×1560mm

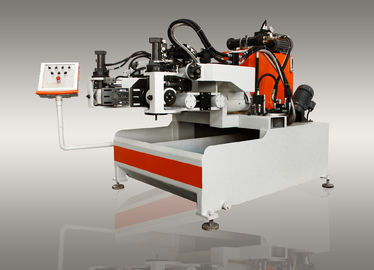

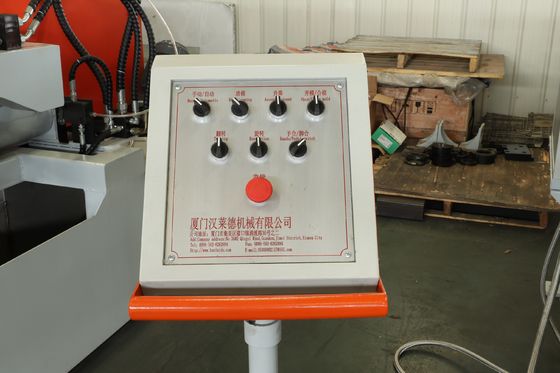

Multi Cavity PLC Controlled Gravity Die Casting Machine For Ferrous Alloy 0Multi Cavity PLC Controlled Gravity Die Casting Machine For Ferrous Alloy 1



Sample pictures

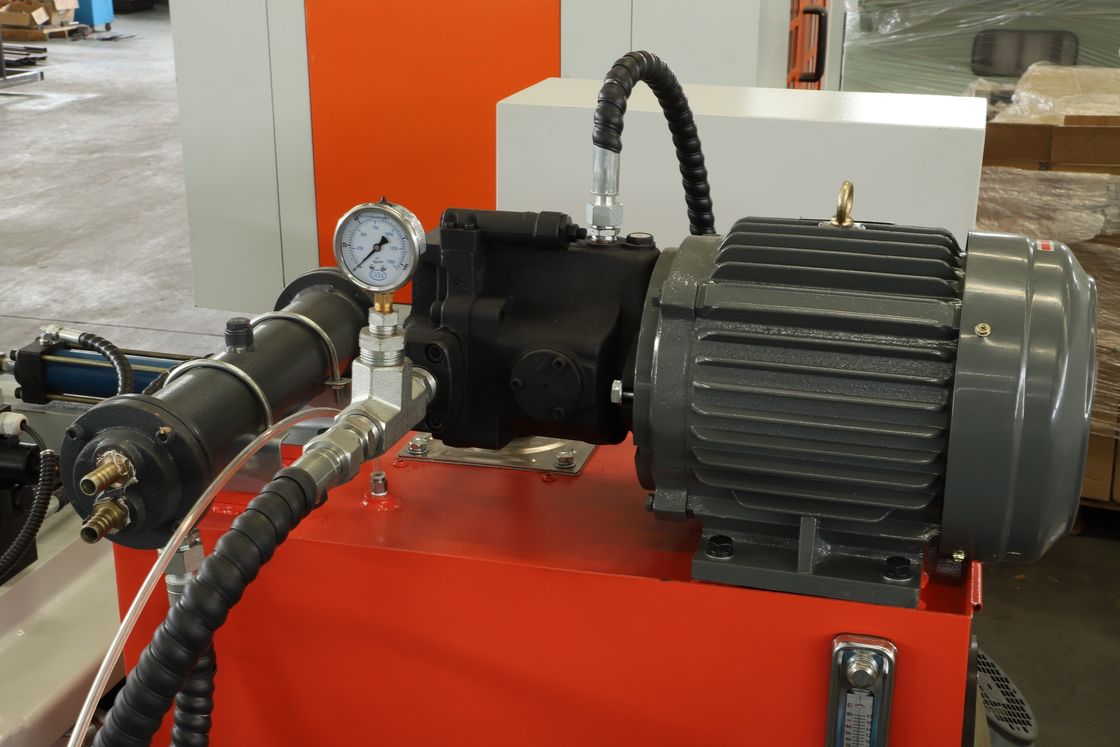

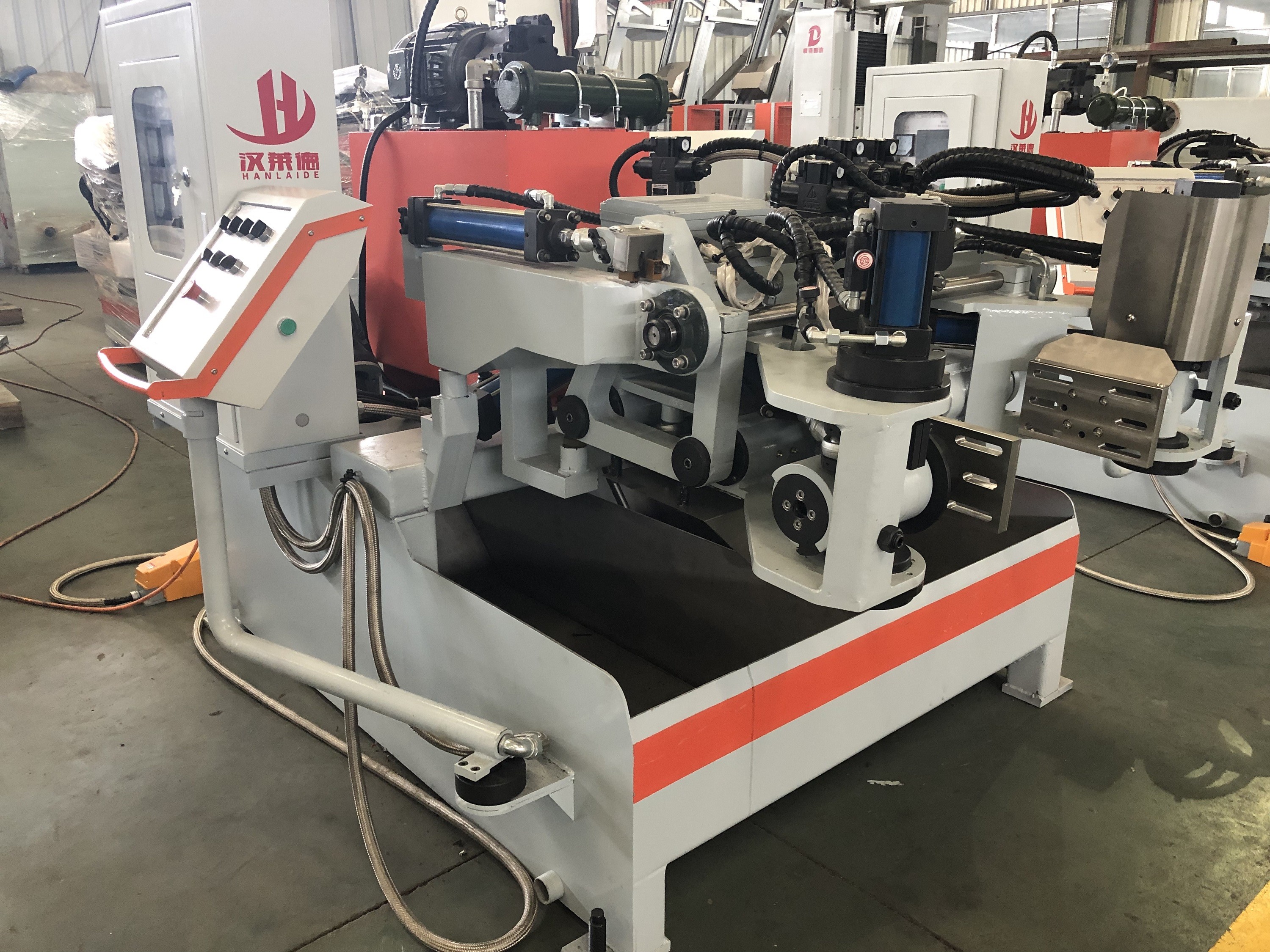

Multi Cavity PLC Controlled Gravity Die Casting Machine For Ferrous Alloy 2





Click the link to view video:

https://www.youtube.com/watch?v=wfANIO7Hw-w&list=UUMEJdKjNOuRhrF8Kyh8fX_A&index=14
