Product Details:
|
|
Place of Origin: | China(Mainland) |
---|---|
Brand Name: | DZ |
Certification: | CE ISO |
Model Number: | NC-64 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1unit |
Price: | Negotiable |
Packaging Details: | wood |
Delivery Time: | 2weeks |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 30 units/per month |
Detail Information |
|||
Dimensions (L*W*H): | 4400*3400*2900 | Machine Power: | 35KW |
---|---|---|---|
Rated Voltage: | 380V | Max. Diameter Of Polishing Wheel: | 600mm |
Min. Diameter Of Polishing Wheel: | 400mm | X-Axis Travel (mm): | 1200 |
Y-Axis Travel (mm): | 1100 | Z-Axis Travel (mm: | 700 |
U-Axis Travel (mm): | ±90° | V-Axis Travel (mm): | ±360° |
W-Axis Travel (mm): | ±360° | ||
High Light: | Robotic System CNC Polishing Machine,20m/min CNC Polishing Machine,Robotic System Faucet Polishing Machine |
Product Description

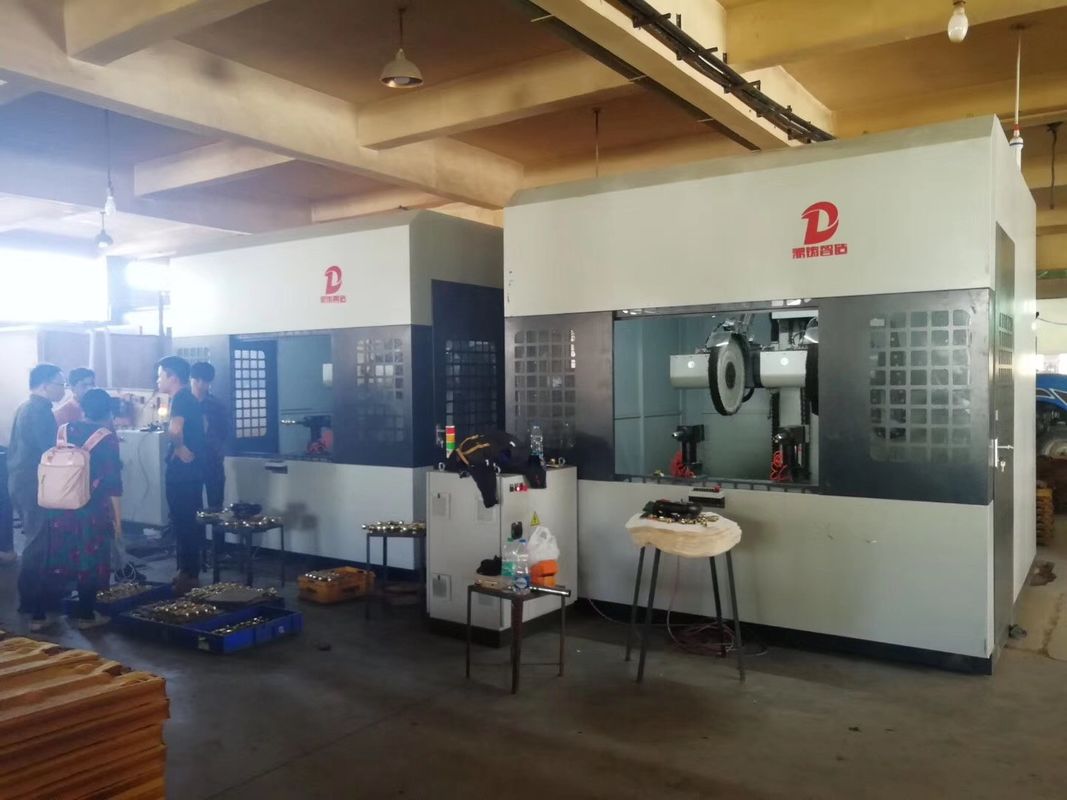

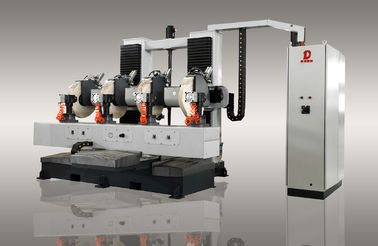

Full Automatic Abrasive Band Metal Polishing Grinding Machine With Robotic System
Automatic Polishing Machine CNC 6 Axis Faucet Polishing Machine
Precision polishing.
Precision polishing.
-Uniform polishing quality without deformation of the processed parts.
-High production. Simultaneous polishing of two equal parts in each polishing cycle.
-Flexible production. Change of series in the minimum time. The time invested in the preparation of the machine for changing the type of part to polish is about 10 minutes.
-Quick replacement of the fixtures.
-Quick replacement of the polishing mops.
-Cost-reduction in the amount of fixtures.
-Important reduction in mops and polishing compounds consumption.
-Polishing system avoiding excessive temperature of the parts during the working process.
-Quick and easy programming. Interactive Teach System.
-High profitability and amortisation. One single operator can handle several machines by synchronizing the working cycles.
TECHNICAL PARAMETERS
No | Items | Specifications |
1 | Dimensions (L*W*H) | 3000*3100*2900mm |
2 | Machine Power | 17KW |
3 | Rated Voltage | 380V |
4 | Max. Diameter of polishing wheel | 600mm |
5 | Min. Diameter of polishing wheel | 400mm |
6 | X-Axis travel (mm) | 1100 |
7 | Y-Axis travel (mm) | 900 |
8 | Z-Axis travel (mm) | 700 |
9 | U-Axis travel (mm) | ±60° |
10 | V-Axis travel (mm) | ±360° |
11 | W-Axis travel (mm) | ±360° |
12 | Max.speed X axis | 20m/min |
13 | Max.speed Y axis | 20m/min |
14 | Max.speed Z axis | 20m/min |
15 | Max.speed U axis | 30°/sec. |
16 | Max.speed V axis | 30°/sec. |
17 | Max.speed W axis | 30°/sec. |
