Automatic Mitsubishi Control System Metal Hardware Polishing Machine For Bathroom Fitting Accessories
| Brand Name: | DZ |
| Model Number: | DK850-8 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Packed in wooden cases to meet the requirements of sea transportation |
| Payment Terms: | L/C,T/T,Western Union |
Detail Information
Place of Origin:
China
Certification:
CE ISO
Weight:
6000KG
Voltage:
380V/50Hz
Condition:
100%New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support,Field Maintenance And Repair Service,Field Installation
Control System:
Mitsubishi
Warranty:
1 Year
Spindle:
8
Delivery Time:
30 days
Supply Ability:
30 sets/ month
Highlight:
Mitsubishi Control System CNC Polishing Machine
,Bathroom Fitting Accessories CNC Polishing Machine
,Mitsubishi Control System CNC Grinding Machine
Product Description
Automatic Mitsubishi Control System Metal Hardware Polishing Machine

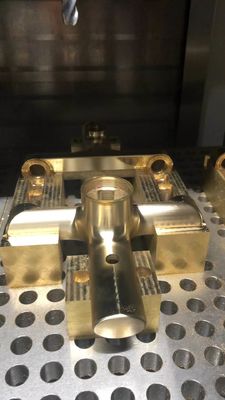

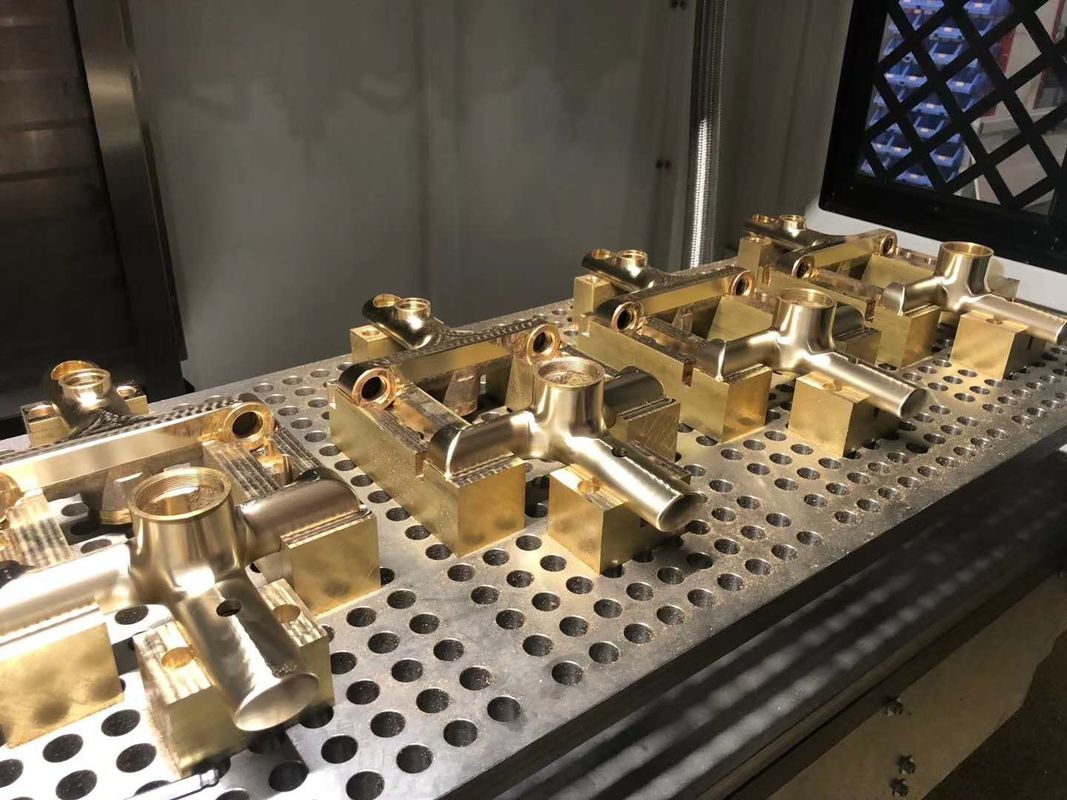

High-precision 8-head peeling machine specifically designed for brass faucet and bathroom fitting accessories polishing applications.
Peeling Machine For Brass Faucet With 8 Heads
Advanced multi-head configuration for efficient metal surface treatment and polishing operations.
Technical Specifications
Travel & Positioning
| Axis | Travel Range |
|---|---|
| X Axis | 600mm |
| Y Axis | 500mm |
| Z Axis | 500mm |
| Spindle Nose to Worktable | 90-650mm |
| Spindle Center to Column Guide | 585mm |
Worktable Specifications
| Parameter | Specification |
|---|---|
| Worktable Area | 1820 × 450mm |
| Maximum Load Capacity | 500kg |
| T-Slot Size | 3-18 × 130mm |
Spindle System
| Component | Specification |
|---|---|
| Motorized Spindle (8 units) | 5.5KW-125-ER32 |
| Spindle Speed | 24,000 rpm |
Control & Drive System
| Component | Specification |
|---|---|
| Control System | Mitsubishi |
| X Axis Motor | HG303S-D48 |
| Y Axis Motor | HG303S-D48 |
| Z Axis Motor | HG303BS-D48 |
| Spindle Servo Motor (4 units) | Sinovo 11KW |
Performance Metrics
| Parameter | Specification |
|---|---|
| Rapid Travel Rate | 48,000 mm/min |
| Chip Feed Rate | 0-10,000 mm/min |
| Positional Accuracy | JIS ±0.005/300 |
| Repeated Positioning Accuracy | JIS ±0.005/300 |
Physical Specifications
| Parameter | Specification |
|---|---|
| Machine Protection | Overall Protection Cover |
| Machine Weight | 6,000 kg |
| Machine Dimensions | 3400 × 2600 × 3000 mm |
