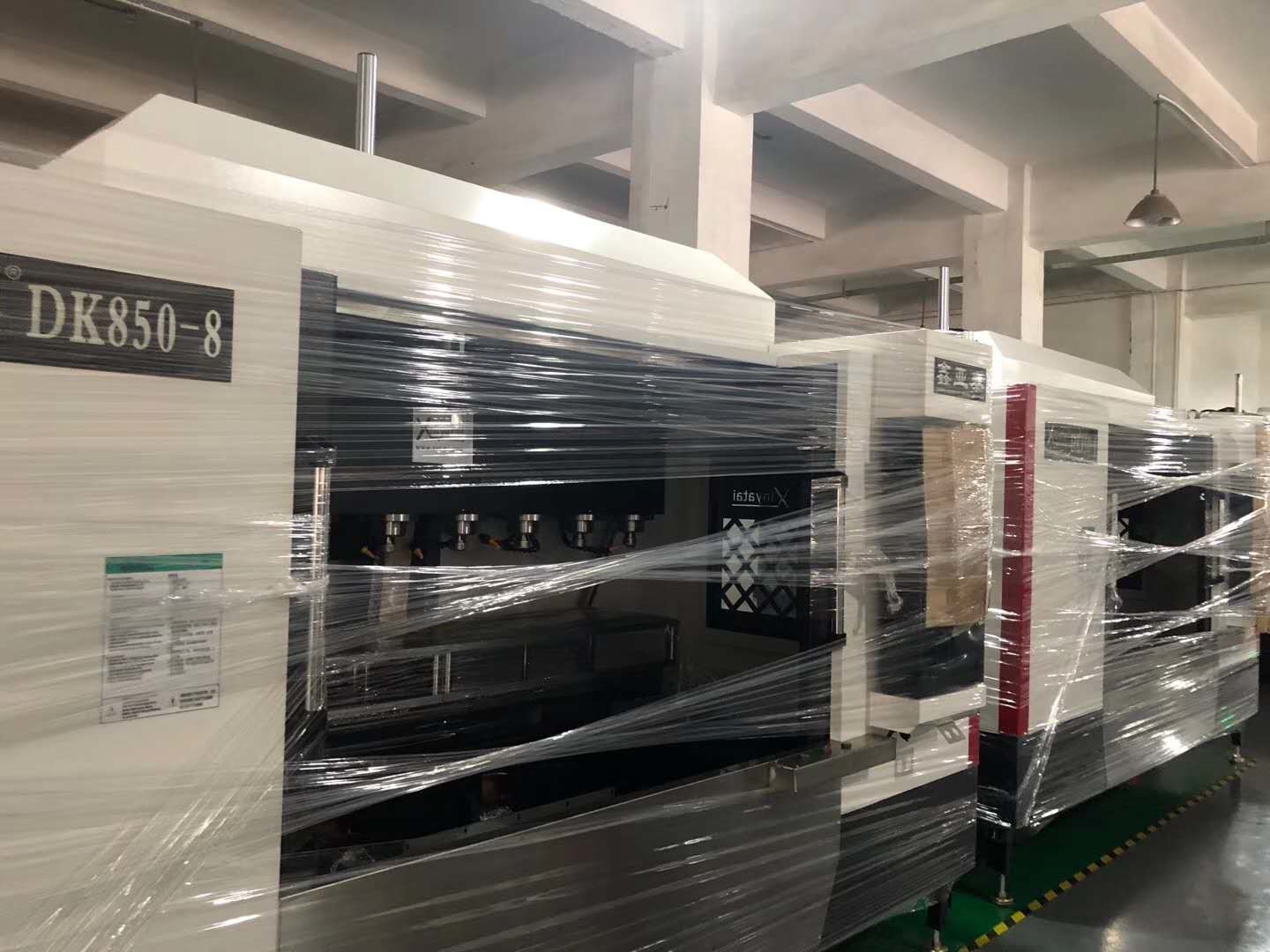

Brass Faucet Peeling Machine 380V 50Hz With 8 Spindle

Name: Brass Faucet Peeling Machine 380V 50Hz With 8 Spindle
Brand: DZ
SKU: DK850-8
Rating: 4.5 (171 reviews)

Product Details:
Place of Origin:	China
Brand Name:	DZ
Certification:	CE ISO
Model Number:	DK850-8
Payment & Shipping Terms:
Minimum Order Quantity:	1 set
Packaging Details:	Packed in wooden cases to meet the requirements of sea transportation
Delivery Time:	30 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 sets/ month

Contact Now

Detail Information
Weight:	6000KG	Voltage:	380V/50Hz
Condition:	100%New	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Video Technical Support,Field Maintenance And Repair Service,Field Installation
Control System:	Mitsubishi	Warranty:	1 Year
Spindle:	8
High Light:	Peeling Machine 380V , 8 Spindle Peeling Machine , brass faucet peeler

Product Description

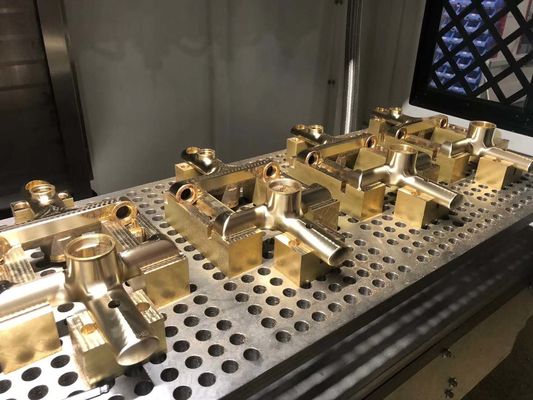

Peeling Machine For Brass Faucet With 8 heads

1. Main technical parameters of DK850-8 Peeling Machine

Travel	X axis		600mm
	Y axis		500mm
	Z axis		500mm
	Distance from Spindle nose to Worktable		90-650mm
	Distance from Spindle center to column guide surface		585mm
Worktable	Area of worktable		1820*450mm
	Maximum load of worktable		500kg
	Size of T-shape groove		3-18*130mm
Spindle	Motorized Spindle-8		5.5KW-125-ER32
	Speed of main spindle		24000 rpm
Control System (Mitsubishi)	Configuration		Mitsubishi
	Motor(Mitsubishi)	X axis	HG303S-D48
		Y axis	HG303S-D48
		Z axis	HG303BS-D48
	Sinovo Spindle servo motor-4		Sinovo 11KW
Travel rate	Quick travel rate		48000mm/min
	Chip feed rate		0～10000mm/min
Accuracy	Positional Accuracy		JIS±0.005/300
	Repeated Positioning Accuracy		JIS±0.005/300
Protection cover of machine tool	Overall protection
Machine Weight	6000kg
Machine Size	340026003000mm
