| Brand Name: | DZ |
| Model Number: | ROBOT |
| MOQ: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |
Faucet Robot Grinding Machine High Degree Of Repeatable Quality And Precision
This robotic cell polishes automatically, taking and placing the parts from the automatic loading system. A robotic cell can be used to process many different shapes of products, and can be as inclusive a polishing cell as you require. Grinding and polishing applications can be combined in a single cell.
A Robotic cell polishing is a very versatile polishing cell, thanks to the use of an anthropomorphic robots with six axis of motion. Constructed as a polishing island with autonomous units for polishing, buffing, and grinding within a safety surrounding, it is possible to obtain a high degree of repeatable quality and precision.
The polishing and grinding is performed on brushes, abrasive belts, or polishing mops by a robot that takes the pieces to be polished from the appropriate loader and carries out the working cycle on the polishing stations.
The polishing groups are designed according to many parameters and characteristics, but also the model and the amount of installed robots changes depending on the working requirements for polishing, buffing and grinding.
| NO. | QUANTITY | DESCRIPTION | |

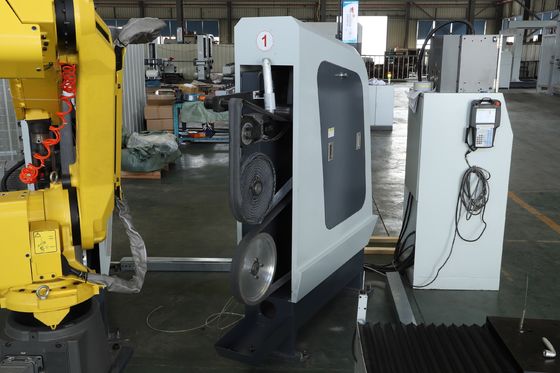

| 1 | 2 | Sand Belt Machine 1.1The working wheel is equipped with denim buren standard, which can realize a variety of sand belt hanging method, and meet the requirements of different product grinding process 1.2 The mould function in the middle ensures the polishing of complex products 1.3 Sand belt wear control system, improve machining stability and sand belt life 1.4 sand belt break detection function, automatic identification of sand belt working state 1.5Foam bar mechanism or soap mechanism, reduce fine abrasive belt sticky sand, heat and other problems | |
| 2 | 1 | Feed Table 2.1 The feeding table is set with double working positions, high positioning accuracy and flexible floating working energy 2.2 After the processing is completed, the machine will quit automatically and prompt the operator to change the product. 2.3 Each station can hold 10-20 pieces of products |
|
| 3 | 1 | Sand belt machine control system | |
| 4 | 1 | manipulator | |

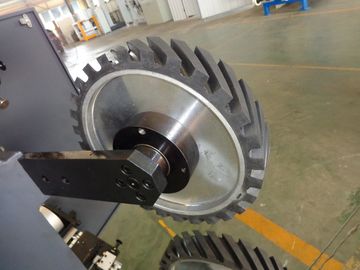

| 5 | 1 | contact wheel | |
| 6 | 1 | fixture ,automatic feed tray | |
| III: TECHNICAL PARAMETERS | ||||
| To fulfill the different product weight and sizere quirement,different requirements for belt sander of customers,we have 4 models for customer options. | ||||
| 20GA Specifications | 20GBSpecifications | 35GSpecifications | 50GSpecifications | |
| Robot Cell | FUNAC | FUNAC | FUNAC | FUNAC |
| Robot Model | 20iA/20 | 20iA/20 | 20iA/35 | 20iA/50 |
| Rated Voltage | 380V | 380V | 380V | 380V |
| Machine Power | 7.6KW | 10.5KW | 11KW | 16KW |
| Sand Belt Machine Quantity | 1 | 2 | 2 | 2 |
| Sand Belt Quantity | 4 | 4 | 4 | 4 |
| Sand Belt Dimensions | 3000mm×4 | 3000mm×4 | 4000mm×4 | 4000mm×4 |
| Feed Table | 1 | 1 | 1 | 1 |
Click the link to view video:
https://www.youtube.com/watch?v=kv3QiZceUxI&list=UUMEJdKjNOuRhrF8Kyh8fX_A&index=7
|
|
