| Brand Name: | DZ |
| Model Number: | NC-62/64 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |

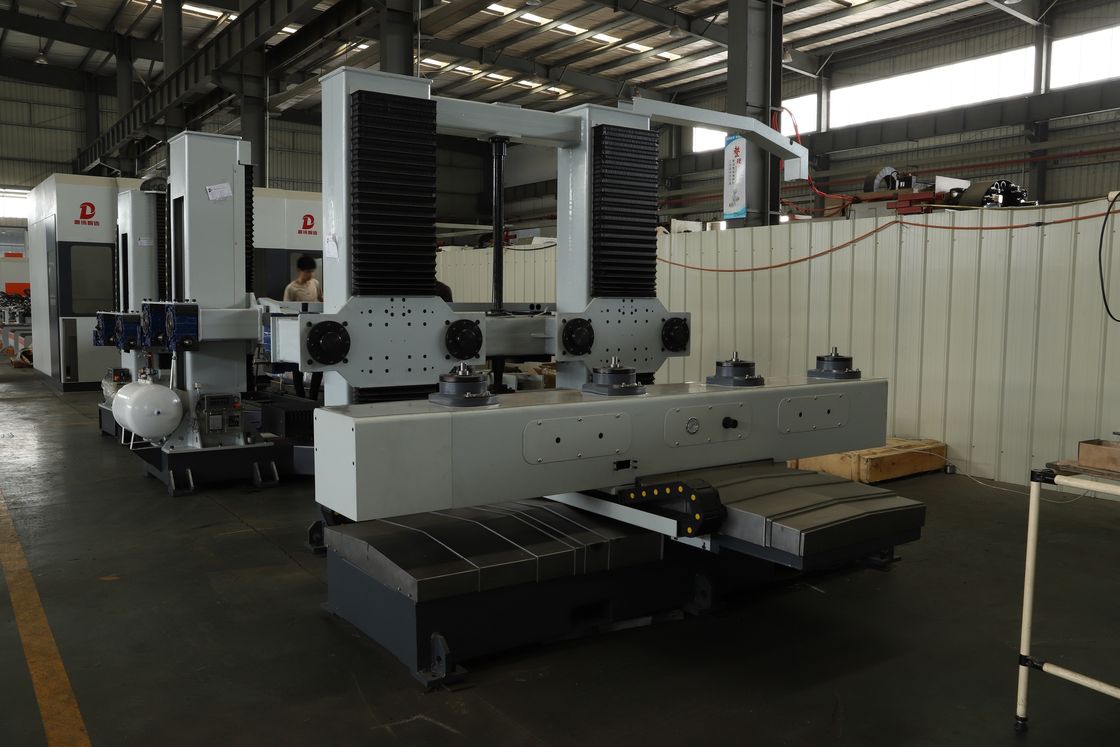

Intelligent Industry Robotic Polishing Machine Arm Automatic Polishing Machine For Taps
1.Easy operation
2.High efficiency
3.The surface polish is perfect
4.Stable quality
5.Labor cost saving
| II:Main technical parameters | |||
| # | Item | Parameter | Remarks |
| 1 | Size | 3000×3160×2772(L×W×H) | |
| 2 | Power | 16.25KW | |
| 3 | Rated Voltage | 380V 50Hz | |
| 4 | Max. Polishing Mop Diameter | 600mm | |
| 5 | Min. Polishing Mop Diameter | 400mm | |
| 6 | X Axis Travel | 1100 | |
| 7 | Y Axis Travel | 900 | |
| 8 | Z Axis Travel | 700 | |
| 9 | U Axis Travel | ±60° | |
| 10 | V Axis Travel | ±360° | |
| 11 | Operating Voltage | 380V | |
| Table Size (LxW) | 2740*375mm | ||
| Height from Ground (without fixture) | 880mm | ||
| Jig Rotating Speed | 20RPM | ||
| Station Size/Working Dia (max) | 350mm | ||
| Station Rotational speed Motor | 1500rpm | ||
| III | BASIC EQUIPMENT | ||
| # | Item | Brand | Remark |
| 1 | Motion control system | PROMAX Italy | |
| 2 | Servo motor | PROMAX Italy | |
| 3 | Variable frequency compensation system+Control card | AELTA | |
| 4 | Cloth wheel motor spindle | SIEMENS | |
| 5 | Main low voltage electrical | SCHNEIDER | |
| 6 | Linear guide rail and screw | HIWIN | |
| 7 | Reduction box | Rossi Italy | |
| 8 | Bearing | NSK | |
| 9 | Steering gear of fixture | TAIWAN | |
| 10 | Components clamping | Penumatic | |
| 11 | Table Type | Movable - table moving by the screw rod/ball screw. Driven by servo motor | |
|
|
