Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | DZ |
Certification: | DZ ISO |
Model Number: | HZ-450 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | wood |
Delivery Time: | 20days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 30sets/per month |
Detail Information |
|||
Condition: | New | Warranty: | 1 Year |
---|---|---|---|
Type: | Die Casting | Voltage: | 220V/380V |
Computerized: | Yes | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Installation |
Weight: | 1750 | Dimension(l*w*h): | 2250x2160x1560 |
Power(w): | 5.5KW | Function: | High Effieciency |
Highlight: | brass die casting machine,copper die casting machine |
Product Description

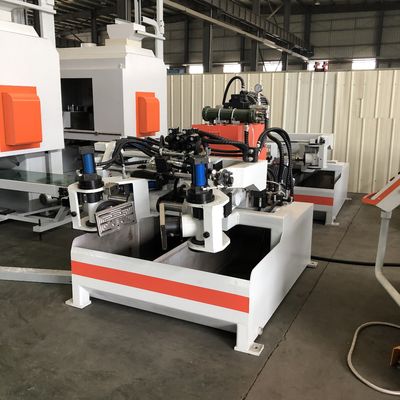

High - Efficiency Gravity Die Casting Machine For Brass And Zinc Alloy Products
1.Easy operation
2.Can be pouring by manual or by automatic robot manipulator
3.Perfer die casting quality
4.Controlled by PLC,and all hyreaulic components
5.suitable for gravity die casting of brass and ferroalloy
6.Is a die adjustment space to facilitate the application of different dies, and reduce the requirements for the die size.
# | Name | Specification |
1 | Max. Die size | Φ450mm |
2 | Max. Die working distance | 450mm |
3 | Max. Die Weight | 130kg |
4 | Max. Clamping distance | ≦250mm |
5 | Hydraulic Motor | 5Hp,6 degree |
6 | Hydraulic Pressure | 4~6Kpa |
7 | Side Casting Angle | 0°~90° |
8 | Direct Casting Angle | 0°~110° |
9 | Stirring motor | 0.75kw,6 degree ×2 |
10 | Cooling tank | 850kg |
11 | Hydraulic oil volume | 163L |
12 | Machine Power | 5.5kw |
13 | Machine Weight | 1750kg |
14 | Dimension(LXWXH) | 2250mm×2160mm×1560mm |
Click the link to view video:
https://www.youtube.com/watch?v=wfANIO7Hw-w&list=UUMEJdKjNOuRhrF8Kyh8fX_A&index=14
