Sanitary Fittings CNC Polishing Machine Without Polishing Wax And Polishing Wheel

Good quality Automatic Polishing Machine for sales
Good quality Automatic Polishing Machine for sales
I'm Online Chat Now

Sanitary Fittings CNC Polishing Machine Without Polishing Wax And Polishing Wheel

China Sanitary Fittings CNC Polishing Machine Without Polishing Wax And Polishing Wheel supplier
Sanitary Fittings CNC Polishing Machine Without Polishing Wax And Polishing Wheel supplier Sanitary Fittings CNC Polishing Machine Without Polishing Wax And Polishing Wheel supplier Sanitary Fittings CNC Polishing Machine Without Polishing Wax And Polishing Wheel supplier

Large Image :  Sanitary Fittings CNC Polishing Machine Without Polishing Wax And Polishing Wheel

Product Details:

Place of Origin: China
Brand Name: DZ
Certification: CE ISO
Model Number: HT3320

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wood
Delivery Time: 20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30sets/per month
Contact Now
Detailed Product Description
Power: 28.7KW Production Power: 11KW
Total Weight: 14T Workstations: 3
Hangers/workstation: 32 Max.size Of/hanger: Ø180*350
Machine Size: 4300*2500*2400 Dimensional: 4500*3400*2900
Electric Cabinet Size: 500*700*1800 RPM: 0~90r/min

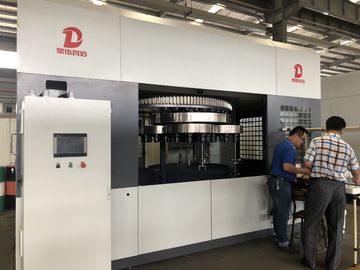

Sanitary Fittings CNC Polishing Machine Without Polishing Wax And Polishing Wheel



Feature:

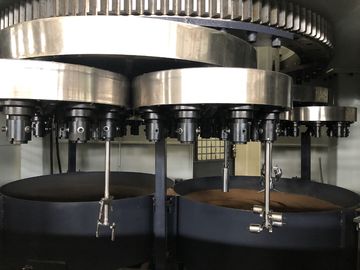

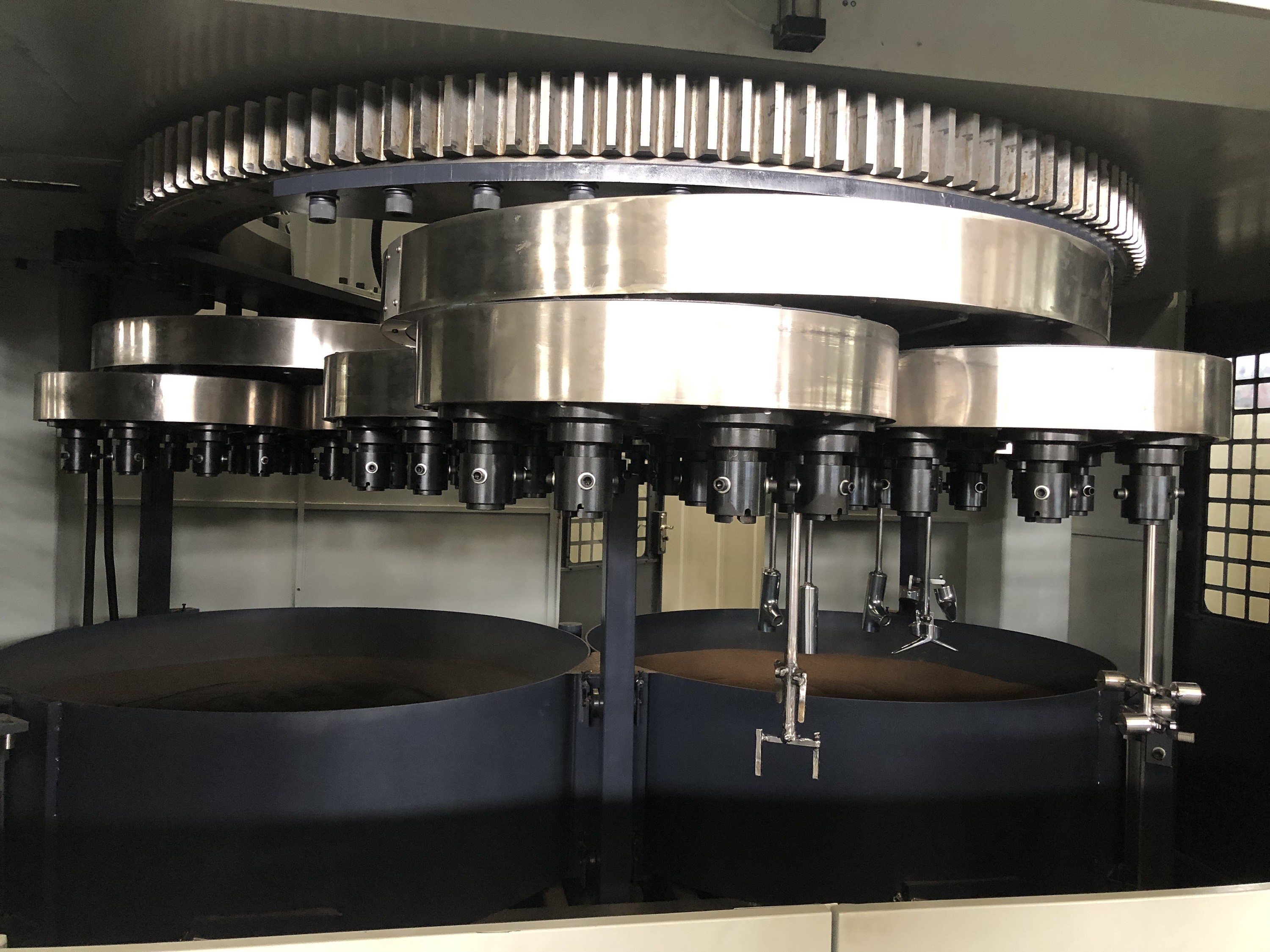

1.Rotary automatic polishing machine,consists of 3 workstations and 2 material tanks.

2.One of the workstations is used for loading and unloading while the other two workstations are used for coarse polishing and fine polishing at the same time.

3.Each station consists of 32 hangers and each one can clamp 4-6pcs,about 25 min can polished 4X32=128-192PCS.So we have 25min can changeover and load.(according to the size of products )

4.The quantity of one circle polishing is not required,and can polishing different product at the same time.

5.About the polishing materials:Walnut shell grain mix grinding wax and paraffin wax,brightener(Varnish,refined mineral oil,PTFE and hardeners),was our trade secret.

6.Sustainable use 6 months(20hours/shift),Cheaper than using polished wax and cloth wheels.And qty:650KG/material tank,2 material tanks total 1300KG.

7.No need debug,easy operation.

8.No need dedust,security and environmental protection.

9.Mirror polishing ,perfect polishing effect,No grain like polished by polishing wheel.

10.Plating before treatment is very easy.

11.The fixture can quick loading and unloading, flexible clamping, easy to operate.

Code Item Parameters Remark
1 Dimensional 4500*3400*3000
2 Power 30.2KW
3 Voltage 380V 50Hz
4 Maximum product size Φ180*350
  Volume of grinding barrel Φ1675*550
  Qty.station 3
  N umber of jig/station 32

Sanitary Fittings CNC Polishing Machine Without Polishing Wax And Polishing Wheel

Sanitary Fittings CNC Polishing Machine Without Polishing Wax And Polishing Wheel

Sanitary Fittings CNC Polishing Machine Without Polishing Wax And Polishing Wheel
