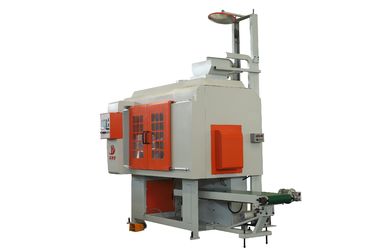

HZ -360 Core Shooting Machine With Conveyor Including Automatic Loading And Unloading

China HZ -360 Core Shooting Machine With Conveyor Including Automatic Loading And Unloading supplier

Large Image :  HZ -360 Core Shooting Machine With Conveyor Including Automatic Loading And Unloading

Product Details:

Place of Origin: China
Brand Name: DZ
Certification: CE ISO
Model Number: HZ-360

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: wood
Delivery Time: 2weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30set/per month
Contact Now
Detailed Product Description
Warranty: 1year Weight Of Sand Core: 6KG
Heating Power: 9.6KW Total Power: 10KW
Conveyor: 2200x400x100mm Speed Of Lift (Single Time): 35s



HZ -360 Core Shooting Machine With Conveyor Including Automatic Loading And Unloading





Machine construction features:

1. human-machine interface and imported high quality electronic control and pneumatic components to ensure accurate and reliable control and easy operation.

2. there are three modes: manual, single action and automatic.

3. the shooting port is 70 degrees to the sand, away from the high temperature area, so that the perforation is easy to manually clean.

4. The machine is equipped with integral moving mechanism of the base, which can make the base move along the X and Y axes, so that the perforation of the opposite mold into the sand hole more convenient and accurate.

5. The movable die is equipped with the core pulling rack to meet the special requirements of the mold. If you do not use core pulling, close the core pulling switch.

6. The angle of the quicksand in the sand storage bucket reaches 70 degrees and is equipped with a vibrating motor. It is suitable for the use of collapsible core sand with poor fluidity in the copper casting and aluminum industry.

7. With mold adjustment space, it is convenient to assemble different molds and reduce the requirements for the die size.



HZ -360 Core Shooting Machine With Conveyor Including Automatic Loading And Unloading
