Full Automatic Robotic Polishing Machine Easy Operation With Robotic Manipulator

Good quality Automatic Polishing Machine for sales
Good quality Automatic Polishing Machine for sales
I'm Online Chat Now

Full Automatic Robotic Polishing Machine Easy Operation With Robotic Manipulator

China Full Automatic Robotic Polishing Machine Easy Operation With Robotic Manipulator supplier
Full Automatic Robotic Polishing Machine Easy Operation With Robotic Manipulator supplier Full Automatic Robotic Polishing Machine Easy Operation With Robotic Manipulator supplier

Large Image :  Full Automatic Robotic Polishing Machine Easy Operation With Robotic Manipulator

Product Details:

Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE ISO
Model Number: NC-64

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $70,000.00 - $90,000.00 / unit
Packaging Details: wood
Delivery Time: 2weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 units/per month
Contact Now
Detailed Product Description
Condition: New Warranty: 1 Year
Fter-sales Service: Overseas Third-party Support Available Application: Metal Polishing
Name: CNC Polishing Machine Polishing Wheel Size: 400mm-600mm

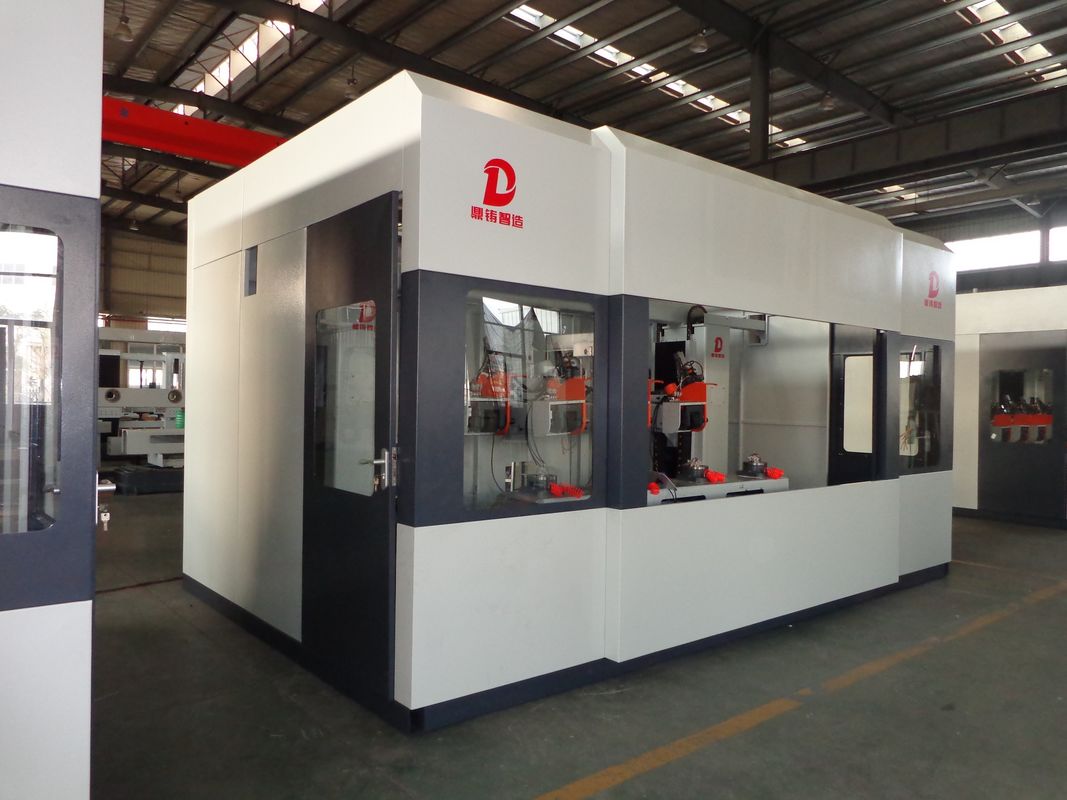

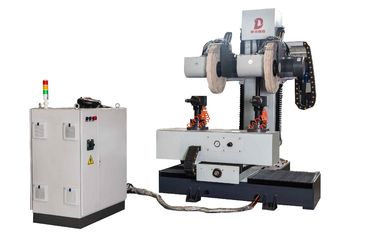

Full Automatic Robot Polish System Polishing Machine With Robotic Manipulator





NC-64 automatic can be used to polish a variety of complex shape workpieces. This equipment is especially suitable for the faucet bathroom accessories industry. Four workpieces are processed at the same time, the quality is consistent without deformation, the operation is simple, the fixture replacement is fast, the energy consumption is low, the consumable loss is small, and the high profitability investment return period is very short. It is an ideal equipment for companies to improve product quality and solve employment problems.



Feature:



1. The automatic polishing machine is an exclusive polishing system consisting 4 manipulators with of 6 axises rotary; Multiple stations simultaneous operation high flexibility and high product efficiency. Widely used in sanitary ware, door control, auto parts field products polishing

2. With Italy advanced control system for high precision of control and high stability of move technology.

3. Software: Programmable, with protable handed device, contains manually mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-settled parameters program.

4. Polishing pressure and wear compensation control performance: When the polishing cloth wheel is worn out, the system can detect that the torque becomes smaller and automatically the compensation in all direction

5. Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed and compensation;

6. Solid polishing wax, to set up the wax spraying cycle time, frequency.

Select fixed wax and liquid wax according to product features

7. Full digital control, Can store 50 programs

polishing program parameters can be saved and adjusted at any time.

8. CN/EN language display on Touch Panel. to set all parameters for an easy operation;fault codes display and alarm pages for quick troubles shooting and repair.



Full Automatic Robotic Polishing Machine Easy Operation With Robotic Manipulator
