| Brand Name: | DZ |
| Model Number: | Robot |
| MOQ: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |

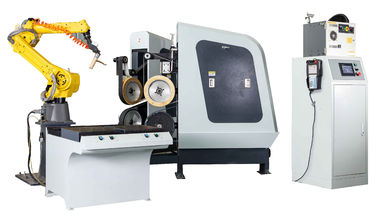

-The robotic automatic polishing and polishing system is fully automatic controlled by an industrial robot, can be repeatedly edited, and can perform various polishing and polishing operations in three dimensions. The robot hand grips the vehicle with a bearing capacity of 50-80KG and an arm length of 1900~2150mm. The polishing machine has a plurality of available grinding contact wheels. During the grinding process, the robot can control the belt speed, automatically adjust the tension of the belt, and automatically select the currently available contact wheel.
-The robot polishing machine has an automatic position compensation function. During the grinding process, the wear of the polishing wheel can be automatically detected, and the position of the polishing wheel is automatically adjusted to compensate for the position error caused by the wear of the polishing wheel. Polishing machine with belt break alarm functionWhen performing complex surface workpiece polishing, it can guarantee the surface quality of the workpiece compared with ordinary mechanical polishing and manual polishing. The processed products have high quality consistency and the processing efficiency is greatly improved.
Consistency:
Polishing and polishing is a tedious and repetitive work, and the robot can work continuously and stably. Improve quality: Robots can work continuously without fatigue, which is very suitable for this job. Employee safety: The related operations have safety hazards and the robots reduce the safety risks of the factory. Environmentally friendly: The dusty environment at the polishing site is extremely harsh, and the robot can work safely in smoke and dust. Reduce waste: Automated robotic polishing systems make it easy to provide consistent and versatile products that need to ensure a uniform, thorough polishing of the product. Reduce cycle time: Polished and polished robots are programmed to apply the right amount of pressure, just moving in the right direction, resulting in faster, more efficient performance than manual applications.
Application:
polishing and polishing of various die-casting parts such as auto parts, sanitary ware products, hardware parts, etc.
TECHNICAL PARAMETERS
|
20GA Specifications |
20GBSpecifications |
35GSpecifications |
50GSpecifications |
|
|
Robot Cell |
FUNAC |
FUNAC |
FUNAC |
FUNAC |
|
Robot Model |
20iA/20 |
20iA/20 |
20iA/35 |
20iA/50 |
|
Rated Voltage |
380V |
380V |
380V |
380V |
|
Machine Power |
7.6KW |
10.5KW |
11KW |
16KW |
|
Sand Belt Machine Quantity |
1 |
2 |
2 |
2 |
|
Sand Belt Quantity |
4 |
4 |
4 |
4 |
|
Sand Belt Dimensions |
3000mm×4 |
3000mm×4 |
4000mm×4 |
4000mm×4 |
|

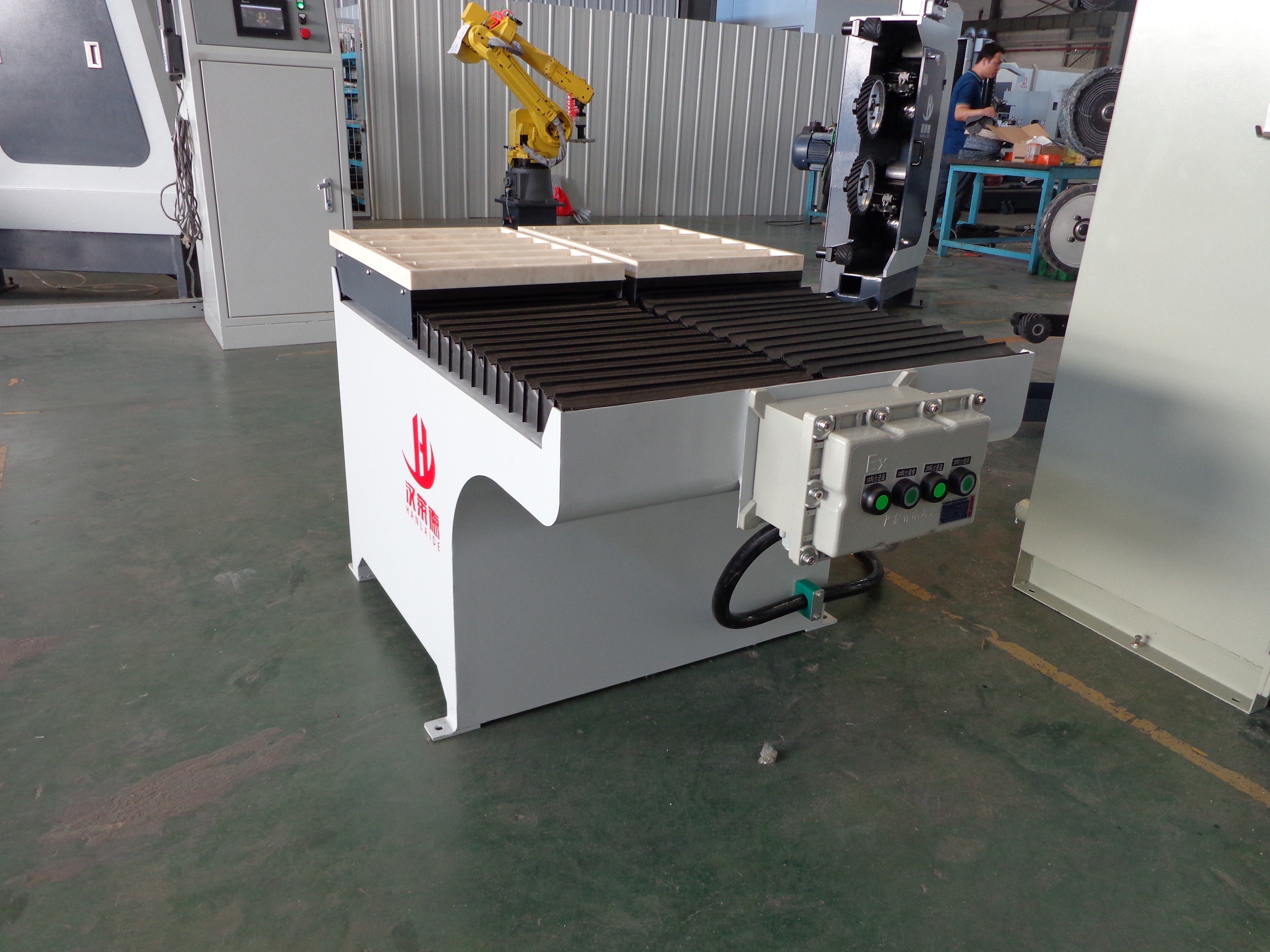

Feed Table |
1 |
1 |
1 |
1 |
Click the link to view video:
https://www.youtube.com/watch?v=kv3QiZceUxI&list=UUMEJdKjNOuRhrF8Kyh8fX_A&index=7
|
|
