| Brand Name: | DZ |
| Model Number: | Robot |
| MOQ: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |
1- Use Fanuc /ABB/KUKA robot
2- Built-in professional polishing program module
3- Programming mode: teaching device programming, using manual mode to simulate artificial polishing and record track, according to this path automatic operation
4- Full digital control, support multi-program storage and use
5- set various functions and parameters in th display touch panel, convenient operation and fault code display function for troubleshooting and maintenance
6- The polishing range of product is 300mm/3KG
7-fully automatic 360 degree polishing
8-fully automatic loading and unloading
9-multi level sand belt, grinding on demand
|

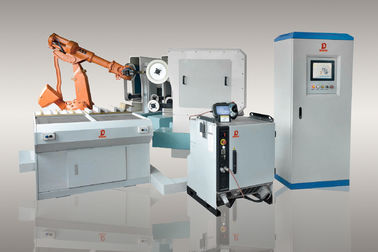

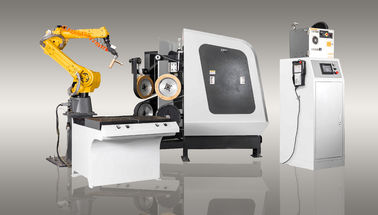

Robot Cell Automatic Grinding Machine Technical Parameters |
||||||
|
Code |
Item |
20GA Specifications |
20GB Specifications |
35G Specifications |
50G Specifications |
Description |
|
1 |
Robot Cell |
FUNAC |
FUNAC |
FUNAC |
FUNAC |
|
|
2 |
Robot Model |
20iA/20 |
20iA/20 |
20iA/35 |
20iA/50 |
|
|
3 |
Rated Voltage |
380V |
380V |
380V |
380V |
|
|
4 |
Machine Power |
10.5KW |
10.5KW |
10.5KW |
1６KW |
|
|
5 |
Sanding Belt Machine Quantity |
1 |
2 |
2 |
2 |
|
|
6 |
Sanding Belt Quantity |
4 |
4 |
4 |
4 |
|
|
|
Sanding Belt Dimensions |
3000mm×４ |
3000mm×４ |
3000mm×４ |
4000mm×４ |
|
|
8 |
Feed Table Quantity of feeding platform |
1 |
1 |
1 |
1 |
|
1. The main shaft of the equipment adopts frequency converter to control the speed, and the polishing wheel speed can be automatically controlled by the robot control system.
2. Sand belt tensioning has adjustment function and sand belt deviation prevention device.
3. Sand belt machine can be combined with the robot to polish different products. It is an automatic grinding robot with good versatility.
Click the link to view video:
https://www.youtube.com/watch?v=kv3QiZceUxI&list=UUMEJdKjNOuRhrF8Kyh8fX_A&index=7
|
|
