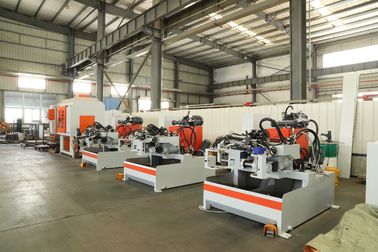

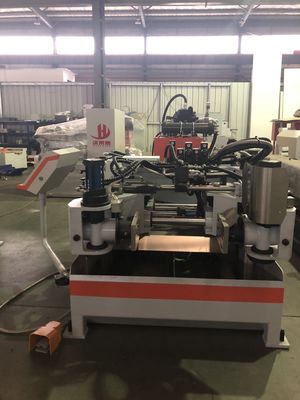

Semi Automatic Gravity Die Casting Machine PLC Control Gravity Casting Pouring Machine

China Semi Automatic Gravity Die Casting Machine PLC Control Gravity Casting Pouring Machine supplier
Semi Automatic Gravity Die Casting Machine PLC Control Gravity Casting Pouring Machine supplier Semi Automatic Gravity Die Casting Machine PLC Control Gravity Casting Pouring Machine supplier

Large Image :  Semi Automatic Gravity Die Casting Machine PLC Control Gravity Casting Pouring Machine

Product Details:

Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE ISO
Model Number: HZ-450

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: wood
Delivery Time: 2 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets/per month
Contact Now
Detailed Product Description
Application: Metal Forming Machine Condition: New
Warranty: 1 Year Type: Casting Machine
After-sales Service Provided: Field Installation, Commissioning And Training, Field Maintena Raw Material: Brass Copper Zinc Aluminum Steel Iron Alloy

Semi Automatic Gravity Die Casting Machine PLC Control Gravity Casting Pouring Machine



Device:



PLC control (Siemens) (the machine is equipped with the function of automatic fault detection and analysis, and the fault analysis of the machine will be displayed on the touch screen in the form of pictures, and the Siemens touch screen).



Operation:



Hydraulic system transmission, water - cooled cooling system.



Casting function:



Side casting, front casting, joint casting,N times casting and other casting methods



Casting speed and Angle can be adjusted:



Side casting Angle range: 0-90 degrees, front casting Angle range: 0-110 degrees, mold immersion Angle range: 0-90 degrees.

Cooling time can be set separately, the cooling times can be set separately, the cooling Angle can be adjusted, and the pre-turning of the cooling mold can be adjusted.

Pouring mode can break up, automatic.

Safety pedal (safety device to protect operators).

Cooling pool water temperature control system (heating system and cooling system (optional for customers).

Main Technical Specifications

# Name Specification
1 Max. Die size Φ450mm
2 Max. Die working distance 450mm
3 Max. Die Weight 130kg
4 Max. Clamping distance ≦250mm
5 Hydraulic Motor 5Hp,6 degree
6 Hydraulic Pressure 4~6Kpa
7 Side Casting Angle 0°~90°
8 Direct Casting Angle 0°~110°
9 Stirring motor 0.75kw,6 degree ×2
10 Cooling tank 850kg
11 Hydraulic oil volume 163L
12 Machine Power 5.5kw
13 Machine Weight 1750kg
14 Dimension(LXWXH) 2250mm×2160mm×1560mm

 Semi Automatic Gravity Die Casting Machine PLC Control Gravity Casting Pouring Machine
