Professional Shell Core Shooter Machine HZ-360 For Valves / Faucets / Hardware

Product Details:
Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE ISO
Model Number: HZ-360
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: wood
Delivery Time: 2 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30sets/per month

Detail Information

Condition: New Warranty: 1 Year
After-sales Service Provided: Field Installation, Commissioning And Training Material: Carbon Steel
Transmission Speed: 72mm/s Feature: Sand Core Shooting Making Machine
High Light:

sand core making machine

,

shell core shooter machine

Product Description

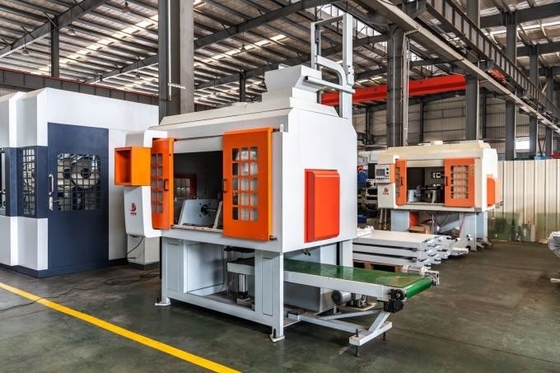

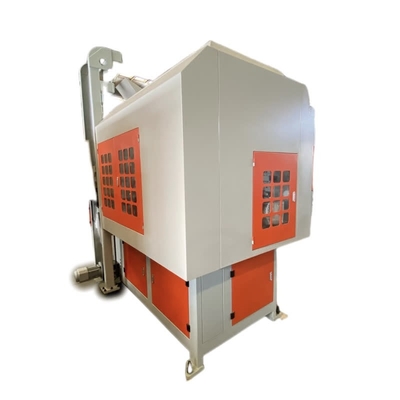

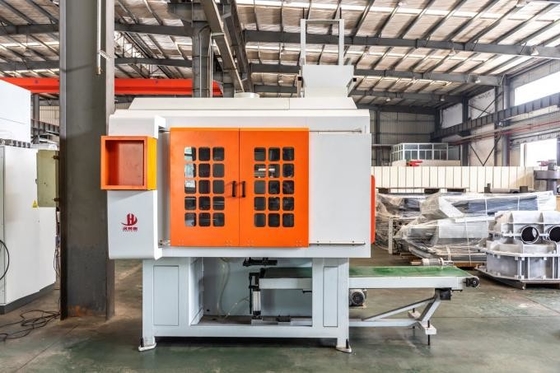

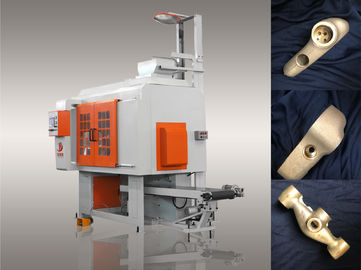

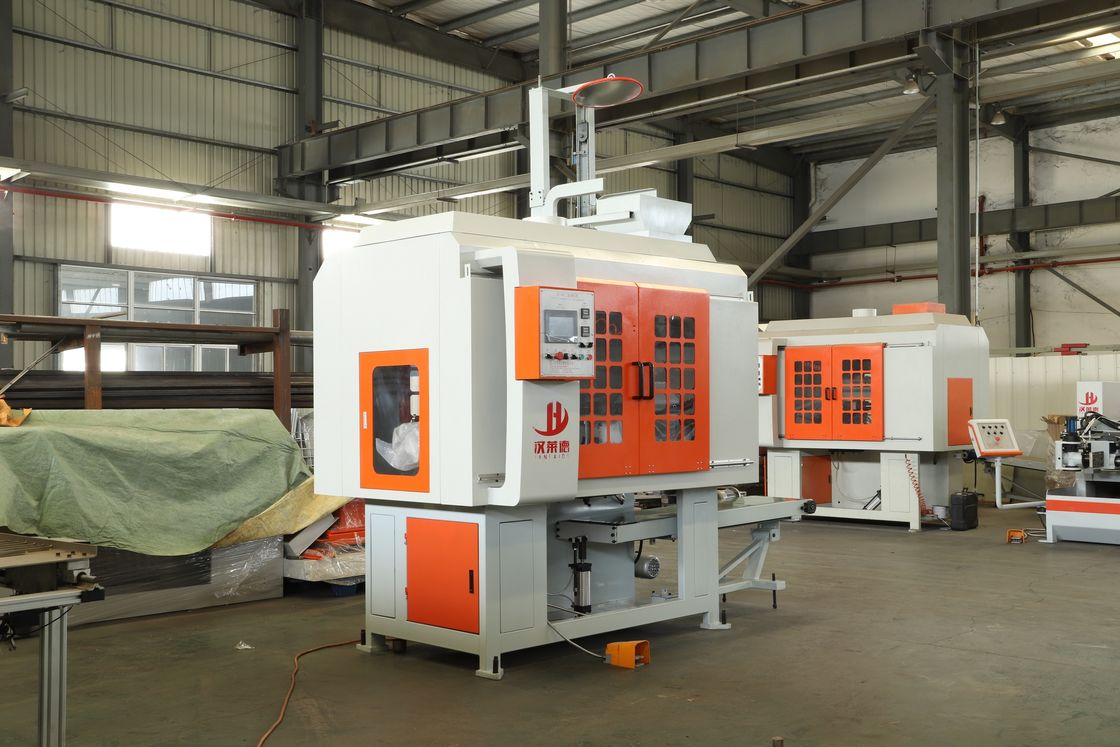

Professional Shell Core Shooter Machine HZ-360 For Valves / Faucets / Hardware





HZ-360 core shooting machine is a kind of vertical parting, semi-automatic, up-turning mould, manual core-taking hot core box core-shooting machine, it is suitable for valves, taps, hardware, hydraulic, pneumatic industry small and medium-sized workpiece variety of core requirements, resin series hot core box sand, coated sand core can be applied.In particular, it can meet the requirements of three-component resin, complex shape and low structural strength hot core box technology in the copper and aluminum casting industry (suitable for molding sand with poor fluidity).

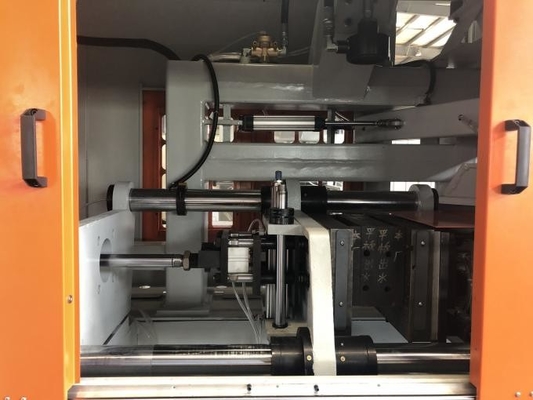

By the sand hopper,shoot sand device,air actuated control system composition.

1)When the swing arm is placed under the bucket seat, the sand core in the bucket falls into the shot pipe through the bucket mouth.When the swing arm is placed at the position of sand ejection, the oil cylinder moves, the sand ejection air head moves downward, and the large spring is pressed to realize the sand ejection action.

2)The whole drive system adopts pneumatic drive device and USES gas pressure to drive the cylinder to complete the whole working process. It has the advantages of noiseless and stable work.

3)Adjust the length of time and the size of the gas pressure to achieve the sand quantitative and auxiliary cylinder, shot sand and other work state adjustment, easy to adjust, reliable work.

Main Technical Specifications

1

Max. Sand Core Weight

9kg

2

Max. Cor Box size(L*W*H)

(450*330*220)mm

3

Heating Plate(L*W)

(400*300)mm

4

Heating Power

9.6kw

5

Clamping stroke of the shooting head

≤30mm

6

Die-opening Stroke

≤300mm

7

Max.Core Pulling Stroke

150mm

8

Conveyor Belt(L*W*H)

(2200*450*100)mm

9

Machine Power

11kw

10

Conveyor Rising Angle

2°~4°

11

Conveyor Speed

72mm/s

12

Machine Dimension(L*W*H)

(3500*1480*3400)mm

13

Lifting Speed(single cycle)

35s

14

Lifting Capacity(Single cycle)

5~10kg

15

Machine weight

2000kg
