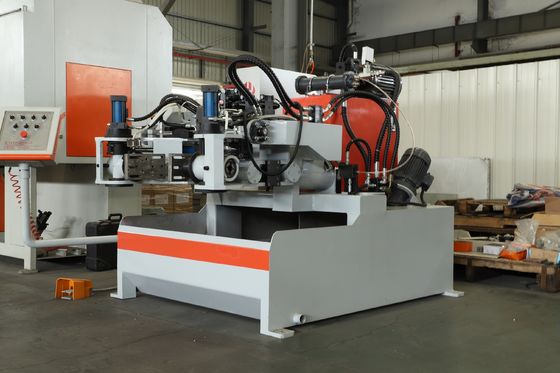

Faucet Foundry Brass Gravity Wheel Weight Die Casting Machine For Brass / Ferroalloy

Product Description

Faucet Foundry Brass Gravity Wheel Weight Die Casting Machine For Brass / Ferroalloy

Main Technical Specifications

Max. Die size:Φ450mm

Max. Die working distance:450mm

Max. Die Weight:130kg

Max. Clamping distance:≦250mm

Hydraulic Motor:5Hp,6 degree

Hydraulic Pressure:4～6Kpa

Side Casting Angle:0°～90°

Direct Casting Angle:0°～110°

Stirring motor:0.75kw,6 degree ×2

Cooling tank:850kg

Hydraulic oil volume:163L

Machine Power:5.5kw

Machine Weight:1750kg

Dimension(LXWXH):2250mm×2160mm×1560mm

Features:

1) the circuit is controlled by PLC, the data is set by touch screen and all hydraulic components are imported.

2) it is suitable for gravity die casting of brass and ferroalloy.

3) it can be direct casting, side casting, twice casting and mixed casting.

4) it is possible to individually adjust the cooling time of the die.

5) it facilitates the decomposition, combination and cleaning of dies.

6) It has two functions of manual and automatic circulation, the counter can be preset, to record the output of each shift.

7) there is a die adjustment space to facilitate the application of different dies, and reduce the requirements for the die size.

8) the machine can store the die casting operation program and set the password accordingly.
