High Efficiency Brass Die Casting Machine 5.5KW 380V Simple Operation

Product Details:
Place of Origin: China(Mainland)
Brand Name: DZ
Certification: SIPO
Model Number: HZ-450
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: wood
Delivery Time: 2weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30sets\per month

Detail Information

Voltage: 380V Power(W: 5.5KW
Dimension(L*W*H): 2250*2160*1560mm Weight: 130KG
Name: Copper Die Casting Machine After-sales Service: Rovided: Engineers Available To Service Machinery Overseas
High Light:

automatic die casting machine


copper die casting machine

Product Description

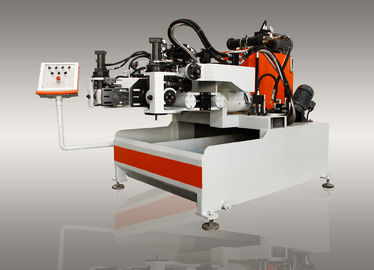

High Efficiency Brass Die Casting Machine 5.5KW 380V Simple Operation



1. Machine Overview


With the vigorous development and diversification of copper processing industry, the production technology of copper processing industry has been constantly updating and improving. In order to meet the production needs, our company specially designed HZ-450 gravity die casting machine according to the principle of gravity casting. It is suitable for Brass gravity casting, with simple operation, novel design and reasonable price.


This machine features:

  1. the circuit is controlled by PLC, the data is set by touch screen and all hydraulic components are imported.
  2. it is suitable for gravity die casting of brass and ferroalloy.
  3. it can be direct casting, side casting, twice casting and mixed casting.
  4. it is possible to individually adjust the cooling time of the die.
  5. it facilitates the decomposition, combination and cleaning of dies.
  6. It has two functions of manual and automatic circulation, the counter can be preset, to record the output of each shift.
  7. there is a die adjustment space to facilitate the application of different dies, and reduce the requirements for the die size.
  8. the machine can store the die casting operation program and set the password accordingly.

New design high efficiency brass die casting machine price gravity casting machine


Maximum combined distance 250mm
Hydraulic pressure 40-60KPA
Hydraulic oil 163L
stroke 20mm travel
Pouring angle 0°-110°
Side pouring angle 0°-90°


High Efficiency Brass Die Casting Machine 5.5KW 380V Simple Operation 0
