Product Description

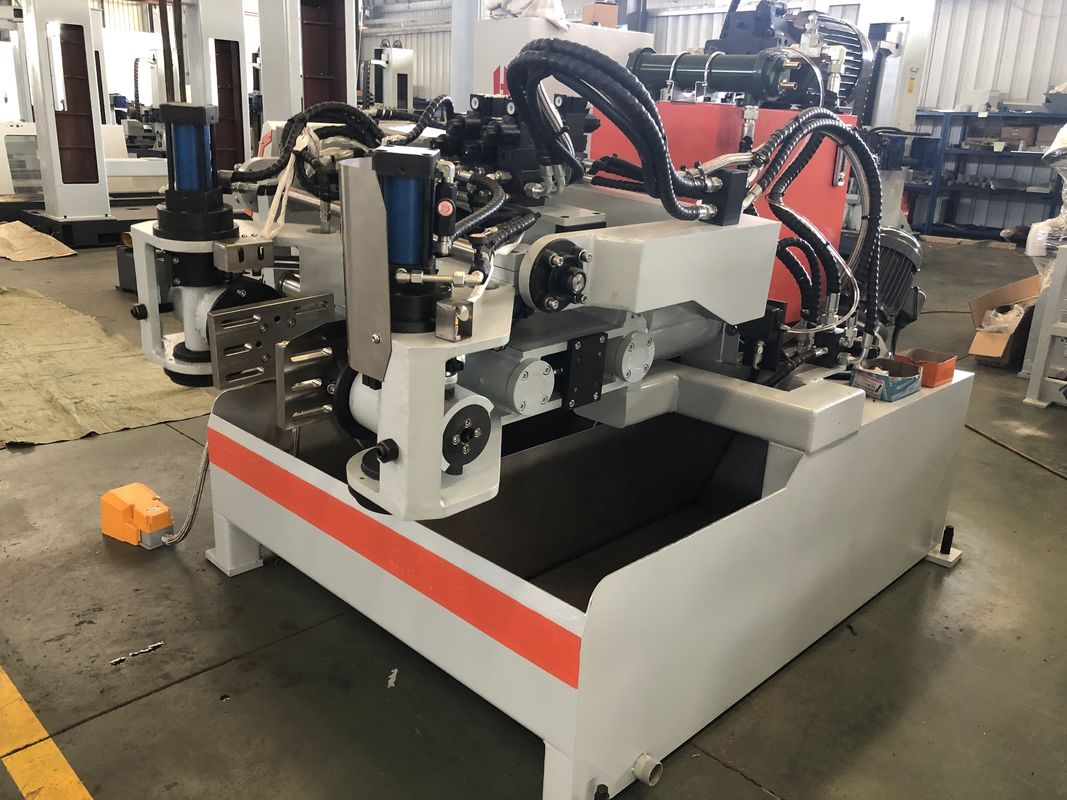

High Precision Brass Die Casting Machine For Zinc Fittings / Automobile Parts

Mechanicture and working principle

1. Left and right water tank are separated, which make them easy to clean and can blend the water and graphite powder evenly. Considering the strong causticity of graphite,the water tank is welded by stainless steel sheet to prolong its useful time.

2. Support cantilever consists of bottom beam, support rotation axis, axis seat and adjustment of casting angle. Die opening and closing, overturn, rise-fall of left and right model matching racks is completed by the support cantilever

3. Hydraulic tank is installed between the electric cabinet and oil pump. It is the drive of hydraulic pressure part of the whole machine used to reclaim hydraulic oil and cool the heat produced during the motion of hydraulic pipeline.

4. Rise and fall---die opening----die matching----overturn----die dipping in revolution----push out the clean die----rotation and casting will be carried out one by one

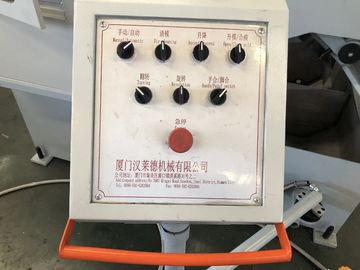

5. Electrical control system mainly adopts the original binding electrical components of Japan Mitsubishi Ohm Dragon, including: PLC, touch screen, transformer, current transformator, voltmeter, ammeter, revolving switch, emergency stop switch, AC contactor, heat relay, air switch(380V/220V), photoelectric sensor, control box(manual/automatic), rotation, die opening and closing, model cleaning, overturn, rise and fall, overturn emergency stop. All actions will be carried out with the operation control system.
