Multifunction CNC Polishing Machine / Brass Metal Polishing Machine For Stainless Steel

Good quality Automatic Polishing Machine for sales
Good quality Automatic Polishing Machine for sales
I'm Online Chat Now

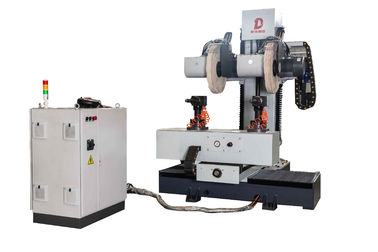

Multifunction CNC Polishing Machine / Brass Metal Polishing Machine For Stainless Steel

China Multifunction CNC Polishing Machine / Brass Metal Polishing Machine For Stainless Steel supplier
Multifunction CNC Polishing Machine / Brass Metal Polishing Machine For Stainless Steel supplier Multifunction CNC Polishing Machine / Brass Metal Polishing Machine For Stainless Steel supplier Multifunction CNC Polishing Machine / Brass Metal Polishing Machine For Stainless Steel supplier Multifunction CNC Polishing Machine / Brass Metal Polishing Machine For Stainless Steel supplier

Large Image :  Multifunction CNC Polishing Machine / Brass Metal Polishing Machine For Stainless Steel

Product Details:

Place of Origin: China(Mainland)
Brand Name: DZ
Model Number: NC-62

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wood
Delivery Time: 30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/per month
Contact Now
Detailed Product Description
After-sales Service Provided: Overseas Third-party Support Available Spindle Motor Power: 6*5.5KW
Color: Gray Warranty: 1 Year
Name: Stainless Steel Olishing Machine

Multifunction CNC Polishing Machine / Brass Metal Polish Wheel Machine For Stainless Steel





Features:



The main electrical control system adopts 6-axes DZ servo CNC system control (main control screen capture positioning, coordinate digital setting, speed digital setting, software over travel protection, program function modularization, simple idiot style programming, etc.)
In mechanical structure, servo motor is used to drive the worm reducer gear to control the motion of the polishing unit head and workpiece (U, V, W axial direction) and the servo motor drives the slide table (X, Y, Z axial).
The machine has 2 polishing unit heads, which can polish 2 work pieces in one cycle time; Production output up to 4PCS / 30 ~ 50 seconds (depending on the product and process);

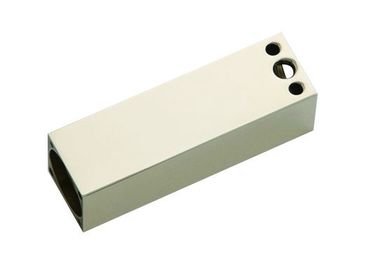

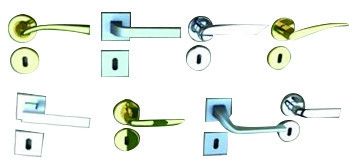

It is suitable for complex shape handle products, pipe products and other regular shape products. 2. Total power is 16.25KW, including: 2 polishing unit heads with 5.5KW power motor each, XYZVW axis compensation motor 0.75KW, U axis compensation motor 1.5KW.



TECHNICAL PARAMETERS



Code

Item

Specifications-2station

1

Dimensions (L*W*H)

3000*3100*2900mm

2

Machine Power

16.5KW

3

Rated Voltage

380V

4

Max. Diameter of polishing wheel

600mm

5

Min. Diameter of polishing wheel

400mm

6

X-Axis travel (mm)

1200

7

Y-Axis travel (mm)

1100

8

Z-Axis travel (mm)

700

9

U-Axis travel (mm)

±90°

10

V-Axis travel (mm)

±360°

11

W-Axis travel (mm)

±360°

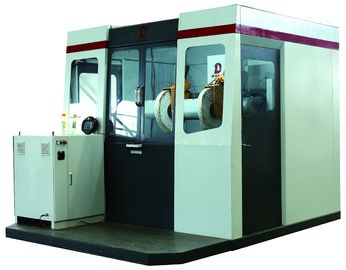

Layout



Multifunction CNC Polishing Machine / Brass Metal Polishing Machine For Stainless Steel

Multifunction CNC Polishing Machine / Brass Metal Polishing Machine For Stainless Steel
