| Brand Name: | DZ |
| Model Number: | NC-64 |
| MOQ: | 1unit |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |

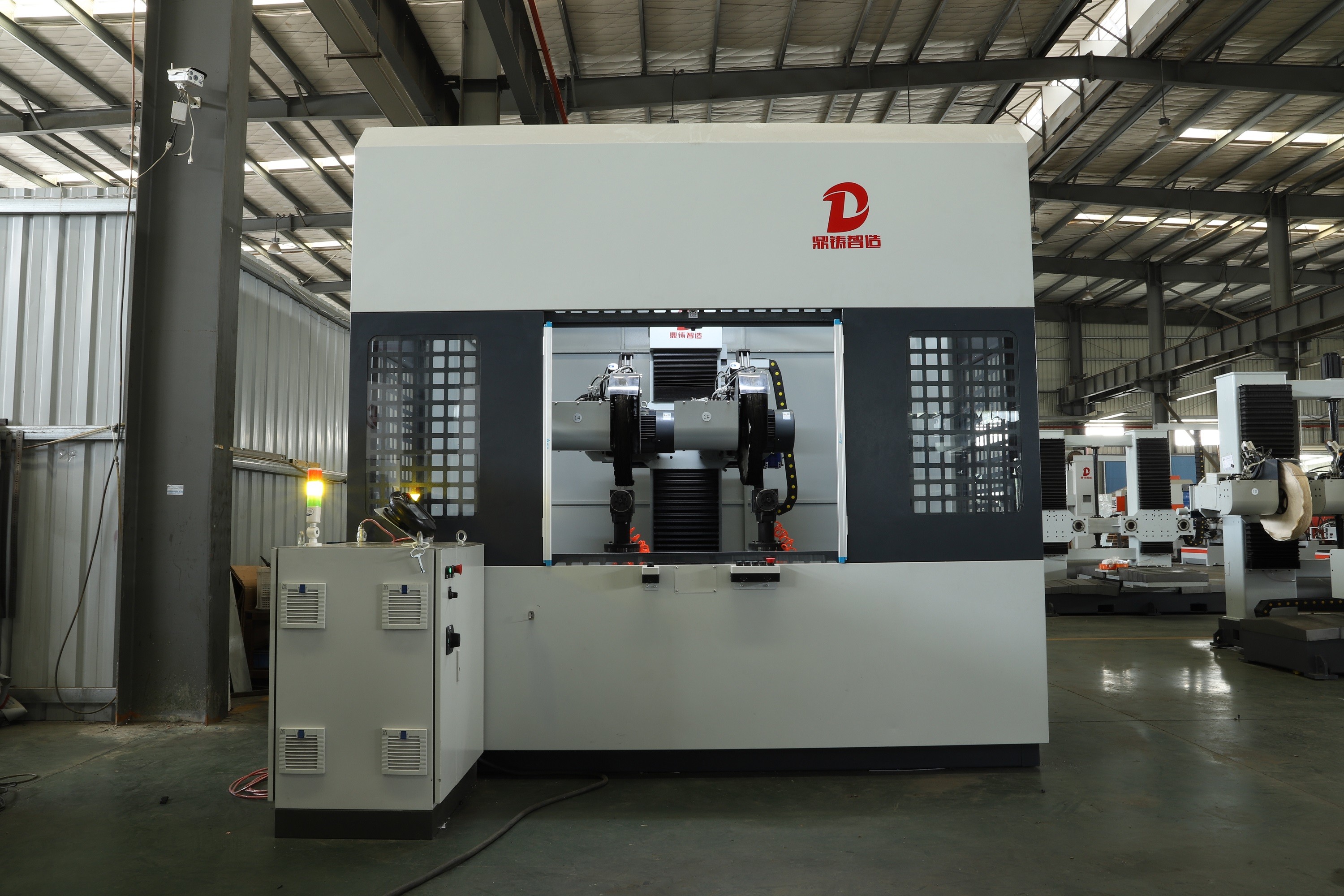

Professional Automatic Polishing Machine For Brightening Kitchenware Grinding
Feature:
Automatic polishing machines are suitable for automating the polishing of parts with irregular configurations and complex shapes. Their design and performance make them of universal application with presence in multiple sectors, mainly the faucet and bathroom fitting industry.

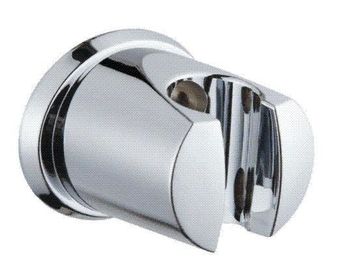

be mainly for brass alloy and zinc alloy metal products, especially on faucets, valve bodies and sanitary fittings and accessories.To fulfill the different capacity requirement of customers, we have 2 station and 4 stantion models for customer options.
TECHNICAL PARAMETERS
|
Code |
Item |
Specifications-2station |
Specifications-4station |
|
1 |
Dimensions (L*W*H) |
3000*3100*2900mm |
4400*3400*2900 |
|
2 |
Machine Power |
16.5KW |
35KW |
|
3 |
Rated Voltage |
380V |
380V |
|
4 |
Max. Diameter of polishing wheel |
600mm |
600mm |
|
5 |
Min. Diameter of polishing wheel |
400mm |
400mm |
|
6 |
X-Axis travel (mm) |
1200 |
1200 |
|
7 |
Y-Axis travel (mm) |
1100 |
1100 |
|
8 |
Z-Axis travel (mm) |
700 |
700 |
|
9 |
U-Axis travel (mm) |
±90° |
±90° |
|
10 |
V-Axis travel (mm) |
±360° |
±360° |
|
11 |
W-Axis travel (mm) |
±360° |
±360° |
