Easy Operation Automatic Metal Polishing Machine For Auto Spare Parts

Good quality Automatic Polishing Machine for sales
Good quality Automatic Polishing Machine for sales
I'm Online Chat Now

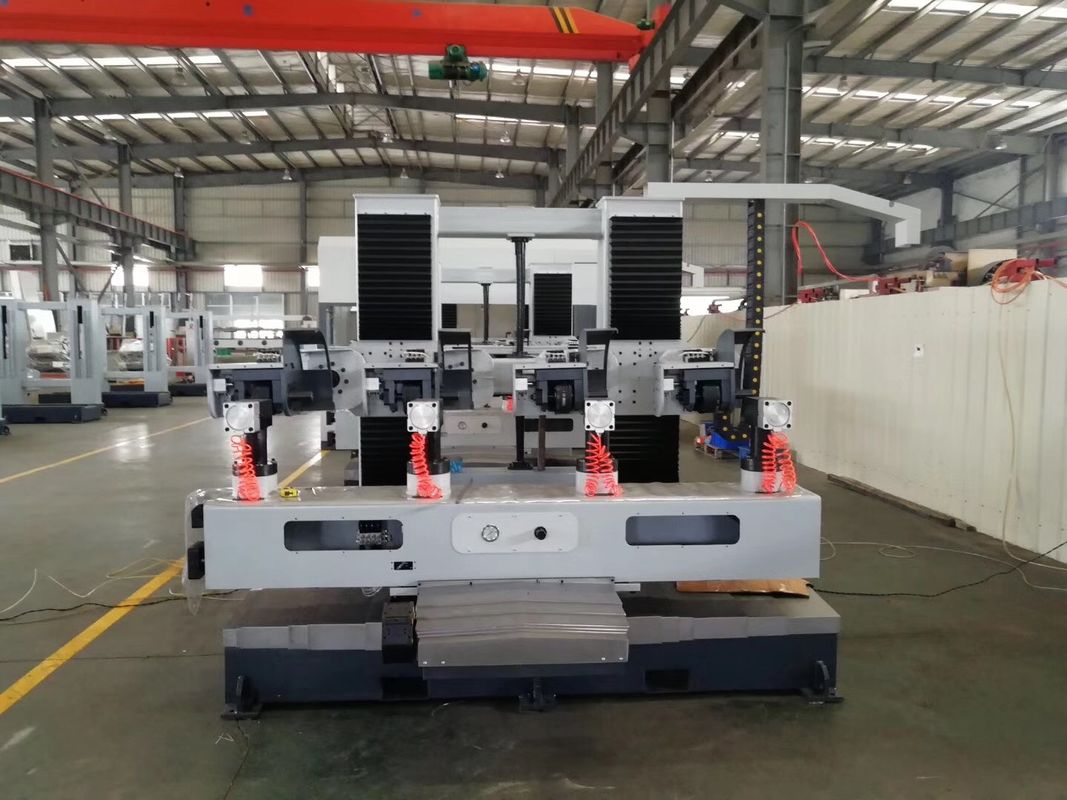

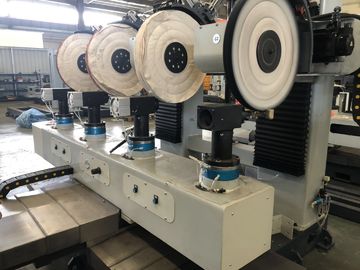

Easy Operation Automatic Metal Polishing Machine For Auto Spare Parts

China Easy Operation Automatic Metal Polishing Machine For Auto Spare Parts supplier
Easy Operation Automatic Metal Polishing Machine For Auto Spare Parts supplier Easy Operation Automatic Metal Polishing Machine For Auto Spare Parts supplier

Large Image :  Easy Operation Automatic Metal Polishing Machine For Auto Spare Parts

Product Details:

Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE ISO
Model Number: NC64-L

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: US $110000/unit
Packaging Details: wood
Delivery Time: 30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Set/Sets per Month
Contact Now
Detailed Product Description
Color: Gray Warranty: 1 YEAR
After-sales Service: Engineers Available To Service Machinery Overseas Name: Automatic Buffing Machine
COmditon: New Application: Metal

Automatic polishing machine for Auto spare parts Locks and door handles All kids of metals and jewelry accessory

Feature:

1. The automatic polishing machine is an exclusive polishing system consisting 4 manipulators with of 6 axises rotary; Multiple stations simultaneous operation high flexibility and high product efficiency.

2. The control system adopts PROMAX motion control technology from Italy,stable propeert,high control accracy.

3. Software: Programmable, with protable handed device, contains manually mode to simulate the workmanship polishing and record the track; 4 4. Polishing pressure and wear compensation control performance: When the polishing cloth wheel is worn out, the system can detect that the torque becomes smaller and automatically the compensation in all direction

5. Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed and compensation;

6. Program setting of add polishing wax:free setting of wax spraying time and frequency according to the characteristics of product.choice of slid wax or liquid wax

7. Full digital control, Can store 50 programs.Programs can be saved and invoked at any time.

8. CN/EN language display on Touch Panel. to set all parameters for an easy operation;fault codes display and alarm pages for quick troubles shooting and repair.

Easy Operation Automatic Metal Polishing Machine For Auto Spare Parts

TECHNICAL PARAMETERS

No. Item Parameters
1 Dimensions (L*W*H) 5000*3400*3000(L*W*H)
2 Machine Power 35KW
3 Rated Voltage 380V
4 Max. Diameter of polishing wheel 600mm
5 Min. Diameter of polishing wheel 400mm
6 X-Axis travel (mm) 1200
7 Y-Axis travel (mm) 1100
8 Z-Axis travel (mm) 700
9 U-Axis travel (mm) ±90°
10 V-Axis travel (mm) ±360°
11 W-Axis travel (mm) ±360°



Photos of polished products



Easy Operation Automatic Metal Polishing Machine For Auto Spare Parts

Easy Operation Automatic Metal Polishing Machine For Auto Spare Parts

Easy Operation Automatic Metal Polishing Machine For Auto Spare Parts
