Name: Tapping and Drilling Machine For Metal Brass Stainless steel Aluminum Workpieces
Brand: Xiamen DingZhu Intelligent Equipment Co.,Ltd
SKU: TA-12
Availability: InStock

Brand Name:	DZ
Model Number:	TA-12
MOQ:	1 set
Price:	Negotiable
Packaging Details:	wood

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Spindle Turret Tool Changing Time:

0.8s/180°

Rotating Fourth Axis:

YT200R

Tool Changing Motor:

750W

Spindle Revolution:

0-3000rpm

Lifting Z-acis Max. Travel (screw):

300mm

Dimension：L*W*H:

2300×1600×1900mm

Machine Net Weight KG:

3500KG

Max. Tapping(copper Parts):

50×3mm

Supply Ability:

3 sets per month

Highlight:

metal tapping and drilling machine

brass drilling machine with warranty

stainless steel tapping machine

Product Description

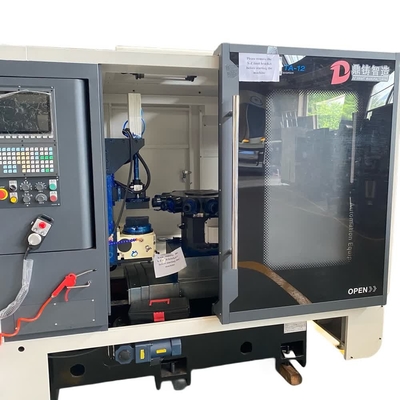

Tapping and Drilling Machine For Metal Brass Stainless Steel Aluminum Workpieces

Precision Drilling And Tapping Machine For Metal Workpieces

Designed for valve manufacturing industry and other metal processing applications.

Key Features

Flexible design adapts to various product specifications and varieties
Simple structure with low manufacturing and maintenance costs
High production efficiency with low energy consumption

Technical Specifications

Machine Type	Automated Tapping and Drilling Machine
Spindle Taper	BT40
Machine Weight	3500KG
Max Drilling Capacity (Copper)	60mm through-hole diameter

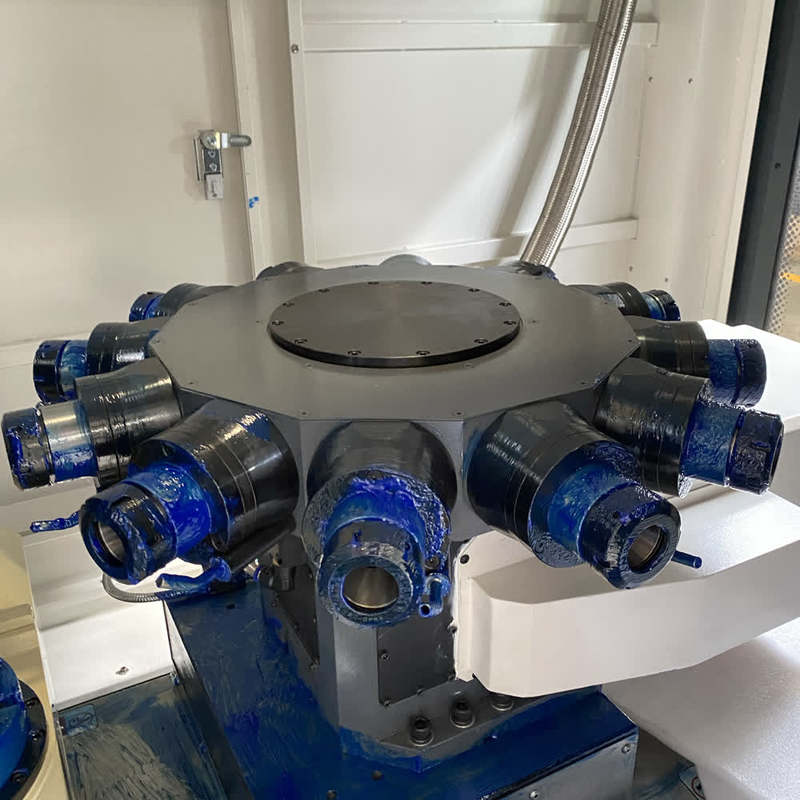

Rotary Turret	12 Axis
Tool Changing Motor	750W
X-axis Travel	450mm
X/Y/Z Axis Speed	30m/min
Positioning Accuracy	0.008mm
Rotating Fourth Axis	YT200R
Spindle Motor Power	5.5KW
Z-axis Travel	300mm
Y-axis Travel	500mm
Spindle Speed	0-3000rpm
Max Tapping Capacity (Copper)	50×3mm
Tool Changing Time	0.8s/180°
Work Table Size	300×300mm
Machine Dimensions	2300×1600×1900mm (L×W×H)

Industrial Applications

Ideal for valve manufacturing, plumbing hardware, automotive/motorcycle parts, non-ferrous metal die-casting, electronics components, and other industries requiring precision thread hole processing.

Packaging & Shipping

Our CNC Tapping and Drilling Machine is securely packaged to ensure safe delivery:

Durable, high-quality packaging materials protect against shipping damage
Each machine undergoes pre-shipment inspection
Domestic shipping within 1-2 business days
International shipping in 5-10 business days
Optional insured shipping available for all orders

Frequently Asked Questions

Q: What is the Brand Name of CNC Tapping and Drilling Machine?

A: The Brand Name is DZ.

Q: What is the Model Number of CNC Tapping and Drilling Machine?

A: The Model Number is TA-12.

Q: Where is the Place of Origin?

A: Manufactured in China.

Q: What are the key features?

A: High precision, fast operation, durable construction, and user-friendly controls.

Q: What materials can be processed?

A: Capable of processing metal, plastic, wood, and various other materials.
