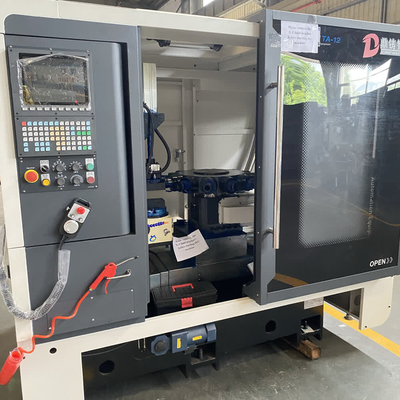

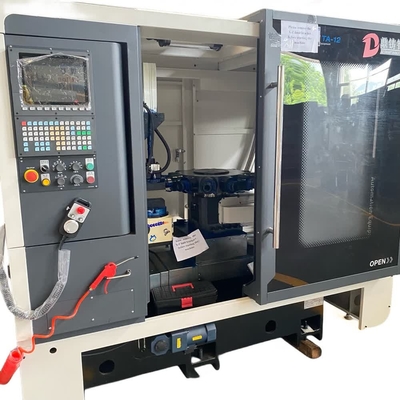

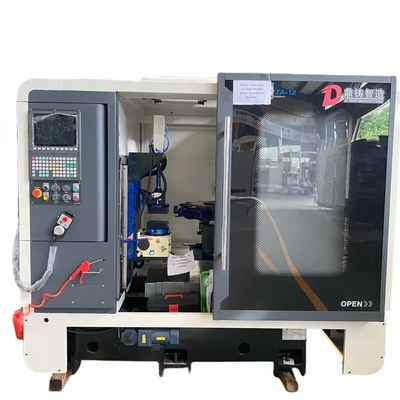

From brass blanks to sanitary fittings: Drilling tapping machine efficiently completes the drilling and tapping process for faucets and valves
Detail Information
Material:
Metal
Rotary Turret:
12 Axis
Taper Specification:
10000/1200/15000/1800
Power Source:
Electric
Tool Magazine Capacity:
24pcs
Max. Tapping Diameter:
M6
Tapping Depth:
25mm
Spindle Taper:
BT40
Spindle Revolution:
0-3000rpm
Color:
Blue
Frequency:
50/60Hz
Air Pressure:
≥6kg/c M³
Working Table Size:
300*300mm
Tool Changing Motor:
750W
Drilling Depth:
50mm
Highlight:
brass sanitary fittings drilling machine
,faucet tapping and drilling machine
,valve drilling and tapping machine
Product Description
Industrial Thread Machining System: Drilling And Tapping Excellence.
Features:
- It has a certain degree of flexibility and can adapt to the requirements of a certain range of product specifications and varieties.
- Simple structure and low cost.
- High production efficiency and low energy consumption.
Technical Parameters:
| Parameter | Value |
| Computer-Numerical-Control Drilling Machine | Automated Tapping and Drilling Machine |
| CNC Tapping Machine | BT40 Spindle Taper |
| Machine net weight | 3500KG |
| Drilling Capacity (Copper Parts) through-hole | external diameter 60mm |

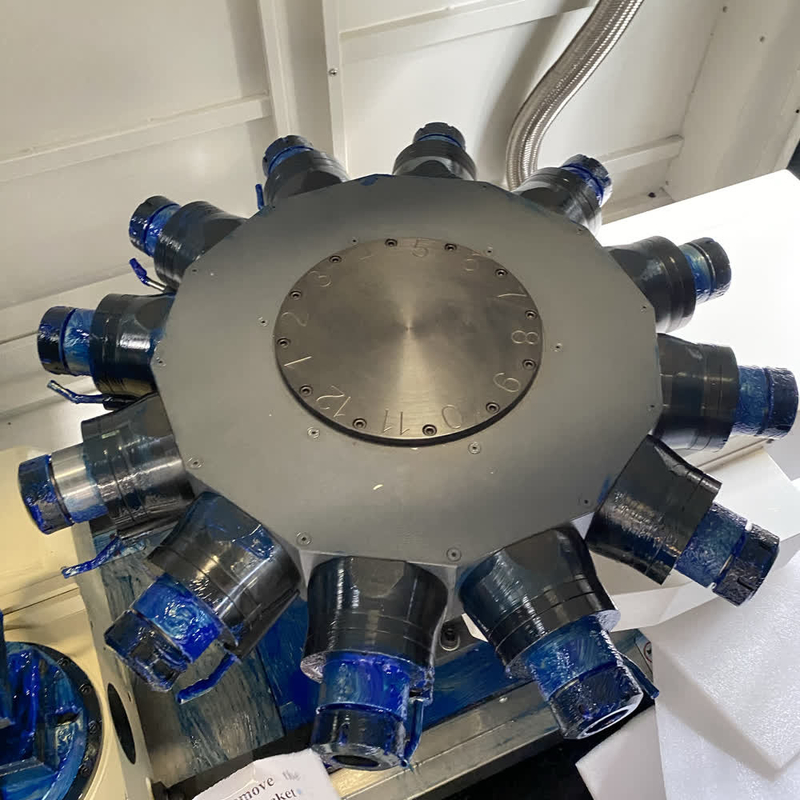

| Rotary Turret | 12 Axis |
| Tool Changing Motor | 750W |
| Base X-acis Max. travel (screw) | 450mm |
| X/Y/Z axis Max. Speed | 30m/min |
| X/Y/Z axis repeat positioning accuracy | 0.008mm |
| Rotating fourth axis | YT200R |
| Servo spindle motor power | 5.5KW |
| Lifting Z-acis Max. travel (screw) | 300mm |
| Saddle Y-axis Max. travel(screw) | 500mm |
| Spindle revolution | 0-3000rpm |
| Spindle taper | BT40 |
| Max. tapping (copper parts) | 50×3mm |
| Spindle turret tool changing time | 0.8s/180° |
| Working table size | 300*300mm |
| Dimension:L×W×H | 2300×1600×1900mm |
Applications:
Valve manufacturing industry, plumbing hardware industry, auto motorcycle parts, non-ferrous metal die-casting industry, electronics and parts processing and other industries processing thread holes.
Packing and Shipping:
Packaging and Shipping for CNC Tapping and Drilling Machine (New):
- The machine will be securely packaged with foam padding inside an appropriate cardboard box.
- The box will be sealed shut with tape.
- The box will be labeled with the appropriate shipping information.
- The box will be placed in an appropriate shipping container.
- The shipping container will be secured with appropriate straps.
- The shipping container will be labeled with the appropriate shipping information.
FAQ:
Q1: What is the Brand Name of this CNC Tapping and Drilling Machine?
A1: The Brand Name of this CNC Tapping and Drilling Machine is DZ.
Q2: What is the Model Number of this CNC Tapping and Drilling Machine?
A2: The Model Number of this CNC Tapping and Drilling Machine is TA-12.
Q3: Where is this CNC Tapping and Drilling Machine produced?
A3: This CNC Tapping and Drilling Machine is produced in CHINA.
Q4: What are the features of this CNC Tapping and Drilling Machine?
A4: This CNC Tapping and Drilling Machine features high-precision, high-speed, reliable performance and a long service life.
Q5: What is the application of this CNC Tapping and Drilling Machine?
A5: This CNC Tapping and Drilling Machine is mainly used for tapping and drilling various materials.
