China Manufacturer Brass Faucet Sand Core Shell Foundry Machine For Sand Molding Equipment

Brand Name:	DZ
Model Number:	HZ-360
MOQ:	1set
Price:	Negotiable
Packaging Details:	wood
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ISO

Supply Ability:

30sets/per month

Highlight:

Sand Core Shell Foundry Machine

Faucet Sand Core Shell Foundry Machine

Product Description

Detail Information
Condition:	New	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Overseas Service Center Available
Certification:	ISO,CE	Weight:	2000kg
Color:	Customized	Voltage:	220V / 380V / 415V
Function:	Making Sand Core	Warranty:	1 Year
Sorting Accuracy:	≥99.99%

Product Description

Brass Pipe Fittings Electronic Control Sand Core Shooter Machine Valve Core Shooting Machine

Feature

1. human-machine interface and imported high quality electronic control and pneumatic components/hydraulic device to ensure accurate and reliable control and easy operation.
2. there are three modes: manual, single action and automatic.
3. the shooting port is 70 degrees to the sand, away from the high temperature area, so that the perforation is easy to clean manually .
4. The machine is equipped with integral moving mechanism of the base, which can make the base move along the X and Y axes, so that the perforation of the opposite mold into the sand hole more convenient and accurate.
5. The movable die is equipped with the core pulling rack to meet the special requirements of the mold.

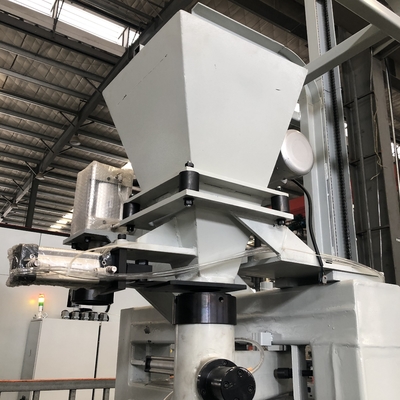

6. The angle of the quicksand in the sand storage bucket reaches 70 degrees and is equipped with a vibrating motor. It is suitable for the use of collapsible core sand with poor fluidity in the copper casting and aluminum industry.
7. With mold adjustment space, it is convenient to assemble different molds and reduce the requirements for the die size.

#	Item	Specification
1	Max. Weight of Sand Core	8kg
2	Max. Size of Core Box ( L x W x H)	(450330220)mm
3	Heating Plate ( L x W)	(400*300)mm
4	Heating Power	9.6kw
5	Downward Stroke of Ejection Head	≤30mm
6	Stroke of Mold Opening	≤300mm
7	Max. Stroke of Core Remove	150mm
8	Conveyor ( L x W x H)	(2200450100)mm
9	Total Power	13.2kw
10	Rising Angle of Conveyor	2°~4°
11	Speed of Transportation	72mm/s
12	Machine Size ( L x W x H)	(350014803400)mm
13	Speed of Lift (Single Time)	35s
14	Weight of Lift ( Single Time)	10kg
15	Total Weight	2000kg
16	Hydraulic pressure	50Kg/cm²

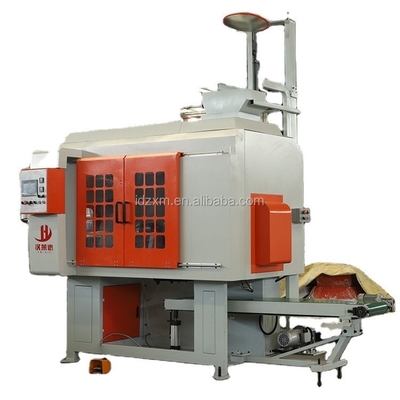

China Manufacturer Brass Faucet Sand Core Shell Foundry Machine For Sand Molding Equipment 0

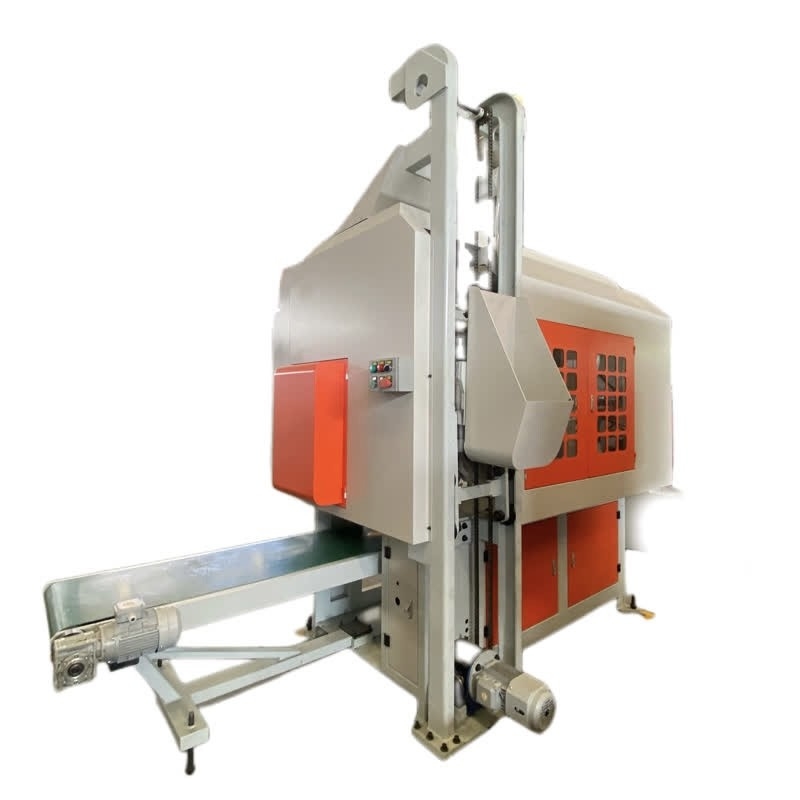

China Manufacturer Brass Faucet Sand Core Shell Foundry Machine For Sand Molding Equipment 1

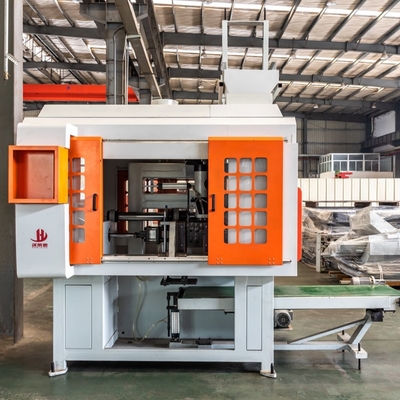

China Manufacturer Brass Faucet Sand Core Shell Foundry Machine For Sand Molding Equipment 2

FAQ:

Q1. Where is your factory located? How can I visit it?

A: Our factory is located in Xiamen city, Fujian province, China.

Q2. Are you produce the machine’s specific parameters according to the samples?
A: Yes, we produce the sand core shooting machine you want by your samples or technical drawings. Usually, one machine has different molds and fixtures like a metal polishing machine, die casting machine.

Q3. What is your sample service?
A: We can supply the sample testing that which client wants to produce if we have a ready machine in stock, but the customers have to pay the sample shipping cost.

Q4. What is the MOQ of your machine?
A: Normally our MOQ is 1 set.

Q5. Do you test all your machine before delivery?
A: Yes, we have 100% test before delivery.

Q6: How do you make our business a long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
