Automatic Flexibility Brass Handle Metal Fixtures Polishing Machine Customizable Program For 4 Stations
| Brand Name: | DZ |
| Model Number: | HLD-50E |
| MOQ: | 1 |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C,T/T,Western Union |
Detail Information
Place of Origin:
CHINA
Certification:
CE ISO
Delivery Time:
20 days
Supply Ability:
30sets per month
Highlight:
Brass handle CNC Polishing Machine
,4 station CNC Polishing Machine
Product Description
Automatic 4-Station Brass Handle Metal Polishing Machine
This advanced automatic polishing system features customizable programming for high-efficiency metal finishing of brass handles and other fixtures. With 4 simultaneous working stations, it delivers precision polishing with uniform quality and high production output.
| Weight: | 4000KG | Voltage: | 380V/50Hz |
| Condition: | New | Warranty: | 1 Year |
| Use: | Machining, Deburring, Grinding, Polishing | Type: | Angle Polisher |
Key Features: Metal Automatic Polishing Machine, Brass Handle Polishing Machine, 380V Metal Polishing Machine
Machine Characteristics
- 4 manipulators with 6-axis rotary systems for high flexibility and production efficiency
- Italian PROMAX motion control technology for stable performance and high accuracy
- Teaching programming with portable handheld device for manual simulation and automatic operation
- Automatic polishing pressure and wear compensation control
- Linear speed compensation for consistent performance
- Programmable wax spraying system for solid or liquid compounds
- Fully digital control with storage for 50 programs
- CN/EN language touch panel display with fault code diagnostics
Four-Station Advantages
- Precision polishing with uniform quality and no part deformation
- High production capacity with four simultaneous working stations
- Full automation including waxing system
- Quick fixture and polishing mop replacement
- Reduced consumption of fixtures, mops, and polishing compounds
- Temperature-controlled polishing system
- Interactive teach system for easy programming
- Multi-angle polishing capability in any position
- High profitability with single operator managing multiple machines
Technical Specifications
| Code | Item | Specifications |
|---|---|---|
| 1 | Dimensions (L*W*H) | 4400*3400*2900 |
| 2 | Machine Power | 35KW |
| 3 | Rated Voltage | 380V |
| 4 | Max. Diameter of polishing wheel | 600mm |
| 5 | Min. Diameter of polishing wheel | 400mm |
| 6 | X-Axis travel (mm) | 1100 |
| 7 | Y-Axis travel (mm) | 900 |
| 8 | Z-Axis travel (mm) | 700 |
| 9 | U-Axis travel (mm) | ±90° |
| 10 | V-Axis travel (mm) | ±360° |
| 11 | W-Axis travel (mm) | ±360° |
| 12 | Max.speed X axis | 20m/min |
| 13 | Max.speed Y axis | 20m/min |
| 14 | Max.speed Z axis | 20m/min |
| 15 | Max.speed U axis | 30°/sec. |
| 16 | Max.speed V axis | 30°/sec. |
| 17 | Max.speed W axis | 30°/sec. |

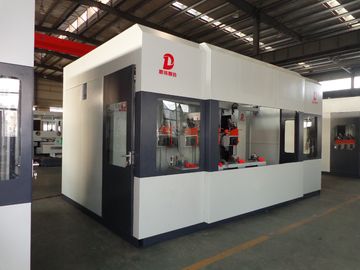

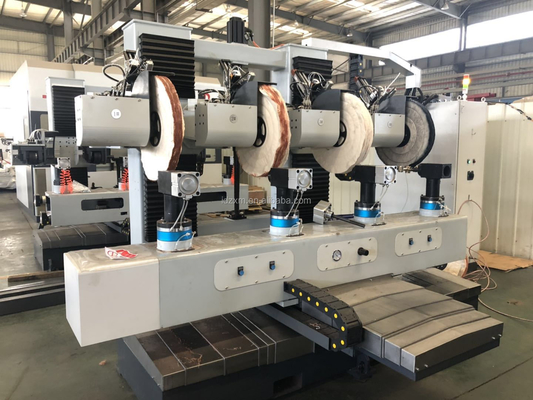

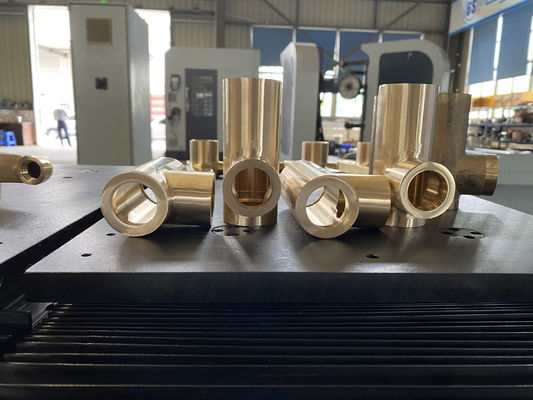

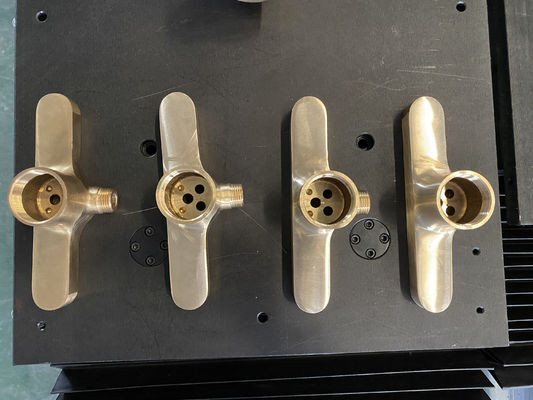

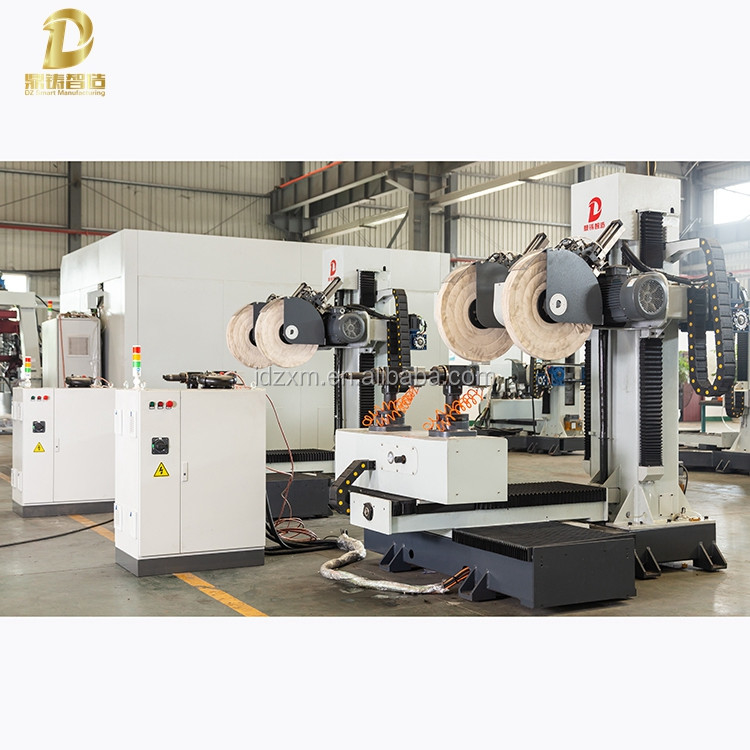

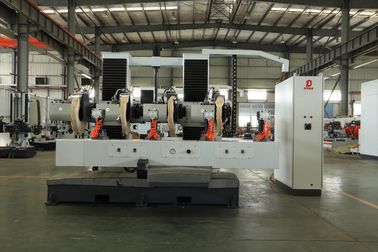

Product Images
Frequently Asked Questions
Can you arrange installation and commissioning?
Yes, we can arrange installation and commissioning at the buyer's expense.
Can you provide production education?
Yes, we can arrange production education and training at the buyer's expense.
What is the warranty period?
One year warranty with lifetime repair service available (charges apply after warranty).
What is the lead time and delivery time?
Large cargo typically 15-25 working days, depending on quantity, delivered according to agreed schedule.
After-sales Service: Engineers available for overseas machinery service, video technical support, online support, field maintenance and repair service, and field installation.
